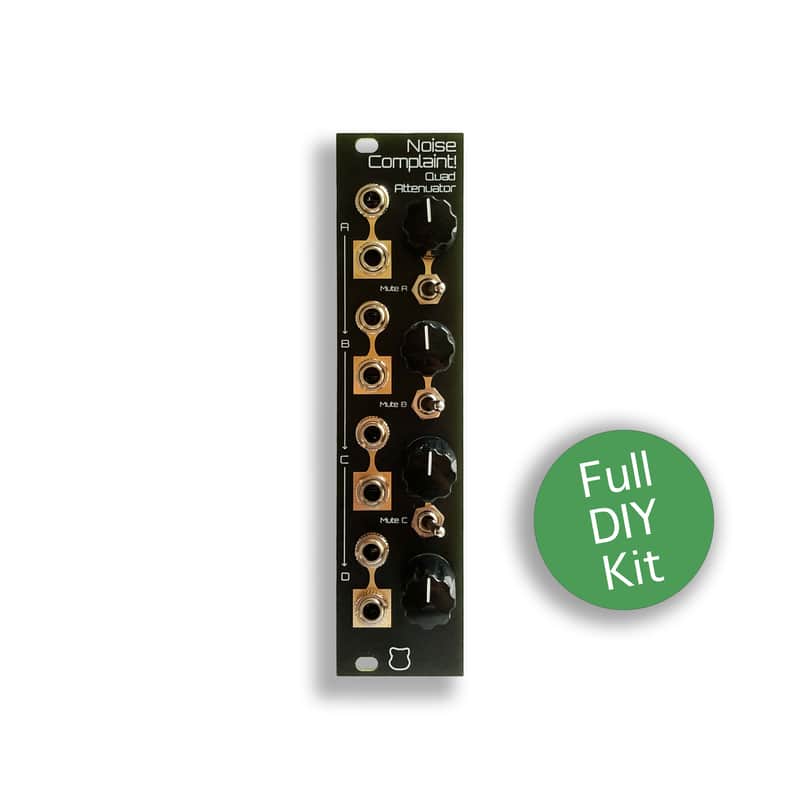

SetonixSynth Noise Complaint Quad Normalized Attenuator - Eurorack Mute 3U 6hp Full DIY Kit

The Noise Complaint! is a passive utility module which provides a bank of four passive attenuators which can be used with audio or CV. Each of the Noise Complaint’s four inputs are normalized (left to right), so that with nothing patched to a channel’s input it can be used as an attenuated mult, distributing up to four versions of one input signal and opening up myriad control possibilities, such as use of Channel One as a Macro control over the three other outputs. Channels 1-3 also have muting switches for performance-friendliness and preservation of settings.

The Noise Complaint! has proven to be a very useful module for attenuation of all kinds, and adds a nice-feeling, sturdy set of performance controls to what is often a cluttered rack full of densely-packed jacks and tiny attenuation knobs.

This listing is for a full DIY kit with all parts needed to build a functioning module. You will need your own solder and tools to build the module.

Current draw: 0mA @ +12V, 0mA @ -12V (Passive)

Eurorack width/depth: 6 hp, 25 mm
