Description:

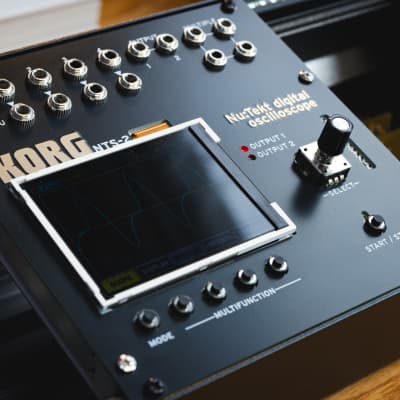

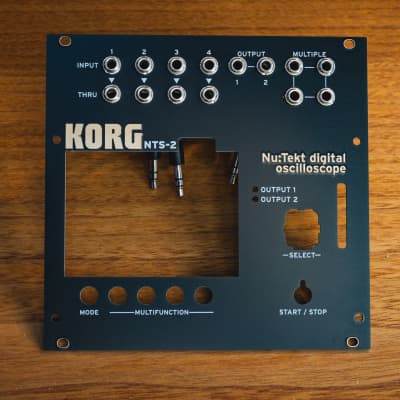

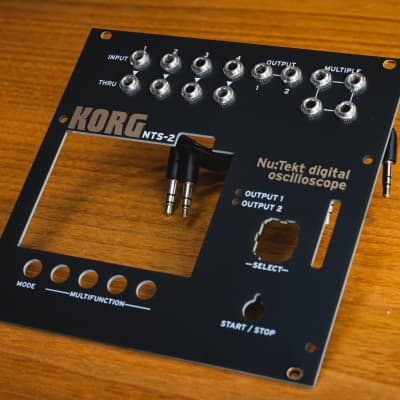

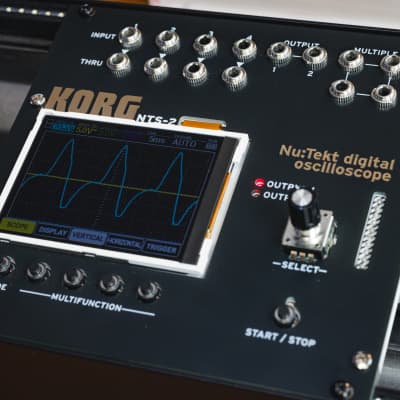

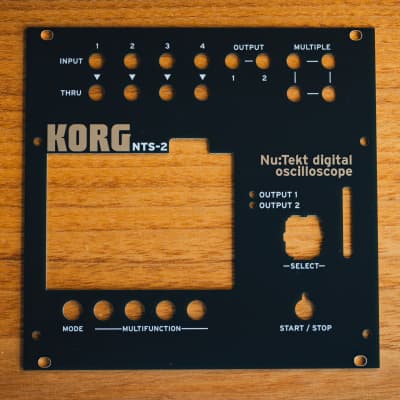

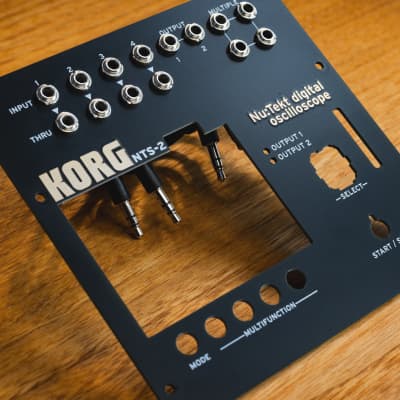

Introducing the Korg NTS-2 Eurorack Conversion Kit – a seamless solution to integrate your Korg NTS-2 Oscilloscope into your Eurorack Modular setup. Our hand-crafted faceplate grants you access to 4 inputs, 4 thru ports, two outputs, and an additional set of 1-3 multiples. Designed with connectivity and versatility in mind, this faceplate integrates with the NTS-2's sleek design while allowing you to effortlessly route signals, synchronize with other modules, and explore new creative dimensions of your sound.


TIP: The 3.5mm connectors in this batch might feel slightly tight. To make patching smoother in the future, we recommend plugging and unplugging the cables a few times before installing your NTS-2.

Features:

Converts Korg Nu:Tekt NTS-2 to standard 3U Eurorack Format

Direct bolt-on kit

Plug & Play TRS cables - no soldering required

1-to-3 Passive Multiples

4 Dedicated Inputs

4 Individual Thru Ports

Access to Outputs 1 / 2

Custom Power Supply and Power Activation Component included

Includes:

(1) Korg Nu:Tekt NTS-2 Faceplate (Black)

(6) Pre-Installed TRS Cables

(1) 16 Pin Bus Board to Down Angle USB-C Cable

(1) Power Activation Component

(4) M3 x 8mm Black Phillips Screws


Installation PDF and Video Guide Available

Dimensions:

26 HP

Height: 128.5mm

Width: 132.08mm

Depth: Skiff-friendly - 33mm

Knowledge Base:

  • POWER: 16 pin bus board required to supply 5v for the Korg NTS-2. If your rack's power supply only offers 10 pin, you can use a standard USB-C cable and wall charger to power the NTS-2 externally.
  • POWER ACTIVATION COMPONENT: The  NTS-2 can run on batteries or with USB-C 5v power. If using our power supply, we provide a custom Power Activation Component that must be installed on your device. This will ensure your device turns on when it receives power from the busboard. It’s as simple as removing two screws, placing the component, and screwing it back in.
  • NO POWER: If your NTS-2 does not turn on, try to slightly loosen the top 4 screws, push the body of your NTS-2 down while holding the faceplate and screw it back in. This will ensure the power button is being compressed by the Power Activation Component.

Korg NTS-2 Not Included.

Moog Knob Not Included.

Case / Additional Modules Not Included.

Sold as-is - No Returns

These faceplates undergo production in a PCB factory before being assembled by hand in Asheville, NC. We prioritize the highest quality control measures for each product. However, it's important to acknowledge that minor blemishes or imperfections may arise on the faceplates as an inherent outcome of the manufacturing process.

DISCLAIMER: By purchasing and using this conversion kit, you agree that the manufacturer and associated parties are not liable for any damages or malfunctions that may occur during installation or usage. It is your responsibility to follow instructions carefully and ensure compatibility. Unforeseen circumstances or user error may lead to unintended consequences. Seek professional assistance if needed. By proceeding with the purchase, you release the manufacturer from any liability. Your satisfaction and safety are important to us, and we believe our conversion kit will enhance your NTS-2 experience when used correctly.
