Erogenous Tones Structure -Eurorack Video Synthesizer

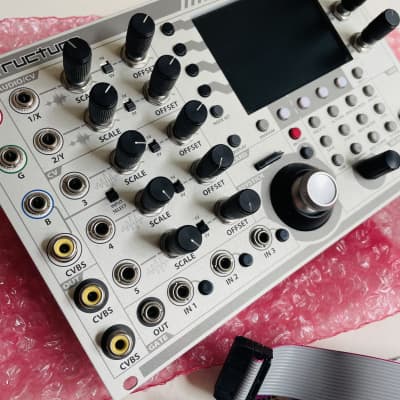

Good as new.

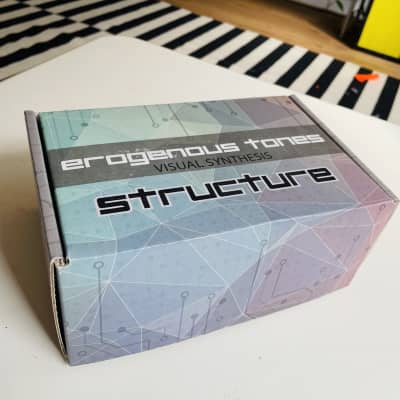

Comes with the usual accessories in the original box.

Ships from my studio in the Netherlands. Shipping worldwide, DM me for a quote.

If you have any questions please send me a message.

Best,

Detlef

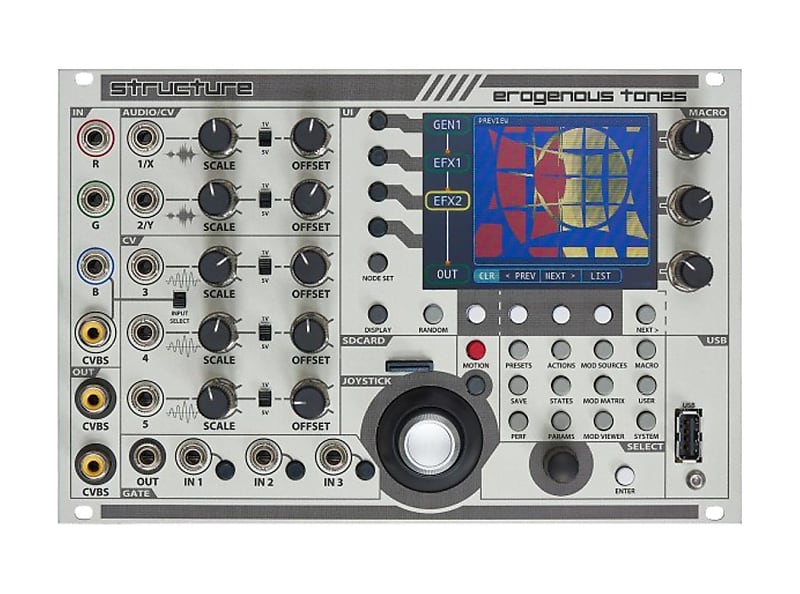

Structure is the first video synthesis module made by Erogenous Tones. It is a visual generator module that is based internally on an OpenGL GLSL node based platform. It uses the concept of node structures to push visuals through the system. The module features one video input and two mirrored outputs, both composite, selectable to NTSC or PAL 480i. Many CV inputs are available to modulate a variety of controls on each node.

Structure contains a video input system that you can select between two formats, Composite video or LZX 1V RGB (with sync applied to rear of module). The Composite input does full color decoding. Input video can be mixed through effects, with other generators, effected with audio, etc. Input video can be NTSC or PAL, 480i. Structure auto detects and converts video inputs.

The module contains two mirrored video outputs, both composite, selectable to NTSC or PAL 480i.

Two audio rate CV inputs can be used with audio nodes to generate audio based visuals, effects moved by audio waveform, XY plotting of audio inputs, or just used at low frequency CV inputs when not using audio nodes.

Three CV rate inputs can be used to modulate a variety of controls on each node.

All CV can be set independently to 1V or 5V expected input. Each CV has a scale control and a positive offset control for fine tuning incoming CV voltages.

A joystick can be used to modulate controls in real time, or used to record motion information that is played back in a loop. In addition, the joystick has a metal hat for nice weighted movement.

Structure can also generate 3D graphics, animate properties of the 3D objects, and allow you to map and node type to the texture of the 3D objects (like video).

The module features three gate inputs, usable by local buttons as well.

Three macro knobs on the top right, allow for global changes to the output node which are user configurable.

The module has a USB input, which you can attach MIDI interfaces, MIDI keyboards, controllers, etc, or even a standard PC keyboard or numeric keypad. You can assign actions or state changes to trigger from any of these input sources.

The SDCARD on the backside stores system, and the one on the front side stores user presets, images, configurations, objects, custom shaders, etc.

Structure has a full color 320×240 preview screen which also provides lots of feedback.
