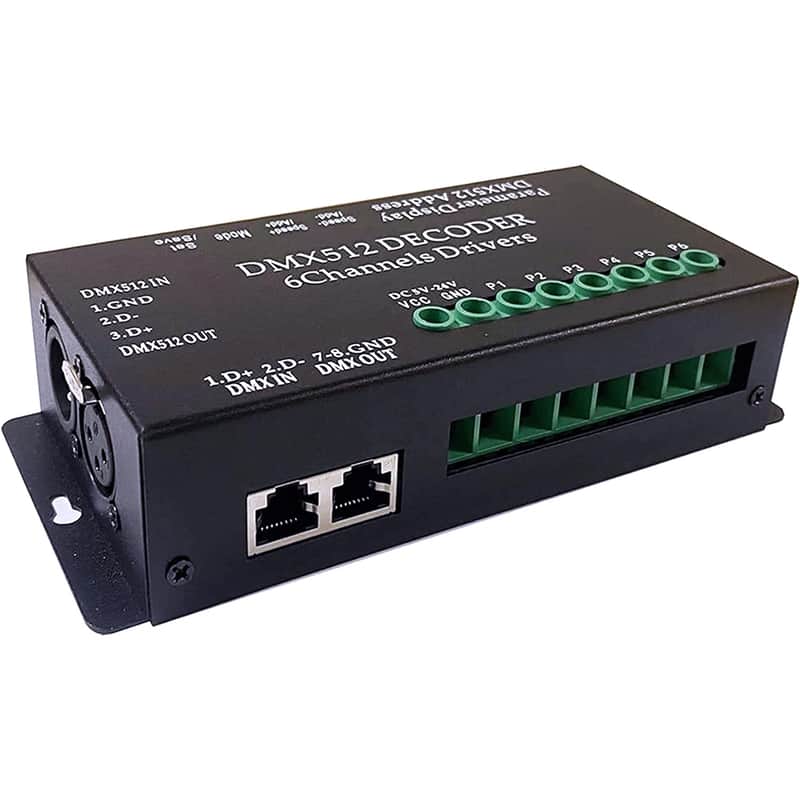

5V-24V 6 Channel DMX512 Decoder LED Controller, for RGBRGB

Promoted similar listings

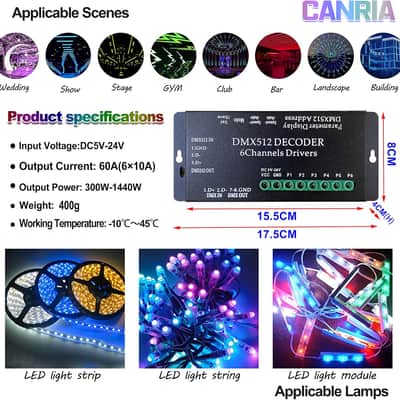

Input voltage : DC5V-24V
Channel quantity : 6pcs channel
Output current : 10A/Channel
Size: 40*80*160MM
Weight : 0.4KG

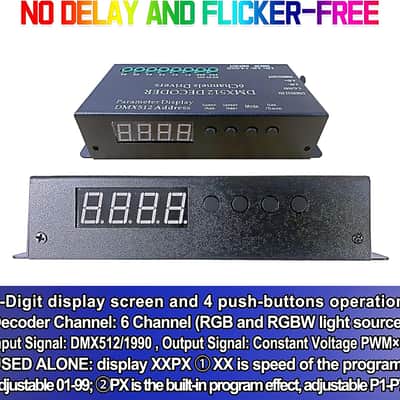

4 digit display screen. When connected to the DMX signal console, the decoder will display stands for three numbers and rang from 001 to 512.
If not connected to DMX signal console, The decoder will display its built-in program. Display screen will show XXPX, The left XX shows speed.
The right X shows the built-in program sequence.
It has 7 built-in programs from P1-to P7. Its display speed rang from 01 to 99.
The decoder can be set through 4 buttons. When it is connected to DMX console, press + or - button to adjust the DMX address.
You can adjust what address you need, then press SET button to save address setting.
It will automatically be your saved address when connected to DMX console next time.
Without connecting the DMX console, the decoder will display its built-in programs. Through pressing + or - button, you can adjust display speed of programs.
The program can be changed by pressing MODE button.
Pressing SET can save programs and display speed. When you power on the decoder next time, it will automatically be your saved built-in programs and display speed.
Decoder is designed to convert the universal standard /990 signal into signal to control the RGB or RGBW or RGBWWW or RGB+RGB Flex Strips
High power output, 6 output channels, 10A per channel

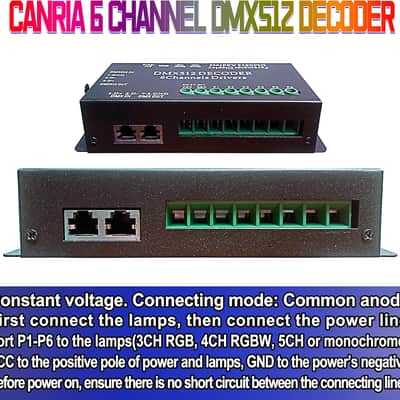

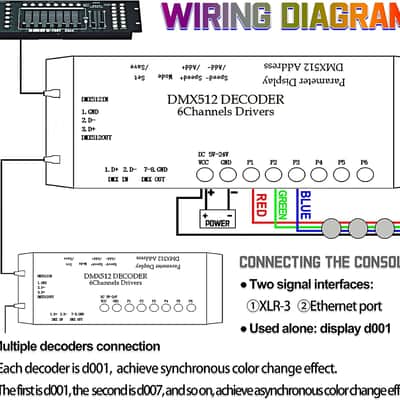

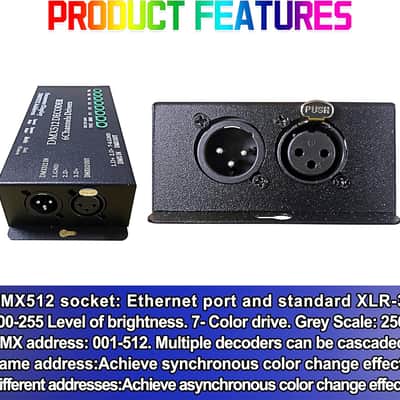

DMX pass through and in/out connector for daisy chain configurations and RJ45 network port

Condition	Brand New (New) Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more
Brand	Unbranded
Model	5V-24V 6 Channel DMX512 Decoder LED Controller, for RGBRGB RGBW RGBWW RGBWWW LED Strip Light, 4-Digit Display
Finish	Multicolour
Categories	Lighting
