JBL 4722N Audiophile Speakers (Horn + dual 15” LFD) w/Custom Grilles + Wood Stands!

*** LOCAL PICK UP ONLY ***

JBL 4722N — END GAME HIFI SPEAKERS!

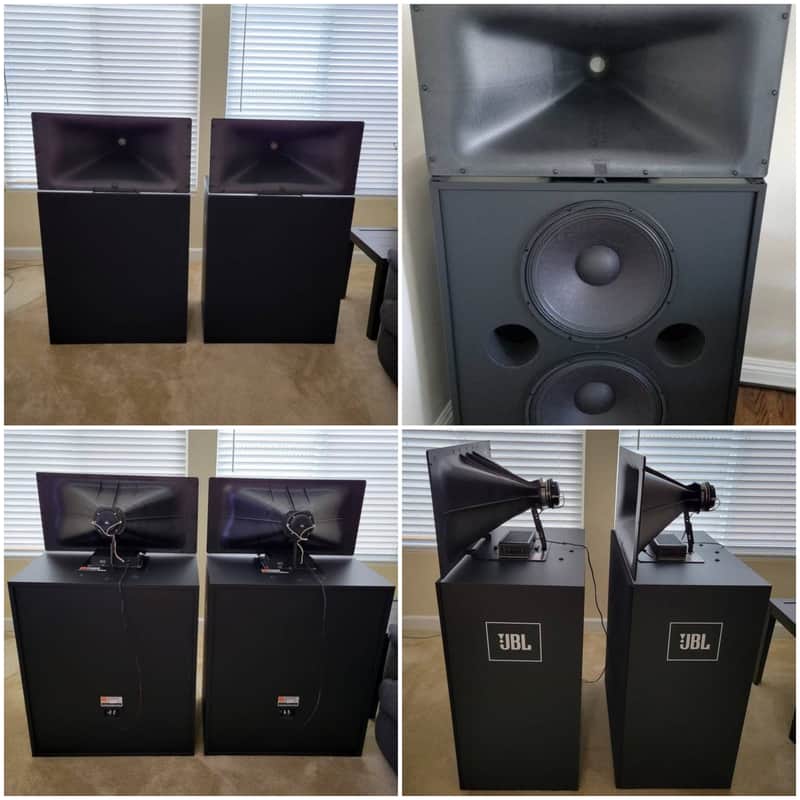

Up for sale: (1) pair of JBL 4722N speakers with HUGE horns!

Sequential/matched pair (serial #: P3100-00565 and P3100-00566)

Astounding 104db sensitivity! Can be driven effortlessly by virtually any amplifier…low wattage tube amp to high power solid state monoblocks!

These are stunning speakers, but I am going in a different direction. These 4722N’s are a current JBL Professional model and in excellent condition.

Custom made grilles are included as shown in pictures. These speakers have passive crossovers from the factory and do not require bi-amping.

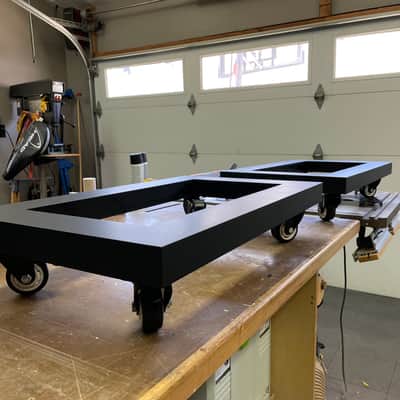

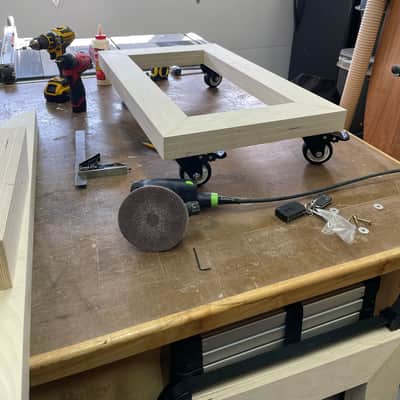

Custom made platform stands with heavy duty casters included as shown in photos.

****Plug and play, single amp!****

Local pick up in Van Nuys, CA (91405)

Note: these speakers are heavy. Make sure to you have the appropriate vehicle and personnel to help you load and transport them. You are responsible for moving these — I cannot help due to heath concerns.

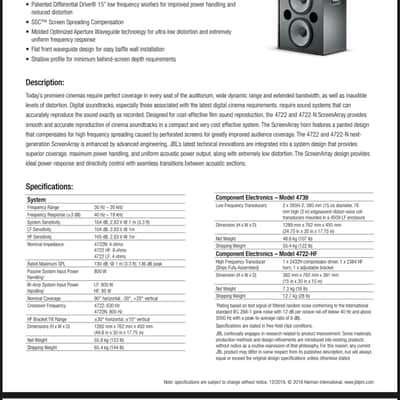

More info here:

Key Features:
• Two-way ScreenArray® design for maximum output, optimal coverage and minimum
distortion
• Available for bi-amplified operation (model 4722) or fully passive operation (model 4722N)
• Large format 3” neodymium, titanium diaphragm, high frequency compression driver
• Patented Differential Drive® 15” low frequency woofers for improved power handling and
reduced distortion
• SSC™ Screen Spreading Compensation
• Molded Optimized Aperture Waveguide technology for ultra-low distortion and extremely
uniform frequency response
• Flat front waveguide design for easy baffle wall installation
• Shallow profile for minimum behind-screen depth requirements

Specifications:
System Frequency Range 30 Hz – 20 kHz
Frequency Response (±3 dB) 40 Hz – 19 kHz
System Sensitivity 104 dB, 2.83 V @ 1 m (3.3 ft)
LF Sensitivity 104 dB, 2.83 V @ 1m
HF Sensitivity 105 dB, 2.83 V @ 1m
Nominal Impedance 4722N: 4 ohms
4722 HF: 8 ohms
4722 LF: 4 ohms
Rated Maximum SPL 130 dB, @ 1 m (3.3 ft), 136 dB peak
Passive System Input Power Handling 800 W
Bi-Amp System Input Power
Handling
LF: 800 W
HF: 85 W
Nominal Coverage 90° horizontal, -30°, +20° vertical
Crossover Frequency 4722: 630 Hz
4722N: 800 Hz
HF Bracket Tilt Range ±30° horizontal, ±10° vertical
Dimensions (H x W x D) 1265 mm x 762 mm x 450 mm (49.8 in x 30 in x 17.75 in)
Net Weight 55.8 kg (123 lb)
Shipping Weight 65.4 kg (144 lb)
Component Electronics – Model 4739
Low Frequency Transducers 2 x 265H-2, 380 mm (15 in) diameter, 76
mm high (3 in) edgewound ribbon voice coil
transducers mounted in a 4509 LF enclosure
Dimension (H x W x D) 1289 mm x 762 mm x 450 mm
(34.75 in x 30 in x 17.75 in)
Net Weight 48.6 kg (107 lb)
Shipping Weight 55.4 kg (122 lb)
Component Electronics – Model 4722-HF
High Frequency Transducer
(Ships Fully Assembled)
1 x 2432H compression driver, 1 x 2384 HF
horn, 1 x adjustable bracket
Dimension (H x W x D) 382 mm x 762 mm x 381 mm
(15 in x 30 in x 15 in)
Net Weight 7.3 kg (16 lb)
Shipping Weight 12.7 kg (28 lb)
1Rating based on test signal of filtered random noise conforming to the International
standard IEC 268-1 (pink noise with 12 dB per octave roll-off below 40 Hz and above
5000 Hz with a peak-to-average ratio of 6 dB).
Specifications are stated in free-field (4pi) conditions.
