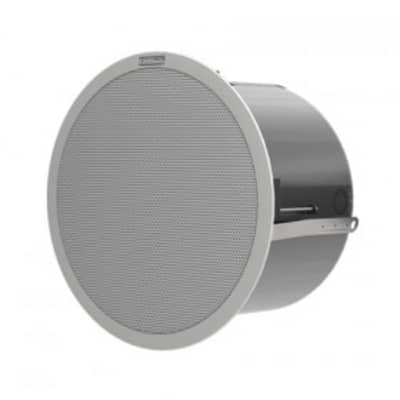

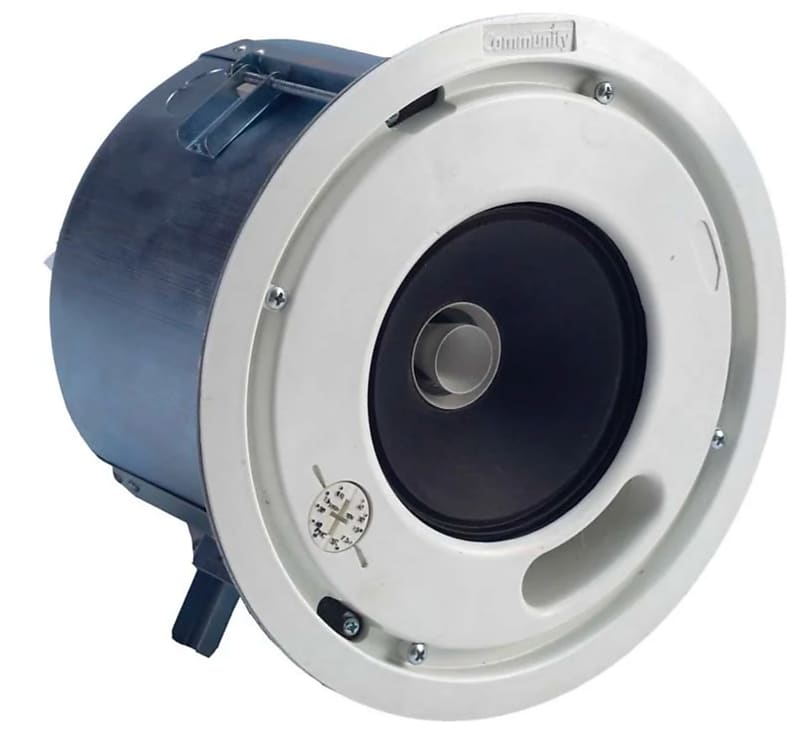

Community D5 - White Ceiling Speaker Coaxial 8Ω, 70 Volt with Bracket for Installation

ommunity D5 Features:

• High intelligibility with exceptional uniform coverage
• Consistent, wide dispersion up to 16 kHz
• True coaxial loudspeakers with HF compression drivers
• Tru-Phase™ high-frequency waveguide
• Patented Carbon Ring Cone Technology™
• Spring loaded Drop-Stop™ installation assistant tabs support the back can on the included rails and C-ring to simplify installation
• Uniquely designed tile bridge support rails and snap-on C-ring support plates prevent sag
• Twist-Assist™ loudspeaker face retainer tabs for fast and easy installation
• 3/4" and 1" knock-outs on the sides of the back can
• External loop-through Euroblock connectors
• Rear cover with integrated cable clamp (strain relief) and optional conduit knockout
• Selectable 8 Ohm or 70V/100V operation
• Back can and face-only packages available
• Five year warranty

Community D5 Specifications:

• Loudspeaker Type: Two-way, full-range, coaxial ceiling loudspeaker, 8 Ohm or 70V/100V operation
• Operating Range: 65 Hz - 22 kHz
• Frequency Response: 80 Hz - 20 kHz (+/- 5 dB)
• Max Input Ratings (8 Ohm): 100W continuous, 250W program, 28 volts RMS, 63 volts momentary peak
• Transformer Taps:
• • 70V: 60W, 30W, 15W, 7.5W and low impedance
  • 100V: 60W, 30W, 15W
• Distortion:
• • 500 Hz, 10% Full Power: 2.28% 2nd Harmonic, 0.43% 3rd Harmonic
  • 500 Hz, 1% Full Power: 1.12% 2nd Harmonic, 0.42% 3rd Harmonic
  • 2 kHz, 10% Full Power: 1.14% 2nd Harmonic, 0.35% 3rd Harmonic
  • 2 kHz, 1% Full Power: 0.30% 2nd Harmonic, 0.15% 3rd Harmonic
  • 8 kHz, 10% Full Power: 0.48% 2nd Harmonic, 0.01% 3rd Harmonic
  • 8 kHz, 1% Full Power: 0.16% 2nd Harmonic, 0.03% 3rd Harmonic
• Sensitivity (1W/1m): 93 dB SPL (125 Hz to 12.5 kHz 1/3 octave bands); 91 dB SPL (250 Hz to 4 kHz speech range)
• Maximum Output: 113 dB SPL / 119 dB SPL (peak 8 Ohm)
• Nominal Impedance: 8 Ohms
• Minimum Impedance: 6.9 Ohms @ 250 Hz
• Nominal Coverage: 115º conical (1 kHz to 6 kHz); 130º conical (500 Hz to 6 kHz)
• Axial Q / DI: 4.5 / 6.5, 500 Hz to 6 kHz
• Crossover Frequency: 1.6 kHz
• Recommended Signal Processing: 65 Hz high pass filter
• Drivers: LF 1x 5", HF 1x 1" exit compression driver
• Driver Protection: Self-resetting solid state circuit breaker
• Input Connection: 4-position Euroblock connector
• Controls: Front-face wattage / low impedance selector switch
• Enclosure: Corrosion-resistant zinc plated steel
• Mounting/Rigging Provisions: 4 steel mounting clamps with 3-inch grip range
• Grille: Powder coated steel with safety line, white finish, paintable
• Baffle: Reflex loaded UL 94V-0 rated ABS
• Safety Features: 4x safety hang points
