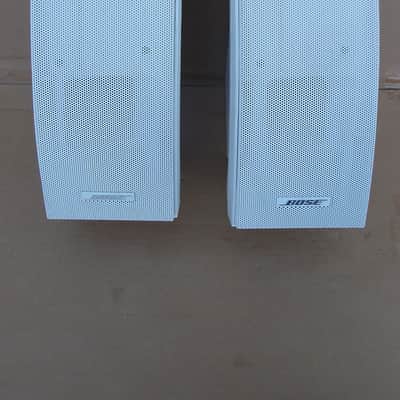

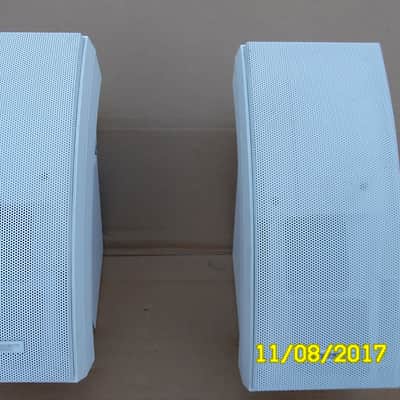

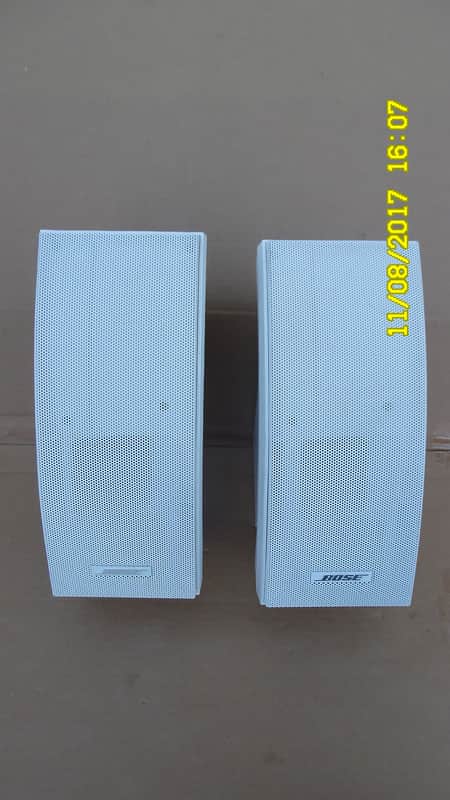

Bose Panaray 302 A Professional Environmental Loudspeakers Pair White
This gear has sold
See similar gear from other Reverb sellers
Listed:9 years ago
Views:135
Watchers:2
Northborough, MA, United States
Our users rate Reverb
Used in very good condition ship in one day. Please Check the pictures whatever you will receive please read the spec.
The Panaray 302' A is an elegant, versatile loudspeaker. It uses a 180 horizontal pattern to deliver full sound in small-to-medium-sized indoor and outdoor locations.
This full-range, two-way speaker uses proprietary Articulated Array speaker design to reproduce sound over a wide listening area, using fewer speakers to provide more coverage. A patented Acoustimass multi-chamber bass enclosure inside each cabinet delivers full, deep bass without audible distortion.
The Panaray 302 A loudspeaker delivers frequency response of 75 Hz to 16 kHz, so it can be used in commercial music applications like outdoor decks, entranceways and reception areas for hotels, restaurants and transportation facilities.
Frequency Range
75Hz to 16kHz 3dB

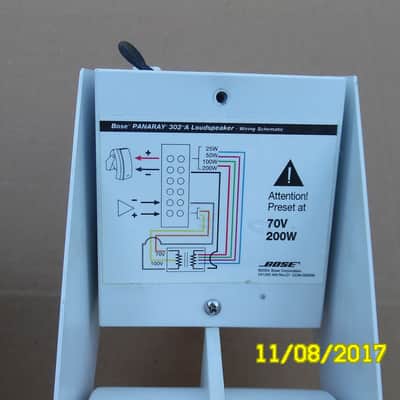

302A Speaker Configurations
70V/100V (25W, 50W, 100W, 200W taps)
Sensitivity
82dB-SPL @ 1W, 1m (pink noise)
Maximum Acoustic Output
102dB-SPL @ 1m (pink noise)
102dB-SPL @ 1m (IEC3 noise)
Dispersion (-6dB point, average,
1-4kHz)
Horizontal 178
Vertical 93
Long-Term Power Handling
100W Continuous
200W Peak
Impedance
70V: 25W at 200W tap setting
100V: 50W at 200W tap setting
Mechanical Specifications
Dimensions: 13.4"H x 5.7"W x 9.0"D (34 cmH x 14 cmW x 23 cmD)
Weight: 13 lb (3.85 kg)
including transformer and bracket
Connectors: Screw terminals
Bracket Angle: Ceiling pitch, 90;
Wall pitch, 30 Return It If You Not Satisfied.
The Panaray 302' A is an elegant, versatile loudspeaker. It uses a 180 horizontal pattern to deliver full sound in small-to-medium-sized indoor and outdoor locations.
This full-range, two-way speaker uses proprietary Articulated Array speaker design to reproduce sound over a wide listening area, using fewer speakers to provide more coverage. A patented Acoustimass multi-chamber bass enclosure inside each cabinet delivers full, deep bass without audible distortion.
The Panaray 302 A loudspeaker delivers frequency response of 75 Hz to 16 kHz, so it can be used in commercial music applications like outdoor decks, entranceways and reception areas for hotels, restaurants and transportation facilities.
Frequency Range
75Hz to 16kHz 3dB
302A Speaker Configurations
70V/100V (25W, 50W, 100W, 200W taps)
Sensitivity
82dB-SPL @ 1W, 1m (pink noise)
Maximum Acoustic Output
102dB-SPL @ 1m (pink noise)
102dB-SPL @ 1m (IEC3 noise)
Dispersion (-6dB point, average,
1-4kHz)
Horizontal 178
Vertical 93
Long-Term Power Handling
100W Continuous
200W Peak
Impedance
70V: 25W at 200W tap setting
100V: 50W at 200W tap setting
Mechanical Specifications
Dimensions: 13.4"H x 5.7"W x 9.0"D (34 cmH x 14 cmW x 23 cmD)
Weight: 13 lb (3.85 kg)
including transformer and bracket
Connectors: Screw terminals
Bracket Angle: Ceiling pitch, 90;
Wall pitch, 30 Return It If You Not Satisfied.
