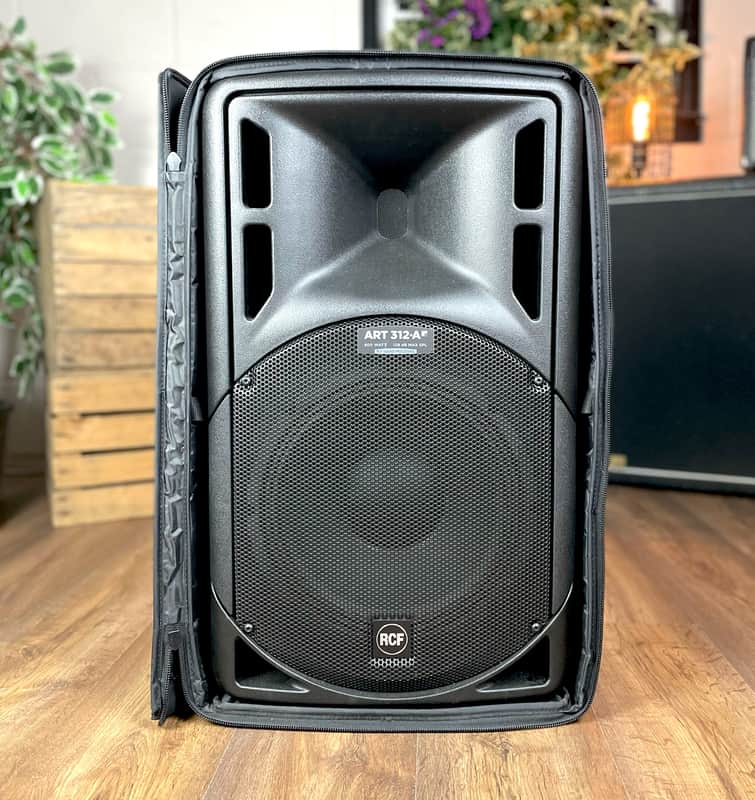

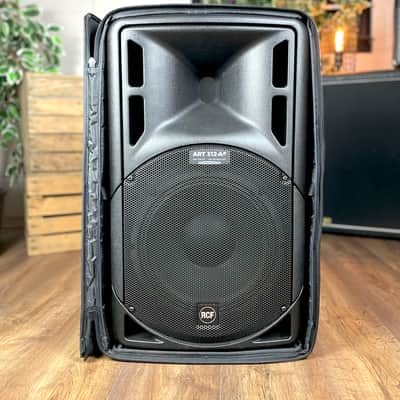

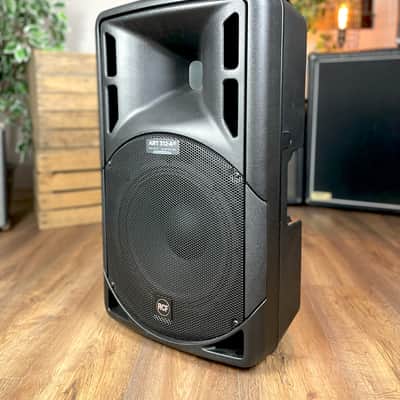

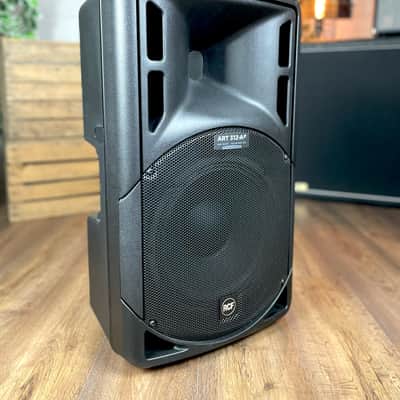

RCF ART 312A MK4 Active PA Speaker with CVR ART 312 Cover

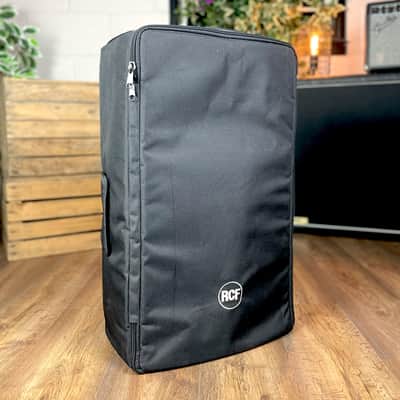

Condition: Excellent with a few light signs of use on the cabinets. The included padded gigbag is in very good condition.

The RCF Art 312-A MK4 two-way active speaker is the optimum choice for live sound situations where an exceptional full range, outstanding bass reproduction and accurate high frequency delivery are required.

Main Features

• 128 dB Max SPL
• 800 WATT 2-way peak power
• DSP Processing with FiRPHASE
• 12 inch High Powered Woofer, 2.5 inch voice coil
• 1 inch HF driver, mylar dome, 1.5 inch voice coil

The ART Series is the beating heart of RCF. These multiple purpose active speakers represent the finest examples of audio design in a rugged composite cabinet, now in black. The MK4 Series is equipped with a new generation of 2-way Class-D fan-less amplifiers, high-powered woofers and the latest compression driver technology, plus a redesigned front grille.

Powerful Class D Amplifiers
The integrated DSP manages full loudspeaker processing, FiRPHASE filters, crossover and EQ, soft limiter, and dynamic bass boost. Class-D power amplifier’s technology packs huge performance operating with high efficiency into a lightweight solution. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but helps the fan-less heat dissipation.

The 312-A MK4 has a switchable EQ mode for playback music or a live mix as well as a Mic-Line switch to enable you to plug a microphone directly into the speaker.

A New Perspective On Linearity
RCF speakers are designed by using FiRPHASE, a proprietary and advanced FIR filtering technology, conceived for delivering transparent sound, absolute clarity and perfect stereo images to the listener. The FiRPHASE algorithm optimises dynamics, amplitude and phase patterns, ensuring at the same time minimum system latency.

The Art 3 Series Design
ART 3 speakers are ideal for the musician or sound provider. Their plug ‘n’ go design is simple yet powerful: double input (XLR or Jack), one volume knob. Cabinets are moulded on a special polypropylene composite material designed to dampen down vibrations even at maximum volume settings. From moulding to the final texture, ART3 offers maximum reliability and strength for intensive use. The ART 312-A MK4 is equipped with a top handle and two side handles allowing for easy portability. The base of each speaker includes a steel pole socket for mounting on a stand or on a subwoofer pole. Stability and safety are assured. Thanks to the rear profile of the cabinet, the ART 3 Series speakers can easily be used as stage monitors whatever the needs of musicians. Internal reinforcement prevents any deformation of the cabinet.

RCF ART 312-A MK4 Specifications

Acoustic Specifications - Frequency Response -3 dB: 50 Hz ÷ 20000 Hz - Max SPL: 128 dB - Horizontal coverage angle: 90 degree - Vertical coverage angle: 60 degree - Compression Driver: 1 inch, 1.5 inch v.c. - Woofer: 12 inch, 2.5 inch v.c.

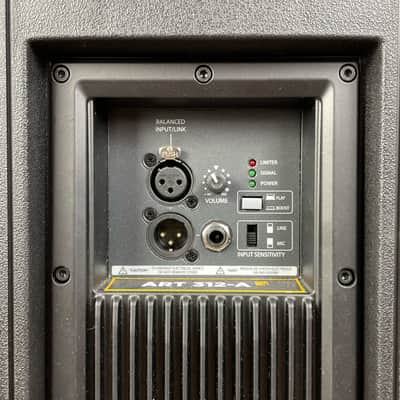

Input/Output Section - Input signal: Balanced / Unbalanced - Input connectors: XLR, Jack - Output connectors: XLR - Input sensitivity: -2 dBu / +4 dBu - Mic. Input Sensitivity: -32

Processor Section - Crossover frequencies: 1800 Hz - Protections: Thermal, RMS - Limiter: Soft limiter - Controls: Volume, Boost, Mic/Line

Amplifier Specifications - Total power: 800 W PEAK - High frequencies: 200 W PEAK - Low frequencies: 600 W PEAK - Total power: 400 W RMS - High frequencies: 100 W RMS - Low frequencies: 300 W RMS - Cooling: Convection - Connections: VDE

Cabinet - Cabinet Material: Composite PP - Hardware: 4xM10 flying p. - Handles: 2 side, 1 top - Pole Mount/Cap: Yes - Grille: Steel - Colour: Black

Physical Specifications - Height: 680mm / 26.77 inch - Width: 405mm / 15.94 inch - Depth: 345mm / 13.58 inch - Net Weight: 16.8 Kg / 37.04 lbs
