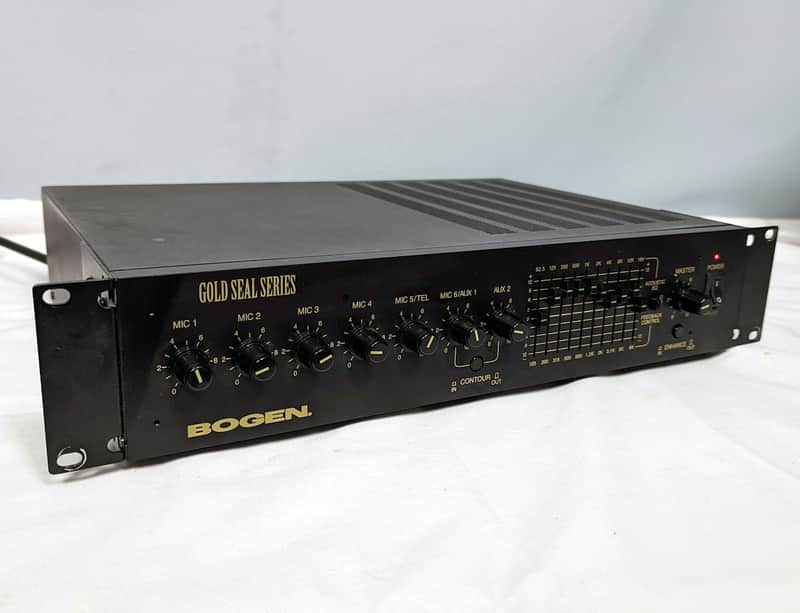

Bogen GS500D Gold Seal Series D 500W Power Amplifier with EQ

The Gold Seal Series of mixer-amplifiers from Bogen have been a workhorse of commercial audio for many years. Now they're lighter and more efficient, with Class D amplification, and even easier to install with Euroblock connectors.

Combines unique and useable features with ultra high reliability and professional performance, 4 dedicated MIC inputs, 1 selectable MIC or TEL input.

1 selectable MIC or AUX input; 1 dedicated AUX input, 4 Ohm, 8 Ohm, 25V, 25VCT and 70V transformer coupled outputs.

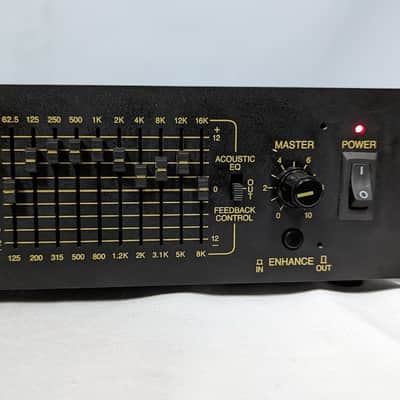

Rack mountable, 2 RU package. Dual function, 10 band graphic equalizer (Acoustic EQ or Feedback Control modes). True loudness contour function.

Audio Enhancement circuit for improved intelligibility. Switchable phantom power supply (13V DC). Variable AUX input muting.

Remote master volume control capability. Automatic level control. Input muting via contact on inputs. Voice activated AUX muting on TEL input.

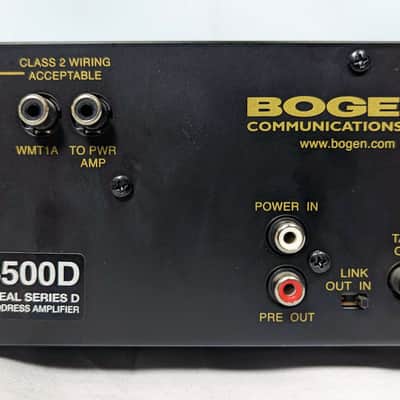

AUX fade back after TEL page. Pre amp Out or Power Amp In “insert” connections. Booster amp output connection. Tape output connection.

Balanced line driver output (using WMT1A accessory; sold separately). Low cut filter for MIC channels. Rack Mounting Kit included.

Measures approx. 16.5" x 13.5" x 3.5".

Key Features

• No-nonsense 500 watt installation mixer-amp
• 6 mic/line inputs plus AUX input
• Switchable priority muting

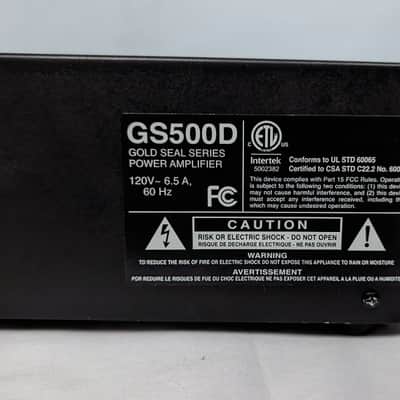

• Listed to UL Standard 60065
