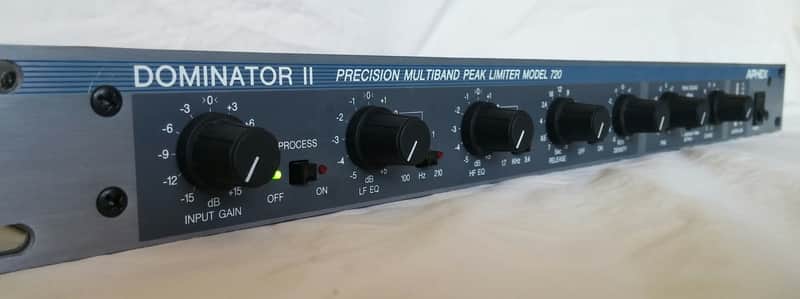

Aphex Dominator II 720 2 Channel Multiband Limiter Excellent Condition

I used this Aphex Dominator II 720 in a home recording environment which is why it’s in excellent condition. It ships complete with the power cable and original owner’s manual.

The Aphex 720 Dominator II is a stereo multiband brick wall peak limiter with zero overshoot. Once the peak ceiling is set, there is no higher amplitude in the output. As a peak overshoot protection limiter, the Dominator II is undetectable in line while it absolutely prevents peak levels from exceeding a user settable output level. The result is greater audio density and increased punch without the high frequency loss or “dullness” commonly found in other limiters. Awareness to not exceed headroom limitations is critical for most audio applications, especially in the digital realm.

Most limiters use wideband processing which results in one frequency area controlling the level of the entire frequency spectrum. An example is a vocal track being tucked down whenever a kick drum hits. Since most energy is contained in the lower frequencies, these low frequencies tend to control the level of the entire program.

The Aphex Dominator II’s multiband processing solves these problems by splitting the audio into multiple frequency bands and processing each band separately. The Dominator II uses program dependent, intelligent circuits to quickly and easily shape the sound while delivering very effective limiting.

The exceptional performance of the Dominator II makes it at home in the recording studio, sound reinforcement, and broadcast studios worldwide.

Applications

• Recording, mixing, mastering, sampling
• Sound Reinforcement
• In-Ear Monitoring
• Broadcast production, transmission, satellite uplink
• Video post-production
• Location recording
• Teleconferencing
• Media duplication

Features

• Peak Ceiling Trimmable in 0.2dB Steps over a 34dB Range
• 3 Bands of Limiting with Switchable Crossover Frequencies
• Patented Automatic Limit Threshold (ALT) Circuitry
• Freedom from Pumping
• Freedom from Spectral Gain Intermodulation
• Adjustable Density (Relative Crest Height)
• Calibrated Detented Potentiometers
• 104dB Dynamic Range
• LF and HF EQ provides shaping equalization below peak ceiling
• Relay Bypass, Remote Controllable

Inputs and Outputs

• Input Circuits - Servo balanced transformerless
• Output Circuits - Servo balanced transformerless
• Input Connectors - 3-pin XLR female
• Output Connectors - 3-pin XLR male
• Input Impedance - 19.5k ohms unterminated; 600 ohms by rear panel switch (terminator lifts in bypass mode)
• Output Impedance - 65 Ohms

Controls

• Input Gain - +14dB / -21dB, +8dB / -21dB
• LF EQ - ±5dB
• LF Crossover - 100Hz / 210Hz
• HF EQ - ±5dB
• HF Crossover - 1.7 kHz/ 3.4kHz
• Release Time - 150msec to 7 seconds
• Density - -5 to +5 RCH
• Output Ceiling - -9 to +24dB (peak) (=peak value of sinewave)
•
• Dimensions - 19"W x 1.75"H x 9.5" D (482.6mm x 44.5mm x 241.2mm)

The Dominator II maximizes your mix levels, protects you when using in-ear monitors, and is a staple in mission-critical broadcast studios. Hurry, only one unit available!
