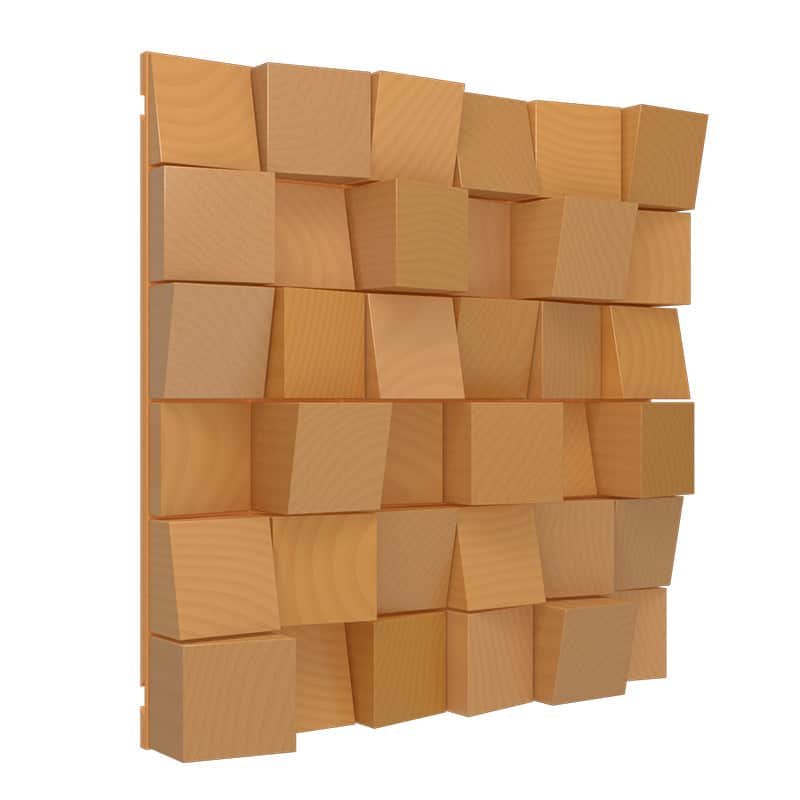

ViCoustic Multifuser Wood 36 MK II (Natural Wood)

ViCoustic Multifuser Wood 36 MK II (Natural Wood | U04280)

Made from solid wood, the Multifuser collection is perfect for use in venues such as concert halls, hi-fi rooms and recording studios, where effective diffusion is often required, without too much absorption occurring at the same time. With its striking angled surface, the two-dimensional diffuser is based on a QRD sequence combined with changing reflection techniques (a result of the angled surface).

The 36 and the 64 models are made of two and four parts, respectively. Each part can be rotated in different directions so that a uniform, omnidirectional scattering of sound is achieved, with particularly effective diffusion of mid and low frequencies. Multifuser Wood 64 works between 310Hz and 8kHz and Multifuser Wood 36 works between 470Hz and 10kHz.

As well as its acoustic efficiency, the panel’s attractive appearance makes it suitable for use in a range of settings. Available in Light Brown, Black, White and two new colors: Metallic Copper and Metallic Gold.

SPECIFICATIONS

Main Info

• Dimensions: 36) 595 x 595 x 96mm / 23.4'' x 23.4'' x 3.8'' | 64) 595 x 595 x 143mm / 23.4'' x 23.4'' x 5.6''
• Raw Material: Solid Wood and Ply Wood
• Scratch Resistance: No
• Washable: N/A

Performance

• Functionality: Diffusion
• Absorption Frequency Range: N/A
• NRC: 36 = 0.25 / 64 = 0.35
• Fire Rate
• Europe: Euroclass E
• USA: Class B (ASTM-E84)

Packaging Information

• Units/Box: 1
• Box Dimensions: 36) 625 x 330 x 140mm / 24.6'' x 13'' x 5.5'' | 64) 625 x 330 x 190mm / 24.6'' x 13'' x 8.8''
• Box Gross Weight: 36) 15.2kg / 64) 19.6kg

Installation

• Fixation: VicFix J Profile (included)

Disclaimers:
 Please notice that the dimensions of these panels have a tolerance of +/- 2mm. A slight color variation may occur between different batches. The product images used are illustrative and may differ from the actual product.

Multifuser Wood MKII is designed only for wall installation. We do not recommend it for ceiling installations. If a client wishes to install in a ceiling, a special structure must be built at the customer's responsibility.
