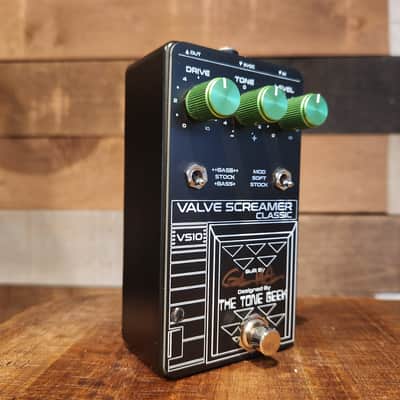

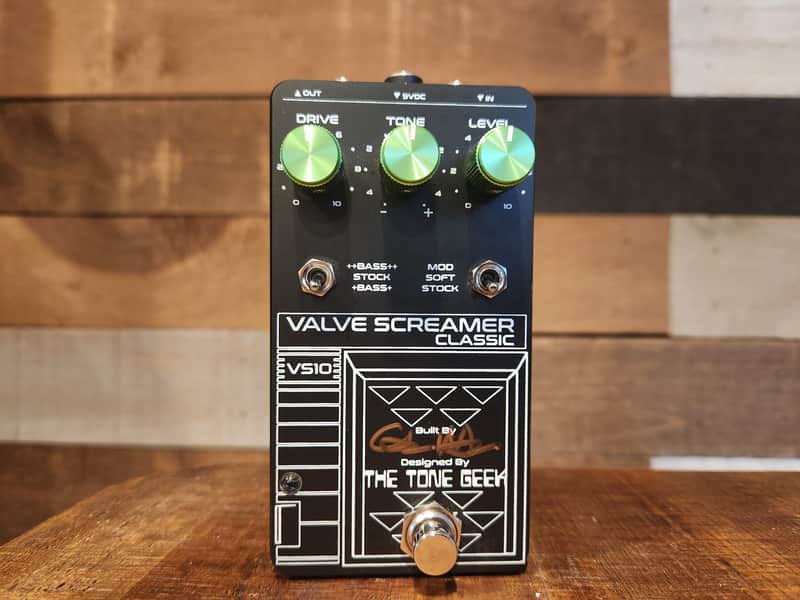

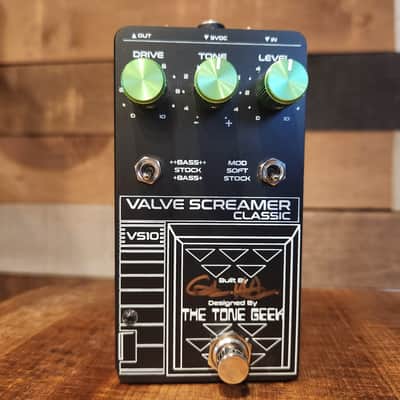

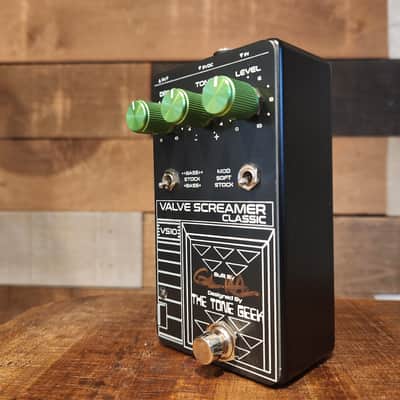

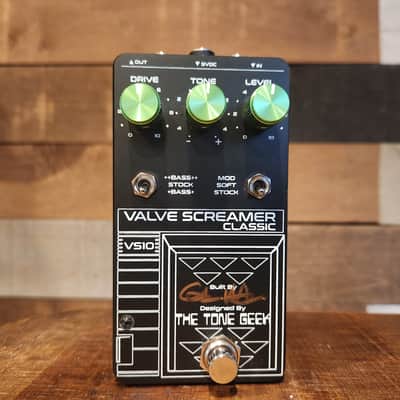

Tone Geek Valve Screamer TS10 VS10 (Ibanez TS 10 clone) Through Hole construction

This is the best tube screamer recreation/adaption that I have heard yet, it has replaced the King Tone Duellist on my board.

Tone Geek built this pedal in the through-hole PCB configuration per the original TS-10 design.

Pedal information from the Tone Geek website:
My goal with this pedal is:
• Make it an honest TS10 circuit and add in switchable clipping and bass options.

• Carefully chosen components that influence the tonal "signature" of the pedal per the original.

• Select highly reliable mechanical components such as jacks, switches, pots, and footswitches.

• Keep the buffer and flip-flop circuit per the original.

• Utilize the same component type in the signal flow (transistors, capacitors).

• Make it easy to scale and manufacture with off-the-shelf parts.

• Make room for high-quality WIMA polyester box film capacitors should there be some deviation from selecting the original mylar film.

• Any other opportunities to improve without touching the signal at all.

• Needs to look cool!

The result:
• Implemented a filtered power supply design with a solid polymer reservoir capacitor for the lowest supply noise and long life expectancy. No impact on the supply voltage compared to the original circuit. In fact, the implemented filter design will smooth out the cheapest and noisest power supplies.

• 1S1588 clipping diode mode just like the original.

• LED high headroom clipping mode for fast response and low gain.

• Keeley BD-2 style clipping mode for asymmetrical clipping for a tube-like response.

• 3 bass selection modes for stock, bass+, and bass++.

• 2SC1815 and 2SK118 transistors per the original as another tonal "signature" influence.

• Non-polarized 1uf electrolytic capacitors per the original.

• Mylar film capacitors in the signal chain per the original.

• High-quality Alpha pots and stomp switch that you can feel click under your foot.

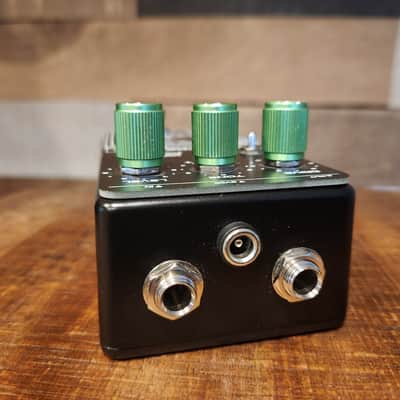

• 1/4" and power jacks were carefully selected so they hold the plugs in place. This is really important to me when I'm observing pedal "quality".

• Standard Hammond 125B size with top jacks.

• Combining all these elements together resulted in a pedal that scientifically proven to match a real TS10 on my scope as well as creating the highest quality and reliable look and feel when interacting with this pedal.
