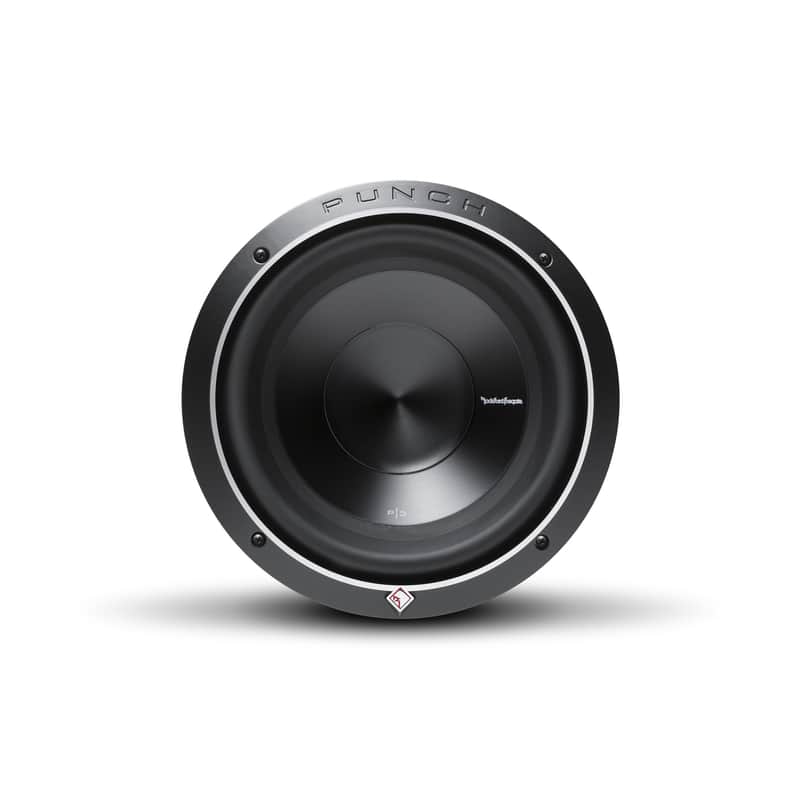

Rockford Fosgate Punch 10" P3 500 Watt 2 Ohm DVC Subwoofer - P3D2-10

Overview

The P3D2-10 is Rockford Fosgate's best performing Punch series subwoofer. The P3 subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.

Features

• Custom 10-AWG nickel plated push terminals
• Extended pole piece and bumped vented backplate
• Anodized aluminum cone and dustcap
• Rubberized over-mold for greater grip
• High-temp voice coil with spun-laced Nomex® re-inforcement collar
• Protective PVC textured magnet cover
• Diamond cut cast aluminum trim ring with optional grille
• StampCast basket with integrated spider venting
• 1 Year Warranty

Specifications

• Power Handling (Watts RMS): 500 Watts RMS; 1000 Watts Max
• Nominal Impedance: Dual 2-Ohm
• Mounting Depth: 6.18 in. (156.8 mm)
• Voice Coil Diameter: 2.5" (65.5 mm)
• Fs (Hz): 26.6
• Woofer Displacement: 0.070 cu. ft. (2.0 Liters)
• Qes: 0.54
• Qms: 6.00
• Vas (Liters): 27.0
• Size: 10"
• Sd (cm2): 360
• Speaker Connector: Dual 10 AWG compression
• Shipping Weight: 17.3 Lbs. (7.8 kg)
• SPL (dB @ 1w/1m): 82
• Qts: 0.49
• Cutout Diameter: 9.13 in. (232 mm)
• Magnet Weight (oz): 81 oz. (2.30 kg.)
• Le (mH): 4.5
• Re (Ohms): 3.20
• Xmax (mm): 15.2
• Subwoofer Type: Standard
• Voice Coil Type: Dual Voice Coil
• Sealed Box Volume (Vb): 0.59 cu. ft. (16.7 Liters)
• Vented Box Volume (Vb): 1.4 cu. ft. (39.6 Liters)
