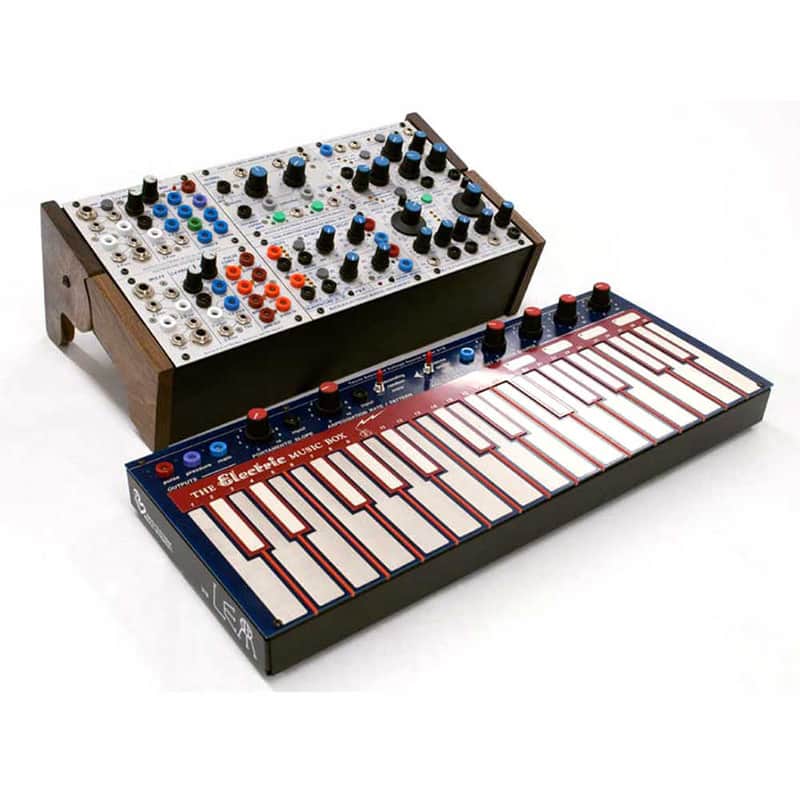

BUCHLA LEM4 + 218 SNOOPY

BUCHLA LEM4 218 Snoopy

Includes LEM4 Snoopy, a modular or standalone synthesizer with dual independent oscillators, two lowpass doors / filters based on vactrol and a dual function generator, plus the LEM 218 Music Easel style keyboard.

LEM4 Snoopy

Snoopy can be played as an independent instrument with its complex waveform oscillator, filter and VCA functions with incredible power in a compact design, or integrated into a larger complex system. With its Dual Lowpass Gate consisting of two independent vacuum-based gates / filters in the classic Buchla format, Dual Function Generator with two independent envelope generators with VC attack and decay, and the ability to cycle and perform as an LFO, MIDI, USB control to allow interface with all formats including EuroRack, and the most desirable and unique timbre in the history pages of the synthesizer, Snoopy is Buchla Power for now and the future.

Complex oscillator: 2 independent oscillators that can be linked for FM / AM modulation effects

Dual Lowpass Gate: 2 independent doors / filters based on vactrol in the classic Buchla format

Dual function generator: 2 independent envelope generators with VC attack and decay, with the ability to cycle and perform as an LFO

MIDI-CV interface: 5-pin MIDI input and USB for single-voice synthesizer with voltage conversion of 1-1.2V / oct, multiple connector / conversion and intermediate scaling buffers for interconnection

More CV buffers, scaling and conversion 1-1.2V / oct, jack / multiple converters and Pulse-Gate and Gate-Pulse converters that connect to other systems

Snoopy can be configured in a standard Buchla-style voice using the modulation oscillator to modulate the primary oscillator, or even 2 independent VCO-VCF / VCA voices. Even in this compact package, there are unlimited sounds that can be created in real time.

Integrate your synthesizer or external audio sources and use the classic Snoopy Buchla filters and modulation sources for unique effects.

LEM 218 Music Style Keyboard

The LEM 218 breaks the legendary 218 keyboard used in the music stand for use with 200e systems and now interacts with other synthesizer standards.

Functionality

• Traditional music functionality Easel 218

• 29-key touchpad, transposable in 4 octaves

• internal bus 200e communication for oscillator control

• 4 touch pads can function as preset transposers or voltage sources

• CV, door, pulse and pressure outputs compatible with the Eurorack standard

• pressure sensitivity with CV outside

• The arpeggiator responds to MIDI synchronization and holds to maintain patterns

• voltage controllable portamento • MIDI input and output, USB MIDI, expansion slot

delivery time 15 days approx.
