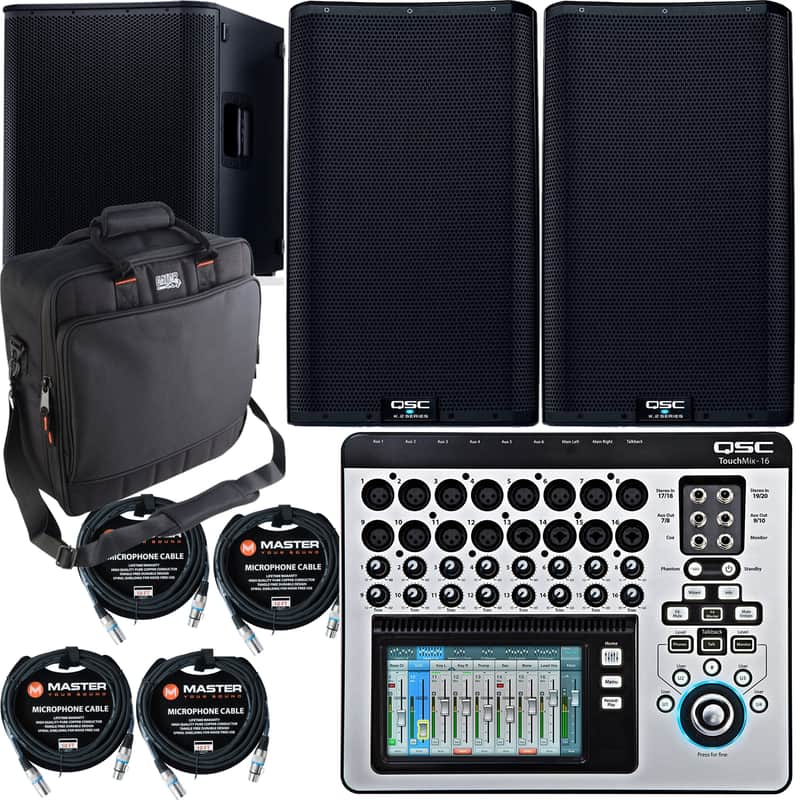

QSC TouchMix-16 Mixer w/ QSC K10.2 - K.2 Speakers, KS118 Subwoofer, Bag & Cables

QSC TouchMix-16 Touch-screen Digital Audio Mixer with 16 Mic/Line Inputs

TouchMix is quite simply the most powerful, compact mixer ever created. It offers the features, capabilities and sound quality of the world's most esteemed large format consoles in a highly compact and portable package that’s small enough to be carry-on luggage. Perfect for musicians, bands, AV production professionals and small performance venues, the TouchMix-16 goes "Beyond Mixing" by offering Wizards, Presets and other beneficial tools that help both seasoned audio professionals and novices alike get great results quickly and easily.

Its 22 mixing channels (16 Mic/Line, 4 Line, Stereo USB) and 12 outputs offer ample signal management flexibility while advanced features such as class-A microphone preamps, Anti-Feedback and Room Tuning Wizards, real-time analyzer (RTA) and 20-channel direct-to-external-drive recording make it equally competent as both a professional live sound or recording tool.

The touch-and-turn interface of TouchMix allows for tactile control over fader and mixer parameters while also providing a hardware connection to the mixer. Mixer functions and displays are duplicated via iOS® or Android® devices over Wi-Fi, providing both portable, wireless connectivity as well as additional control of mixer functionality.

The TouchMix-16 comes complete with USB Wi-Fi adapter and carrying case.

FEATURES

• Capacitive touchscreen offers a wealth of on-screen information while also providing confident hands-on control
• 120 presets provide real-world live sound settings for commonly-used instruments and microphones
• Simple and Advanced modes offer either basic or comprehensive controls
• Anti-Feedback and Room Tuning Wizards simplify complex equalization tasks
• Real-time analyzer (RTA) provides instantaneous display of channel tonal balance and room response
• 10 Aux mixes provide superior monitor configuration capabilities
• 22-channel direct-to-hard drive record/playback — capture and recall performances without the need for an external computer
• MP3 playback direct from USB
• On-board multi-language user guide
• Download future upgrades directly from the Internet



NEW 3.0 FIRMWARE FEATURES

• Feedback and Room-Tuning Wizards
• Real-Time Analyzer (RTA)
• Copy-and-Paste
• Input Delay
• Output PEQ
• Digital Gain
• Channel Overview
• USB Drive Formatting
• Improved graphics and screen layout



ADDED FEATURES

• Channel Safe
• Tap Tempo
• Tablet Follows Mixer
• Additional User Buttons (on connected tablet)
• Ability to split Aux 7/8 and Aux 9/10 into discreet, mono outputs (TouchMix-16)
• More channels – Because of the new MP3 USB playback functionality, the TouchMix-8 is now a 14-input mixer while the TouchMix-16 improves to 22-input



QSC KS118 Direct Radiating 18-inch Subwoofer, 3600 Watts, DEEP Mode Enabled

The KS118 is a very high output active subwoofer producing impressive low frequencies for mobile entertainment, AV production, clubs and performance venues. Featuring an 18-inch direct radiating driver powered by a 3600 Watt Class D amplifier, the KS118 delivers high sound pressure levels with dynamic and musical sound reproduction of very low frequencies.

On-board DSP optimizes and protects system performance as well as offers advanced capabilities such as the ability to array two units in a cardioid arrangement. Highly transportable, the rugged enclosure features comfortable handles and four low noise casters. An M20 threaded pole receptacle accepts a 35 mm pole for easy vertical deployment with full-range loudspeakers.

Features

• Very high output with impressive low frequency performance
• 3600 Watt Class D amplifier module
• 18 inch (460 mm) long excursion direct radiating driver
• Omni-directional or cardioid radiation modes (cardioid setup requires min. 2 units)
• Selectable DEEP™ mode for extremely low frequency extension
• Adjustable crossover and delay
• Scenes for commonly-used applications that can be saved/recalled
• Refined, professional and elegant appearance in any application
• Rugged painted wood enclosure for lasting durability
• Vertical or horizontal deployment (M20 threaded pole receiver for vertical setup)
• Four low-noise, heavy-duty casters
• Optional transport cover, KS-LOC security cover and 35 mm loudspeaker pole accessories available
• 6-Year Warranty with product registration



QSC K10.2 - K.2 Series Active 10" Loudspeaker

The QSC K.2 Series represents the best-inclass loudspeaker for today’s demanding audio professionals. The perfect combination of elegant design, superior audio performance, high functionality, simple and intuitive operation, and genuine QSC reliability, K.2 delivers extraordinary results for users in both portable and installed applications.

Features

• Best in class audio performance
• 2000 Watt Class-D amplifier module
• Intrinsic Correction™ tuning and  loudspeaker management
• DMT™ (Directivity Matched Transition)  design provides excellent power response and consistent performance across the listening are
• Refined, professional appearance looks great in any application
• Rugged ABS enclosure for long life and lasting durability
• Deployment in either main PA or floor monitor position
• Factory Presets and savable/recallable Scenes for commonly-used application
• Multi-function digital display for control and selection of loudspeaker functions including cross-over, EQ, delay and frequency contour
• Dual pole cup mounts (standard and 7.5 degree down-tilt)
• M10 fittings for flown applications
• Optional security panel prevents  unauthorized tampering of controls
• Complete EASE and CAD information  available online
• 6-Year Warranty (with product registration)



Gator Cases G-MIXERBAG-1515 Mixer/Gear Bag Updated Padded Nylon Mixer Or Equipment Bag; 15" X 15" X 5.5"

Features

• Rugged Nylon Exterior
• 10mm Dual Layer Padded
• Protection Protective Tricot lined interior Removable shoulder strap comfortable webbed handles
• External storage pockets with cord management



Specifications QSC TouchMix-16 Touch-screen Digital Audio Mixer with 16 Mic/Line Inputs

• Display: 6.1” × 3.5” (156 mm × 90 mm) color TFT, touch sensing
• Inputs (Mic/Line)
  • 20 total:
  • Four XLR/TRS combo
  • 12 XLR
  • Two stereo 1/4" TRS
• Input: (Talkback) One XLR
• Outputs
  • Two main XLR line-level
  • Six aux XLR line-level
  • Two stereo aux. TRS (line-level or in-ear monitor, 16Ω min. impedence)
  • One stereo monitor TRS (line-level or headphone, 16Ω min. impedance)
  • One stereo cue TRS, (line-level or headphone, 16Ω min. impedance)
• Mic & Line Input Channel Processing (both models)
  • 4-band parametric EQ with high/low shelving option,
  • variable 24 db/octave HPF & LPF, gate, compressor
• 2-Track (USB) & FX Return Processing (both models): 2-band shelving EQ, variable 24 dB/octave HPF, gate, compressor
• Output Channel Processing (both models)
  • Main outputs and auxes 1–6: 1/3 octave GEQ • Limiter • 4 full-frequency notch filters
  • Variable 18dB/oct Low-cut and High-cut filters Auxes 7/8 & 9/10 (TM-16 only): 4-band PEQ, Limiter
  • Additional variable 18dB/oct Low-cut and High-cut filters
• Recording: 22 tracks, requires USB 3.0 HD • FAT32 format • minimum 7800 RPM
• Groups: (both models)8 DCA groups (with mutes), 8 Mute groups, auxiliaries may be used as sub groups
• Cue (both models): Selectable AFL or PFL
• Effects (both models)
  • 4 professional effects engines including reverb, echo, delay, chorus. 50 factory, 50 user presets
  • 1 pitch correct (assignable to any mono input channel)
• Scene and Preset MemoryScenes: 130 user-defined scenes, including all mixer parameters may be stored internally or on
• FAT32 formatted USB Channel and FX Presets: 130 user-defined channel presets and 130 FX presets may be stored internally
• or on FAT32 formatted USB
• External Control (both models): iOS TouchMix app for iPad, iPad mini, iPad Air. Control via Wi-Fi provides access to all mixer
• functions. Requires iOS 6 or higher.
• Wi-Fi (both models): USB Wi-Fi adapter included
• Dimensions (HWD)
  • 58 mm x 360 mm x 291 mm
  • 2.3” x 14.2” x 11.5”
• Weight: 5.9 lb (2.98 kg)
• Power: (both models)100–240 VAC, 50–60 Hz
• Sampling Frequency (both models): Selectable 44.1 kHz or 48 kHz
• Internal Processing (both models): 32-bit floating point
• Frequency Response (both models): 20 Hz–20 kHz ±0.5 dB, any input to any output
• Dynamic Range (both models): 105 dB
• Equivalent Input Noise (both models): -126 dBu
• Residual Output Noise (both models): -86 dBu
• Crosstalk (both models): -80 dB
• S/N Ratio (both models): -94 dB
• Maximum Input Level (both models): +16 dBu (Mic/Line inputs, XLR), +26 dBu (Mic/Line inputs, TRS), +22 dBu (Stereo inputs)
• Phantom Power (both models): 48V, individually switchable per channel
• Included (both models): USB WiFi adapter, soft carrying case, power supply



QSC KS118 Direct Radiating 18-inch Subwoofer, 3600 Watts, DEEP Mode Enabled General

• Configuration: Direct Radiating
• LF Transducer: 460 mm (18 in), Cone
• Frequency Response (-6 dB): 41 Hz - 98 Hz
• Frequency Range (-10 dB): 35 Hz - 111 Hz
• Nominal Coverage Angle: Omni-directional or cardioid radiation modes (cardioid setup requires min. 2 units)
• Maximum Rated SPL1: 136 dB @ 1 m (peak)
• Amplifier
• Class D
• 3600W (peak)
• Cooling: Low-noise, variable speed fan
• Controls: Power On/Off
• Gain Control
• Rotary encoder
• 2 × selection buttons
• Indicators 2 × Power LED (front and rear)
• Input Signal LED
• Limiter active LED
• Connectors
• 2 × locking XLR/F ¼ inch combo
• 2 × XLR/M (Loop-thru Output)
• 1 × locking IEC power connector
• AC Power Input: Universal power supply 100 – 240 VAC, 50 – 60 Hz
• AC Power Consumption (⅛ power): 100 VAC, 3.6 A / 120 VAC, 3.0 A / 240 VAC, 1.7 A



Enclosure Details

• Enclosure: 18 mm birch plywood
• Color: Black (RAL 9011)
• Grille: 16-gauge Black Powder Coated Steel
• Speaker Dimensions (H×W×D)
• 640 × 520 × 785 mm
• 25.2 × 20.5 × 30.9 in
• Carton Dimensions (H×W×D)
• 572 × 743 × 896 mm
• 22.5 × 29.3 × 35.3 in
• Net Weight: 47 kg / 104 lb (including casters)
• Shipping Weight: 56.5 kg / 124.6 lb
• Regulatory: CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
• Included Accessories: 4 × Low-Noise, Heavy Duty Casters
• Optional Accessories
• KS118 CVR Transport Cover, KS-LOC Lock-Out Cover
• SP-26 and SP-36 Loudspeaker Poles, SP-16X Extension Pole



Gator Cases G-MIXERBAG-1515 Mixer/Gear Bag

• Color: Black
• Handles: Webbed Carry Handle
• Lockable: No



Interior Dimensions

• Interior Length: 15.00
• Interior Width: 15.00
• Interior Height: 5.50
• Interior Lengh (Aux): 15.00
• Interior Width (Aux): 9.00
• Interior Depth (Aux): 0.75



Exterior Dimensions

• Exterior Length: 16.00
• Exterior Width: 16.00
• Exterior Height: 5.50
• Exterior Weight: 2.50 pounds



QSC K10.2 - K.2 Series Active 10" Loudspeaker

• Configuration: Multi-purpose, 2-way powered loudspeaker
• LF Transducer: 10" (254 mm), cone
• HF Transducer: 1.4" (35.6 mm) titanium diaphragm compression driver
• Frequency Response: (-6 dB) 56 Hz - 20 kHz
• Frequency Range: (-10 dB) 50 Hz - 20 kHz
• Nominal Coverage Angle: 90° Axisymetric
• Maximum Rated SPL1: 130 dB @1 M, peak 124 dB @ 1 M, continuous
• Amplifier

  • Class D
  • Peak: 1800 W (LF), 225 W (HF)
• Cooling

  • Low-noise, variable speed fan
• Controls

  • Power
  • 3 x Level
  • Rotary encoder (push)
  • 2 x selection buttons
• Indicators

  • Monochrome LCD Display 1.75" x 1" (45 mm x 25.4 mm)
  • 2 x Power LED (front and rear)
  • 3 x Input Signal LED
  • Input A Mic selected LED
  • Input B Hi-Z selected LED
  • Limiter active LED
• Connectors

  • 2 x locking XLR/F ¼" combo (Mic/Line Input and Hi-Z/Line Input
  • 1 x 3.5 mm TRS (Stereo Input)
  • 2 x XLR/M (Loop-thru Output)
  • 1 x XLR/M (Mix Output)
  • 1 x locking IEC power connector
• AC Power Input: Universal power supply 100 – 240 VAC, 50 – 60 Hz
• AC Power Consumption 1/8th Power2:100 VAC, 2.1 A / 120 VAC, 1.9 A / 240 VAC, 1.1 A
• AC Power Consumption - Standby: .2A at any voltage
• Enclosure Enclosure: Impact Resistant ABS
• Attachment Points: 2 x M10 threaded inserts plus Pull-Back
• Color: Black (RAL 9011)
• Grille: 18 Gauge powered coated steel, internal cloth lining
• Dimensions (HxWxD)

  • 20.4 x 12.6 x 11.8 in
  • 519 x 320 x 300 mm
  • Regulatory: CE, WEEE, UL, China RoHS, RoHS II, FCC Class B

Optional Accessories

• K10 Tote, K10 Outdoor Cover
• M10 Kit-C, K.2-LOC Lock Out Cove
• K10.2 Yoke



MC-10 MASTER MICROPHONE XLR CABLE, 10' (MASTRMC10)
