The Stoel Music Systems 2044 Filter is a classic 24db/octave analog lowpass filter with voltage control over frequency and resonance. The 2044 filter was used in the Korg Polysix, Korg Monopoly, Korg Trident, PPG Wave 2.3, the Emu Drumulator, SP-12, Emulator, the Voyetra 8, and several other vintage synthesizers.

Color: White
+12V Current Draw: 10ma-
12V Current Draw: 8ma
+5V Current Draw: 0ma
Mounting Screws: 2
Module Type: Filter
Mounting Depth: 21mm
HP Size: 8HP
Cable Required: Yes
UPC: 721205474761

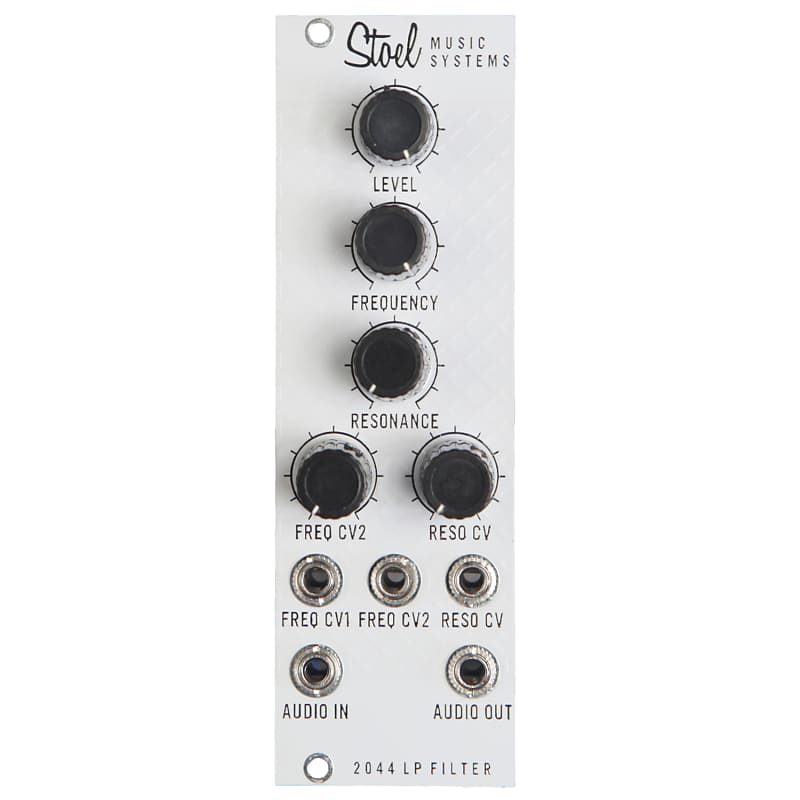

All Stoel Music Systems modules feature aluminum front panels with a durable high-gloss white finish. For a crisp appearance and exceptional durability, the front panel markings are digitally printed at high-resolution with UV-cured ink. Mounting holes are plated to significantly reduce screw rash. The power connection features polarity protection to prevent accidental damage to the module if it is connected backward.

Each module includes a 12” long 10-pin to 16-pin ribbon cable compatible with the Eurorack standard, M3 mounting screws, and a complimentary sticker.

ConditionBrand New (New)
Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more
Brand
Model
  • 2044 Low Pass Filter
Finish
  • White
Categories
Year
  • 2023
Made In
  • United States
