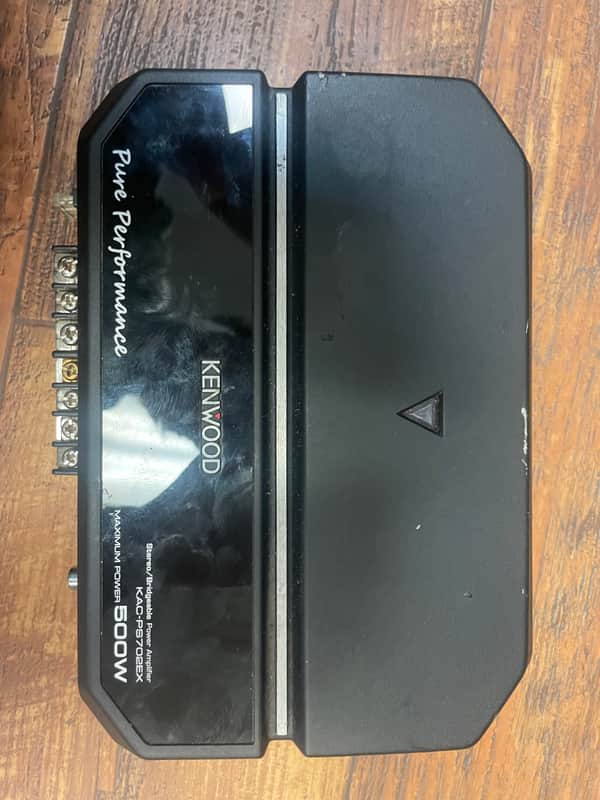

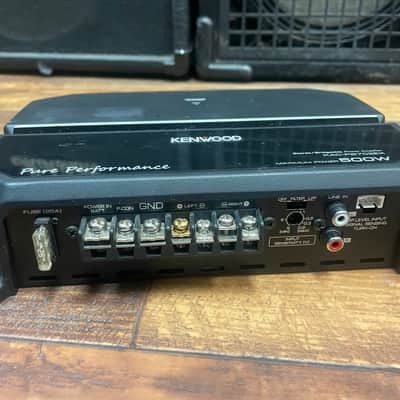

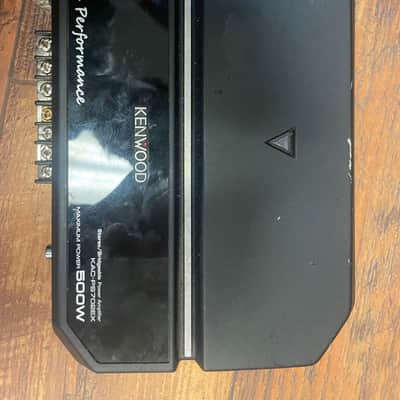

Kenwood KAC-PS702EX - Black

Tested!

Works great!

• Performance Standard Serie Stereo or mono setup 500W Maximum output power
• Built-in Low-pass filter Signal Sensing Turn-on Speaker level input Power MOS-FET switching power supply Die cast aluminium heat sink
• Load Capability2Ω Stable Maximum power output500W Rated power output (4Ω)70W x 2 (4Ω) Rated power output60W x 2 (4Ω) Bridged power output (4Ω)170W x 1 CEA-2006 CompliantYes Low-pass FilterYes Switched Mode Power supplyYes, MOS-FET Signal Sensing Turn-onYes Line in2 RCA's Speaker level InputYes Single Side TerminalsYes Die-Cast Aluminium Heat SinkYes
• Rated power output (4Ω, 14,4V)70W x 2 (20Hz ~ 20000Hz, 1%THD) Rated power output (2Ω, 14,4V)85W x 2 (1000Hz, 1%THD) Rated power output (CEA-2006)70Watts RMS x 2 at 4 ohms and 1% THD Low-pass Filter80Hz (-18dB/oct) RCA Input Sensitivity0.2 ~ 5V Speaker Level Input Sensitivity4 ~ 12V Input Impedance10kΩ
• Signal to Noise Ratio100dB Signal to noise ratio (CEA-2006)80dBa (Reference: 1 Watt into 4 Ohms) Frequency response (+0dB, -3dB)20Hz ~ 50Hz Operating voltage14.4V (11V ～ 16V allowable) Maximum current consumption15A Dimensions (WxHxD)230 x 56 x 167(mm),
