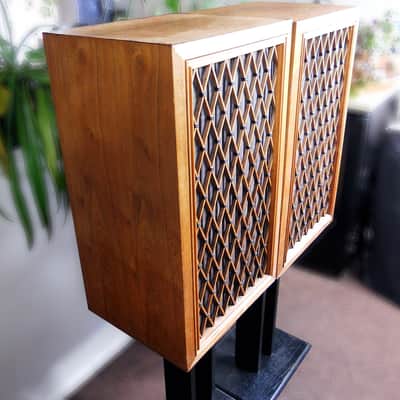

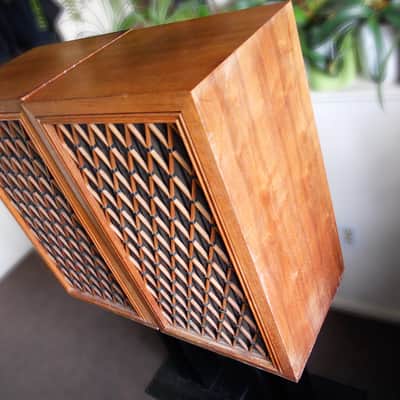

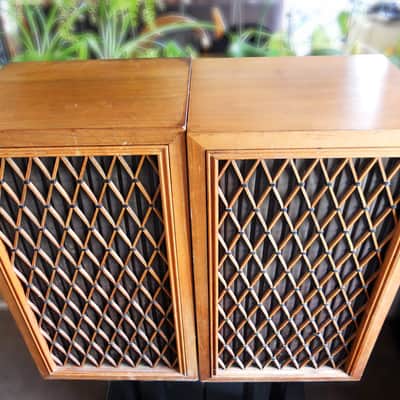

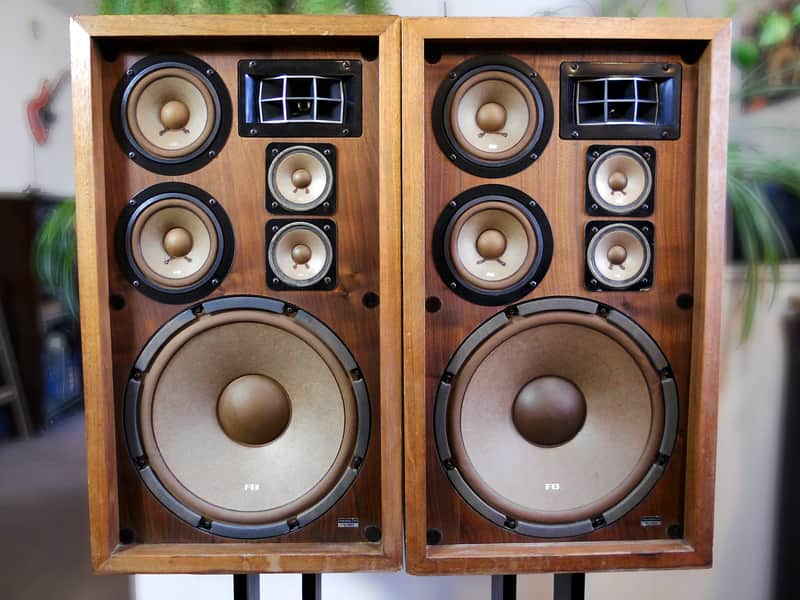

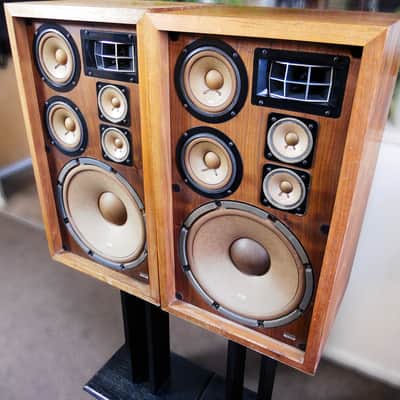

Up for Sale: 1971 Pioneer CS-88A 4-Way 6-Speaker System (made in Japan). Fully tested, in great working order.

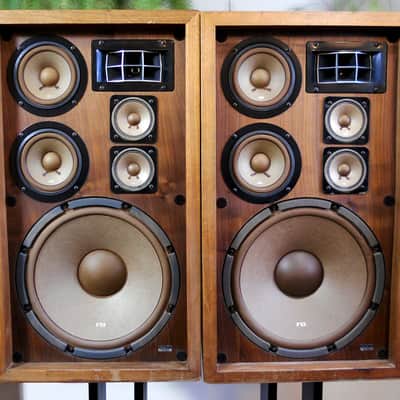

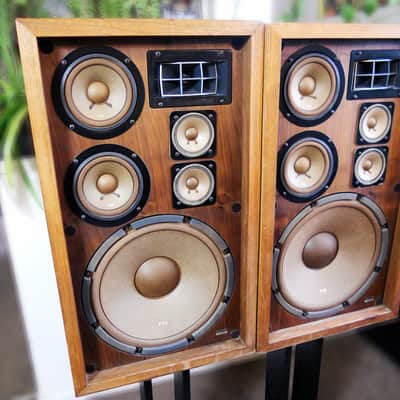

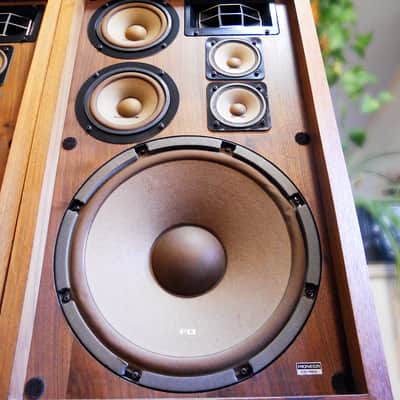

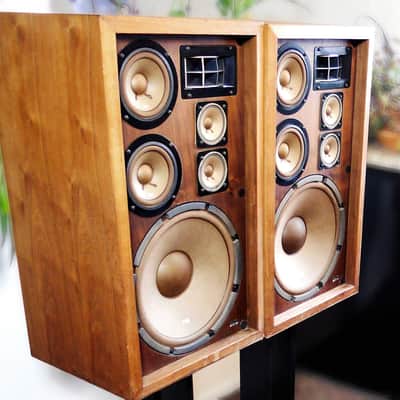

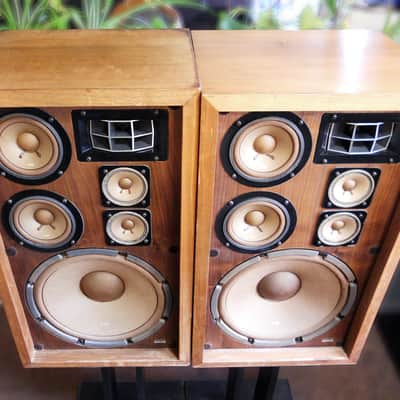

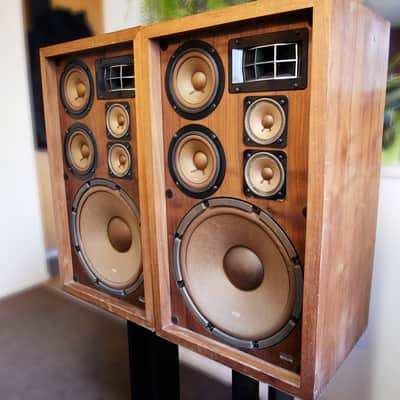

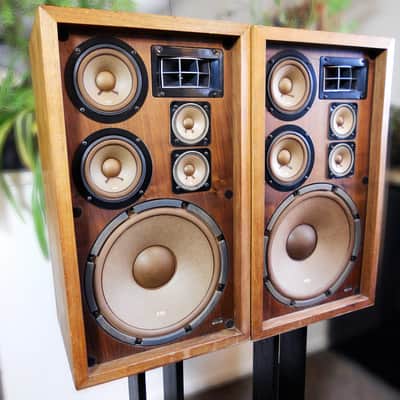

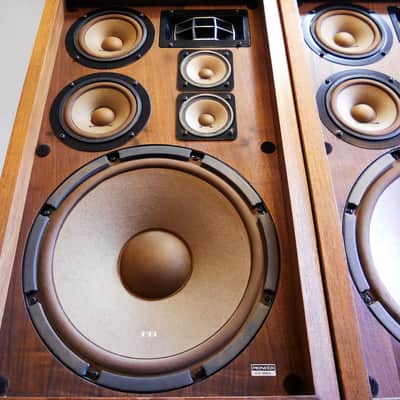

12" Woofers, 5" Mid-Ranges and Horns are in excellent condition; however 3" Tweeters might need to be re-foamed in the near future (see pics), but it doesn't affect the sound overall.

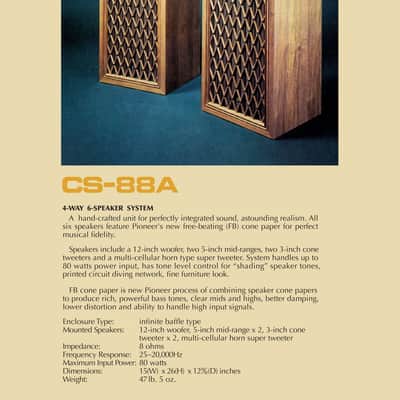

Specifications:
■ Enclosure: Infinite Baffle Type
■ Mounted Speakers:
◌ 12" F.B. Cone Paper Woofer
◌ 5" F.B. Cone Paper Mid-Range x 2
◌ 3" F.B. Cone Paper Tweeter x 2
◌ Multi-Cellular Horn Supersonic Tweeter
■ Impedance: 8Ω
■ Maximum Input Power: 80 Watts
■ Frequency Response: 25−20,000Hz
■ Crossover Frequency:
◌ Lows to Mid Ranges 450 Hz
◌ Mid Ranges to Highs 3,600 Hz
◌ Highs to Super Highs 14,000 Hz
■ Sensitivity: 97dB/W
■ Dimensions: 15” (W) x 26” (H) x 12-19/32” (D)
■ Weight: 47 lbs. 5oz / 21.5kg
* Speaker stands are not included
