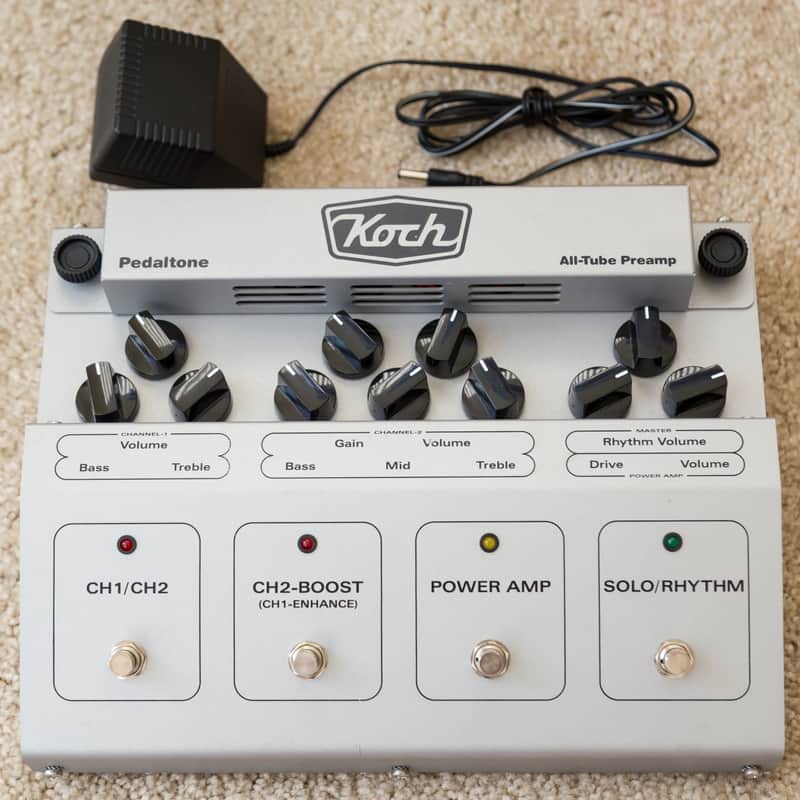

Koch Pedaltone PDT-4 Version I Tube Guitar Preamp

The Pedaltone, a semi 4-channel foot-operated floor unit, bursting with innovative features and fitted with four 12AX7 preamp tubes.
With many of the same features found on our other products it not only guarantees the Koch sound, it also adds unique new sounds that no other preamp can produce. The pedaltone outputs these sounds to almost any input you can imagine: a mixing console, recording system, 19" power amp, FX retrun jack or even the input jack of any guitar amp.

For reaching new levels of thick, fat, rich and saturated distortion, we have built-in a very powerful feature, a small 0.5 watt all-tube power amp. This little power stage will enable you to create huge sounds similar to a fully overdriven tube combo or stack. Together with the footswitchable enhancer on the clean channel and the booster function on the distortion channel the range of clean and overdrive tones seems almost endless

The Pedaltone offers you a total of 8 different sounds under the tip of your toes. Adding the Solo/Rhythm feature even doubles the number of sounds you will find in this powerfull floor unit. The Recording output allows you to send your tube sound to any (studio) mixing console, PA system or home recording set. The built-in speaker simulation filter guarantees a faithful reproduction of your stage sound by simulating the sound coming from a speaker which is picked up by a microphone in front of it. And last but not least, the Headphones output will allow you to get your kicks anywhere a mains socket is available.
The Pedaltone is built extremely solid in a rugged stainless steel housing and features comprehensive control layout. Its five outputs guarantee connectivity to any input available.

Featuring:

Tubes - 4x 12AX7 tubes
All-tube single-ended 0,5 Watt Power amp with Drive and Volume controls. It can be activated with a separate footswitch and works on all channels.
Two independent channels - Clean & Overdrive with separate Gain, Volume and Tone controls
Clean channel with foot switchable High-Gain Boost function
Solo / Rhythm facility
Fully buffered serial Effects Loop

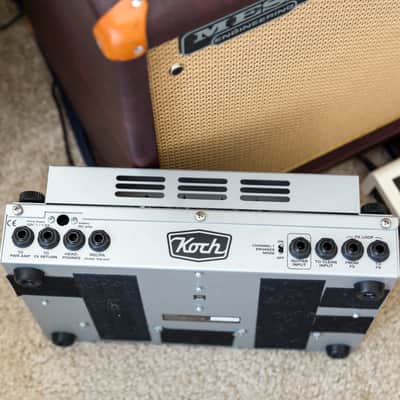

Five outputs:
-To Power Amp (0dBm)
-To Amp Input (-20dBm, filtered)
-To Recording (-10 dBm, with speaker simulation)
-To Headphones (0dBm, with speaker simulation

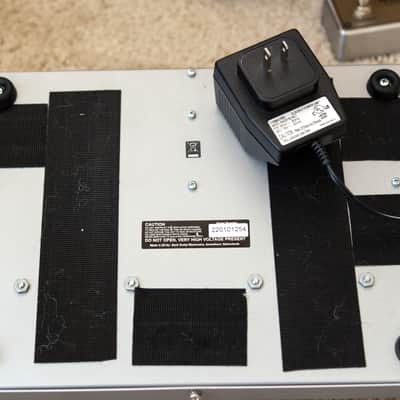

12 VAC power supply unit - mains adapter is included
Dimensions - 31w x 23,5d x 8,5h (cm)
Weight - 3 kg (6.6lbs)
