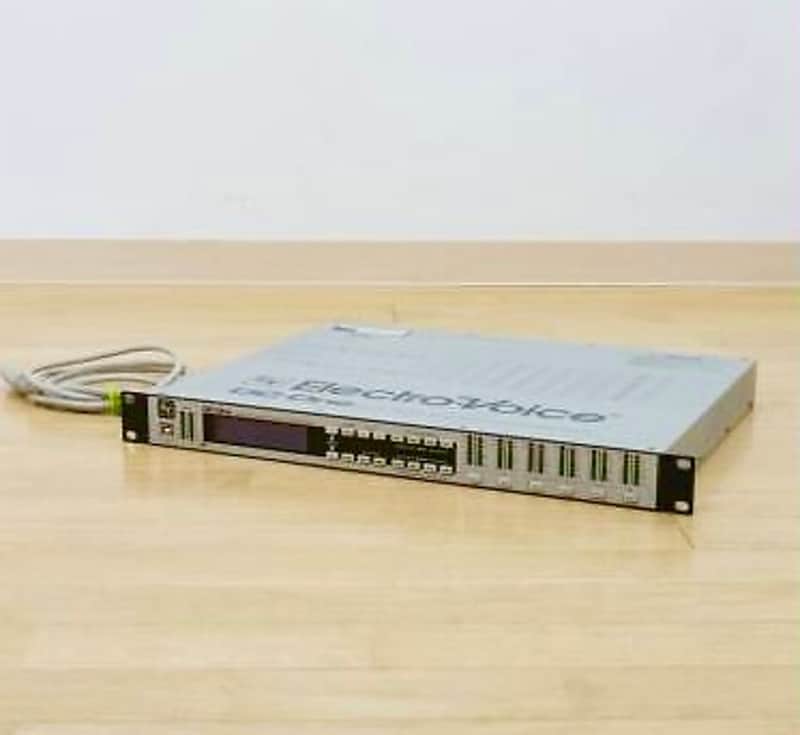

Electro-Voice DC One Sound System Processor

EV Electro-Voice DC-One Sound System Processor.

Used but great condition

The Electro-Voice DC-One is a digital sound system processor with 2 analog inputs, 1 digital AES/EBU inputs and 6 analog outputs. The configuration and operation of the device can be done via the front panel or the DC-One Editor Software Application. For remote configuration and control, the DC-One can be connected via USB. Direct-access buttons for editing DSP parameters are available on the front panel. Up to 80 presets (60 factory presets and 20 programmable user presets) can be used. The integrated FLASH memory allows software and firmware update via USB. Eight control inputs on the rear panel can be used for recall of presets using external switches or contacts. On the front panel, level meters for input and output signals, output gain reduction, limit and clip LEDs, dedicated Mute buttons, output channel function indicators (SUB, LO, MID, HI) and a LCD display (192 x 32 pixels) with blue backlight are available. There are 6 preconfigured configurations plus one freely configurable full edit (2 in 6 out) configuration available. Every DSP parameter can be locked and/or hidden. Using 24 Bit AD/DA converters a dynamic range of 111 dB is reached. A switchable input PAD (-6 dB) placed prior to the AD converter can be activated. Configuration is done via DC-One Editor Software Application, the Application also allows the graphical display of the system transfer function.
