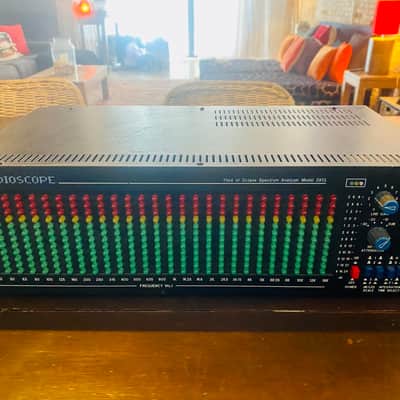

AUDIOSCOPE Audioscope Spectrum Analyzer Black

Audioscope 2813 Spectrum Analyzer

From analyzing the frequency content of a song to studying the frequency response of a room, Audioscope 2813 is the product of choice for the perfect graphical representation of an audio program.
LED spectrum audio analyzer from 31.5Hz to 16KHz a + WB, 28 columns of 12 LEDs. XLR I / O, Pink noise generator.
Features:
Audio spectrum analyzer
Frequencies starting from 31.5Hz to 16KHz.

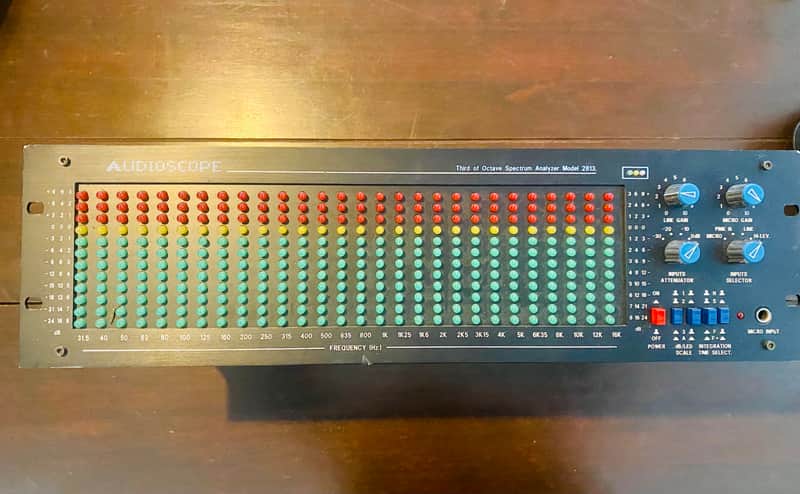

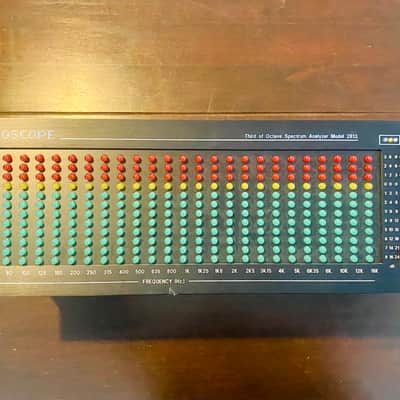

28 LEDs column display, 12 LEDs each.
Selectable inputs: Micro, Pink-noise, line L, R, L + R, L-R.
Microphone Input: 600 ohms, electronically balanced.
+ 12V phantom power. 6.3mm jack on the front.
Recommended microphones: M100 or M200.

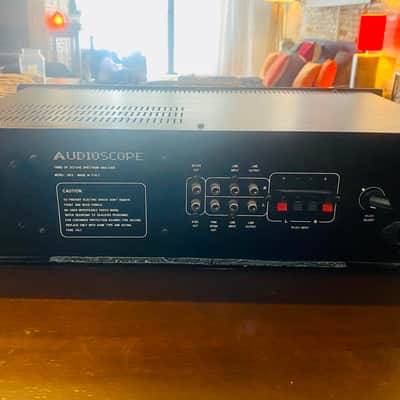

line inputs: 600 Ohm, electronically balanced, XLR.
Pink-noise generator. Balanced 600 Ohm output, XLR.
Resolutions: 1,2,3 dB for LED + automatic scaling.
LED screen dynamic: 12, 24, 36 dB.
Integration time: 1 / 4s (Fast +), 1s (Fast), 4s (Slow), Hold.
Power: 100: 240 VAC 50/60 Hz, 55w
Dimensions: 3 rack units, 6 Kg.
