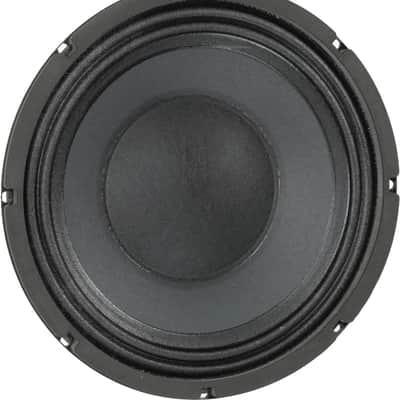

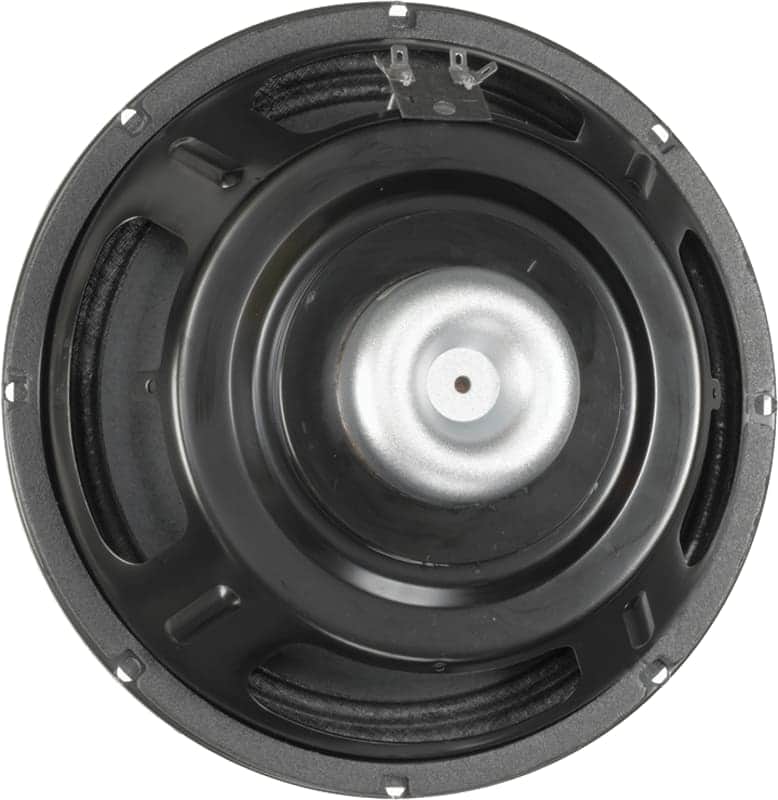

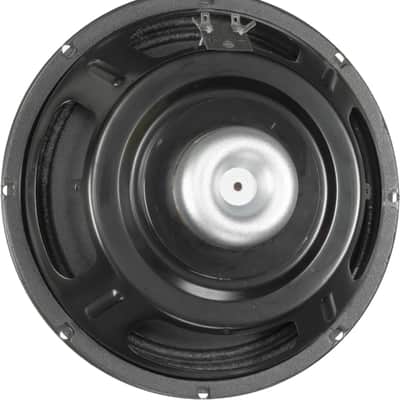

Eminence Basslite S2010 10 Inch Bass Guitar Speaker 150W 8 Ohm

Neodymium 10" speaker, 8 ohm. Recommended for bass guitar. Ideal in vented 1X, 2X, and 4 X10 enclosures.

Eminence Basslite S2010 10 Inch Bass Guitar Speaker 150W 8 Ohm Features:

Baffle Hole Diameter 9.18 in.
Basket Material Pressed Sheet Steel
Coil Construction copper voice coil
Coil Former Polyimide former
Coil Inductance (le) 0.47 mH
Cone Composition Paper cone
Cone Edge Composition Cloth cone edge
Core Details Non-vented core
D.C. Resistance (Re) 5.02 Ohms
Depth 4.25 in.
Driver Volume Displaced 0.84 liters
Dust Cap Composition Solid composition felt dust cap
Efficiency Bandwidth Product (ebp) 135
Electrical Q Factor (Qes) 0.34
Equivalent Acoustic Volume (VAS) 63.4 liters
Force Factor (BxL) 11.9 Wb/m
Front Sealing Gasket Yes
Gap Height 0.28 in.
Linear Displacement, maximum (XMAX) 4 mm
Magnet Composition Neodymium
Magnet Weight 4 oz.
Mechanical Compliance (CMS) 0.36 mm/N
Mechanical Limit, maximum (XLIM) 8 mm
Mechanical Moving Mass (MMS) 33 g
Mechanical Q Factor (QMS) 4.16
Mounting Hole Bolt Circle Diameter 9.66 in.
Mounting Hole Diameter 0.25 in.
Nominal Basket Diameter 10 in.
Nominal Impedance 8 Ohm
Overall Diameter 256 mm
Peak Diaphragm Displacement Volume (vd) 140 cm3
Power Rating 150 W
Program Power Rating 300 W
Resonance 46 Hz
Resonance Frequency (fS) 46 Hz
Sensitivity 96.2 dB
Surface Area Of Cone (sd) 350.1 cm2
Total Q Factor (QTS) 0.31
Usable Frequency Range 54 Hz - 3 kHz
Voice Coil Diameter 2 in.
