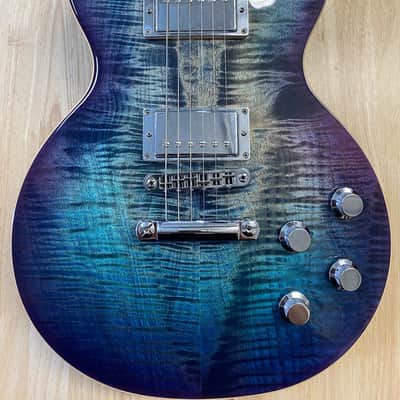

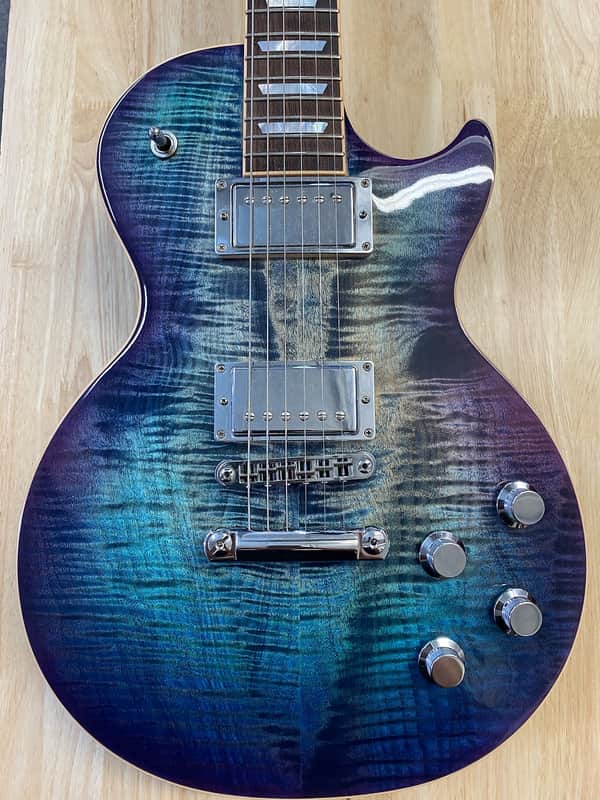

Gibson Les Paul Standard HP 2017

Top Wood Species: Maple Pieces: 2 Grade: AAAA Binding: Cream   Back Wood Species: Mahogany Pieces: 2 Density: Low Binding: None Weight Weight Relief: Ultra-Modern Average Weight (body only): 4lbs. 6.7oz   Materials Used Glue: Franklin Titebond 50 :   Tonal, Resonant, and/or Technical Effect: Sculpted Fast Access Heel   Body Contour Carve: Classic Neck Neck Wood Species: Mahogany Pieces: 1   Details Truss Rod: Les Paul Profile: Slim taper Thickness at Fret 1: .800" Thickness at Fret 12: .875" Other Materials: Average Weight: 1 lbs 2.0 oz   Peg Head Type: SP1-B Inlay: Mother of Pearl Peg Head Binding: None Logo: "Gibson" Silkscreen: Gold "Les Paul Model" Headstock Angle: 17 degrees Tonal, Resonant, and/or Technical Effect: Neck Fit Joint Angle: 5.0 degrees Joint Angle Tolerance: 0 deg 0 min 15 sec Type: Mortis and Tenon Adhesive: Franklin Titebond 50 Gauges Used: Pitch Height Gauge   Nut Style: Zero Fret Nut Material: Titanium Width: 1.745" Slots: E: 0.058"
A: 0.048"
D: 0.038"
G: 0.028"
B: 0.019"

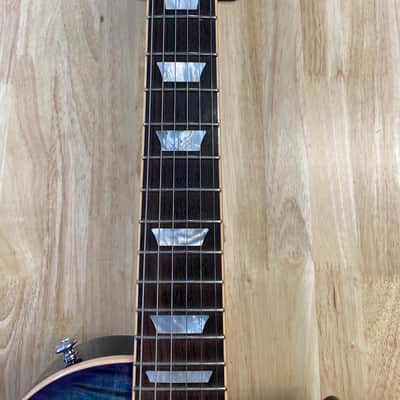

e: 0.014"   Fingerboard Wood Species: Rosewood Pieces: 1 Shade: Dark Fingerboard Details Radius: Compound Radius Frets: 22 Nut/End of Board: 1.745" @ nut, 2.310" @ end of board Scale: 24.75" Binding: Cream Side Dots (Color): Black   Fingerboard Inlays Style: Trapezoid Material: Mother of Pearl Dimensions: Large - 0.66" x 1.17" Small - 0.24" x 1.56" Average Weight: 4.16 oz Finishes Bourbon Burst Color Code: B8 Surface Texture: Smooth/ Hi Gloss 90 Sheen Lacquer Filler: Walnut Sealer: 1.5-2 mils Top: Bourbon Burst Top Coat: Hi Gloss Lacquer / 90 Sheen, 7-8 mils Scraped: Fingerboard Sides, Body and Nut Honey Burst Color Code: HB Surface Texture: Smooth/ Hi Gloss 90 Sheen Lacquer Filler: Walnut Sealer: 1.5-2 mils Top: Honey Burst Top Coat: Hi Gloss Lacquer / 90 Sheen, 7-8 mils Scraped: Fingerboard Sides, Body and Nut Heritage Cherry Sunburst Color Code: HS Surface Texture: Smooth/ Hi Gloss 90 Sheen Lacquer Filler: Walnut Sealer: 1.5-2 mils Top: Heritage Cherry Sunburst Top Coat: Hi Gloss Lacquer / 90 Sheen, 7-8 mils Blueberry Burst Color Code: B9 Surface Texture: Smooth/ Hi Gloss 90 Sheen Lacquer Filler: Walnut Sealer: 1.5-2 mils Top: Blueberry Burst Top Coat: Hi Gloss Lacquer / 90 Sheen, 7-8 mils Scraped: Fingerboard Sides, Body and Nut Electronics

Pickups Rhythm Lead Style: Rhythm Pro Lead Pro + Winds/Coil: Screw side/Slug side: 5000 / 5200 5500/5750 Material of Wire (gauge): Enamel (42) Enamel (42) Coil Dimensions (per coil): 2.61" x 0.68" 2.61" x 0.68" Coil Material: ABS ABS Coil Winding Process: Machine Wound Machine Wound Pole Piece Material: Nickel plated steel Nickel plated steel Pole Piece Position from Nut: 47.3075 cm / 18.625" 23.437 " Slug Material: Nickel plated steel Nickel plated steel Slug Dimensions (diameter x length): 0.187 x 0.489" 0.187 x 0.489" Magnet Material: Alnico 5 Alnico V Magnet Position from Nut: 19 " 23.125 " Magnet Dimensions: 2.375" x 0.5" 2.32 x 0.5" Polarities: Cover: Chrome Chrome Qfactor: 5.4 2.98 ResistanceDC: 7640 Ohms 8570 Ohms Resonant Frequency: 2863.30 Hz 2538.93 Hz Tonal & Resonant Advancements: Control Pocket Assembly Lead Volume Rhythm Volume Type: 500K Push/Pull Non-Linear 500K Push/Pull Non-Linear Peak Voltage: 500V 500V Range: 0-500K 0-500K Power Rating: 1/4 watt above 100K ohms 1/4 watt above 100K ohms Resistance Tolerance: +/- 20% +/- 20% Minimum Resistance: 200 ohms 200 ohms     Lead Tone Rhythm Tone Type: 500K Push/Pull Non-Linear 500K Push/Pull Non-Linear Peak Voltage: 500V 500V Range: 0-500K 0-500K Power Rating: 1/4 watt above 100K ohms 1/4 watt above 100K ohms Resistance Tolerance: +/- 20% +/- 20% Minimum Resistance: 200 ohms 200 ohms   Capacitors: Lead Value Rhythm Value   .022uF .022uF Switchable Functions Neck Pickup: Tap or Split Bridge Pickup: Tap or Split Neck Volume: High Pass Filter Out in In Circuit Bridge Volume: High Pass Filter Out in In Circuit Transient Suppression: Out or In Circuit Hardware

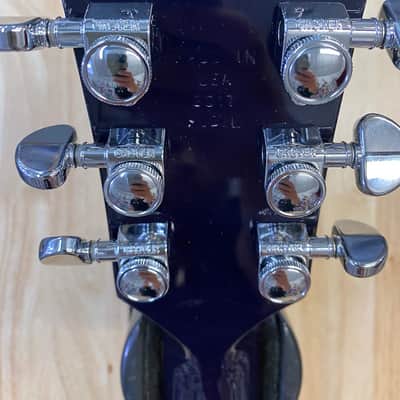

Tuning Keys Style: G-FORCE Material: Zamak Weight: 1.1 oz   Tuning Keys Details Tuning Ratio: 40:01:00 Gear Type: Syncronized Spur Gear System What is allowable turn: +/- 4 degrees Plating specs: Chrome Part numbers: 430-14301B / 301T   String Dimensions E: 0.046" A: 0.036" D: 0.026" G: 0.016" B: 0.011" e: 0.009"   Bridge Style: TOM w/ Titanium Saddles and Locking Thumbwheels Material: Aluminum Plating Specs: Chrome Part number: 430-14454 / 430-94940 Weight: .96 oz

Dimensions of String Slots E: 0.058" A: 0.048" D: 0.038" G: 0.028" B: 0.019'' e: 0.014"   Tailpiece Style: Stop Bar w/ Locking Studs Compensated: No Material: Aluminum Plating Specs: Chrome Part number: 430-14451 / 430-14451 Weight: 1.12 oz   Output Jack Style: 1/4" mono gold plated positive contact   Jack Plate Style: Les Paul Square Material: Chrome Part Number: 430-19467 Weight: 0.21 oz   Strap Buttons Material: Aluminum Plating Specs: None Part numbers: 430-19160 / 60E Weight: 0.14 oz. Plastics

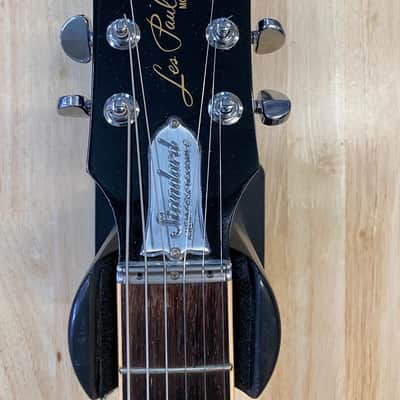

Pick Guard Style: Removable Cream LP Part Number: 430-20022   Truss Rod Cover Style: Chrome Bell, Stamped "Standard / High Performance" Part Number: 430-94928   Knobs Style: Chrome Push/Pull Top Hats Part Number: 430-14457   Dial Pointers Yes/No: No

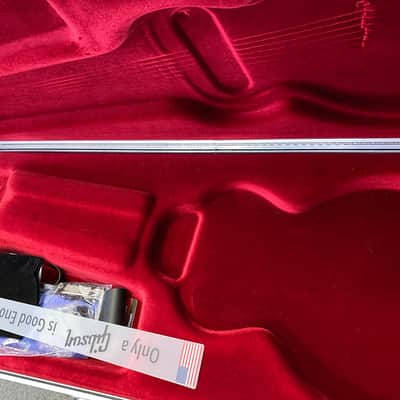

Control Plate(s) (Backplate Cover) Style: SS infused polycarbonate for ESD protection Part Number: 380-12209   Control Plate(s) (SwitchPlate Cover) Style: SS infused polycarbonate for ESD protection Part Number: 380-12211   Switch Washer Style: None Part Number: n/a   Trim Rings Style: Cream Humbucker w/ Chrome Trim Ring Part Number: 430-13894 / 430-13893 Accessories Case Style: HP Hard Shell Color: Aluminum   Strap Locks: None Tools: Gibson USA Multi-Tool, Gibson USA Premium Strap, Gibson USA Polishing Cloth   Manual: Gibson USA's owners COA/Other: None
