Spec Sheet:
Amplification And Build
› 110 Watts x 7 Advanced Direct Energy Amplification
(20Hz – 20kHz, 8 ohms, 0.08% THD – FTC)
› Rigid Trans Stabilizer Construction
› Advanced Direct Construction

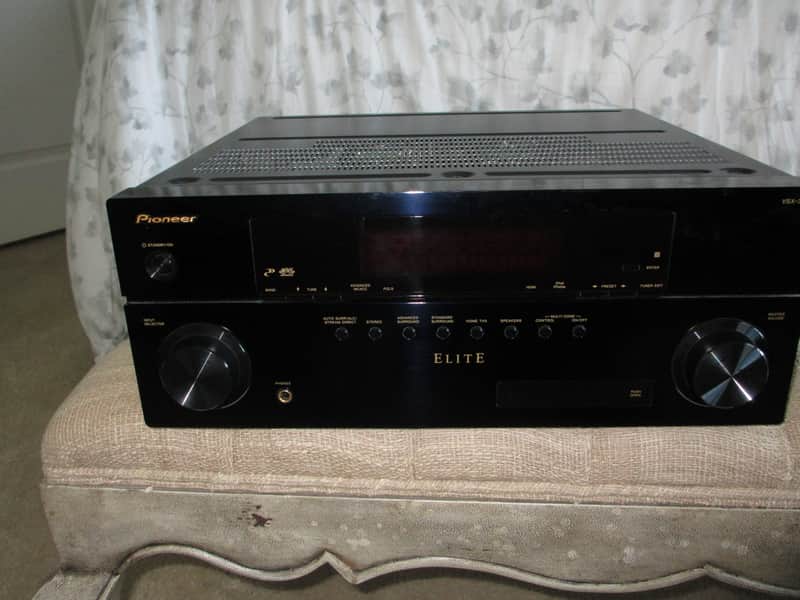

› Glossy Aluminum Front Panel
› Energy Saver Power Supply
Audio features› Freescale™ Digital Core Engine
› THX® Select2 Plus Processing and Certification
› Dolby® TrueHD, Dolby Digital Plus, Dolby ProLogic IIz, DTS-HD® Master Audio / High Resolution Audio
› Advanced MCACC (Auto Room Calibration)
– Symmetric 9-Band EQ
– Standing Wave Control
– Auto Crossover
› 192 kHz / 24-Bit DAC (111 db S/N)
› 192 kHz / 24-Bit ADC (112 db S/N)
› Jitter Reduction Plus
› Phase Control
› WMA9 Pro Decoder
› DTS Neural Surround
› PQLS Multi-Channel Surround (Precision Quartz Lock System)
› Advanced Surround Sound (13+1 Modes)
› Wide Surround
› Front Stage Surround Advance (Focus, Wide)
› Headphone Surround
› Virtual Surround Back and Height
› XM-HD Surround
› Multi-Channel Auto Level Control
› Dialogue Enhancement
› Multi-Channel Advanced Sound Retriever
› Sound Retriever AIR for Enhanced 2-Channel Playback via Bluetooth®
› Digital Noise Reduction
› Midnight Listening Mode
› Sound Delay (Lip-Sync)
› Multi-Channel Tone Control
Bold denotes step-up features from VSX-32
› HDMI® (V.1.4a with 3D)
› Audio Return Channel
› Marvell® 1080p / 24fps Video Processor
› Supports 36-bit Deep Color and x.v. Color
› Pure Cinema I/P Conversion
› 3D Noise Reduction (for Analog and HDMI HD)
› Advanced Video Adjustments with Black Level
connectivity› Made for iPod & iPhone Certified with Front USB Featuring iPhone, iPod Touch, and iPod® Player Album Art and Full Color GUI
(USB + Composite Cable Included)
› Ethernet Input for Internet Radio (24 Presets)
› Front Panel USB Memory Audio and Photo Playback
› Bluetooth Ready1
› HDMI (6 Inputs Including 1 Front Input / 2 Outputs)
› Digital Coaxial (2 Inputs)
› Digital Optical (3 Inputs / 1 Output)
› Audio In / Out (2 Inputs / 1 Output)
› A/V Composite (4 Inputs / 1 Output) Including 1 Front Input
› Component Video (2 Inputs – Assignable / 1 Output)
› SIRIUS Satellite Radio Ready2
› XM Satellite Radio Ready2
› 9.1 Pre-Amp Output
› Large Speaker Terminals – All Channels
custom control
› PC Web Browser Control
› iControlAV App for control of receiver with iPhone/iPod Touch (available for download in the Apple App Store)3
› On-Screen Display (Independent On-Screen Display for Zone 2)
› 3-Zone Multi-Zone and Source (3rd Zone Audio)
› Second Zone iPod USB / Internet Radio / SIRIUS / XM
› Internet Radio Station Input via USB-connected Keyboard
› Versatile 9.1 Speaker Configuration
› Main Room / Multi-zone Illuminated Preset Remote
› RS-232C Interface
› 12 Volt Trigger (x2 – Assignable)
› I/R (2 In / 1 Out)
› Detachable Power Cord
› Pioneer RF Remote Ready

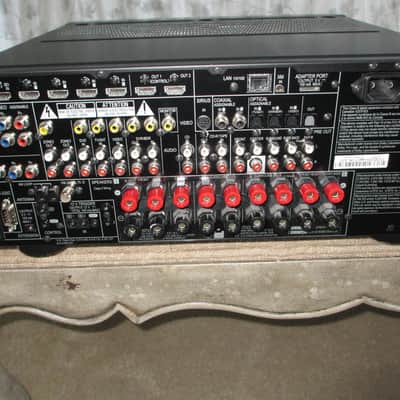

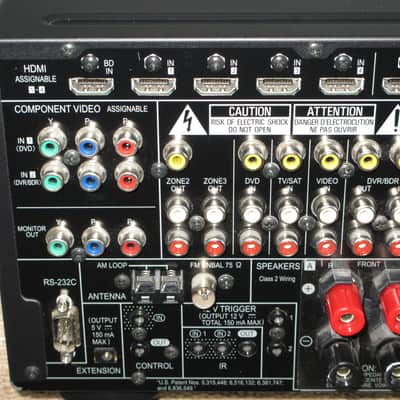

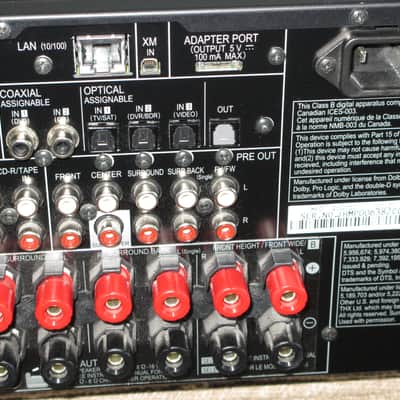

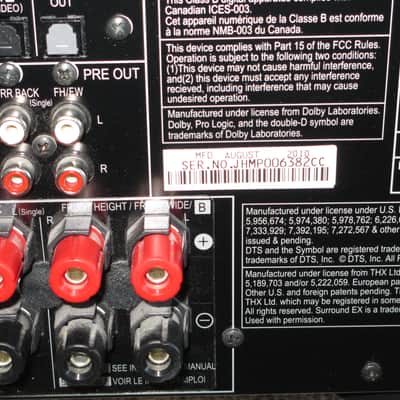

Rear Panel
› W x H X D: 16.54” x 6.81” x 17.05”
› Weight: 29 lbs. 9 oz.
upc
› 884938109048
› W x H x D: 20.43” x 12” x 21.10”
› Weight: 37 lbs.
8 oz.
Specifications and design subject
to modification without
notice.
PIONEER, ELITE, and the Pioneer and Elite logos are registered trademarks of Pioneer Corporation. DOLBY, Dolby TrueHD, Pro Logic IIz, Dolby Digital EX Dolby Digital Plus, and the double-D symbol are registered trademarks of Dolby Laboratories.
DTS and the Symbol are registered trademarks and the DTS logos are trademarks of DTS, Inc. THX, the THX Logo and THX Select 2 Plus are trademarks of THX Ltd., which may be registered in some jurisdictions. All rights reserved.
Marvell and the Marvell logo are registered trademarks of Marvell.
Bluetooth is a registered trademark of Bluetooth SIG, Inc. Bluetooth functionality requires a compat- ible A2DP profile Bluetooth-enabled device. Certain Bluetooth features may not be supported by all compatible Bluetooth-enabled devices, and/or the functionality of such features may be limited in certain devices.
HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trade- marks of HDMI Licensing LLC in the United States and other countries.
HDMI connection may not allow transmission of copyright-protected material, depending on the capability of the display device.
Microsoft, Windows Media, and the Windows logo are trademarks or registered trademarks of Microsoft Corporation.
SIRIUS and related marks are trademarks of Sirius Satellite Radio Inc.
iPhone, iPod, and iPod Touch are registered trademarks of Apple Computer, Inc., registered in the U.S. and other countries.
Freescale is a trademark of Freescale Semiconductor Inc. XM is a registered trademark of XM Satellite Radio Inc.
HDMI connection may not allow transmission of copyright-protected material, depending on the capability of the signal source.
1 Optional AS-BT100 Bluetooth Adapter required and sold separately.
2 SIRIUS and XM antennas and subscription services each sold separately and required to receive SIRIUS or XM radio.
3 Home network required.
© 2010 Pioneer Electronics (USA) Inc.
