Fall Clearance Blowout. Getting rid of all remaining stock of these modules. No more will be made. Enjoy the savings.
This is a fully built module, you plug and play on your euro format system.
-----------------------------------------------------------------------------------------------------------------------------------------
Module is in stock.A great alternative to the discontinued mutable instruments blades module. This custom module is functionally identical to the original. You can achieve the same sound pallet and both filters are 1v per octave compatible.I used the Mutable Instruments Blades Schematic to create these pcb cards. Nothing was added or taken away. It is circuit to circuit identical.
Sale comes with the module, power ribbon cable, and M3 screws.
0.1% Resistor tolerance used for filter core, internal scanner, and spectral distortion.
This will easily track 1V per octave very precisely on both filter channels.
---------------------------------------------------------------------------------------------------------------------------------------------------
Model: BLM Parallax Filter
Width: 18hp
Current: +150mA -140mA

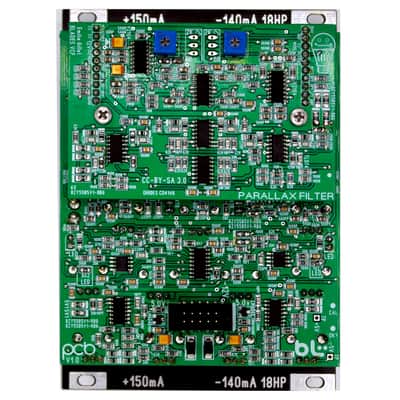

PCB LEVEL: 2 STACK, Power Connector on Level 1, Skiff Compatible.

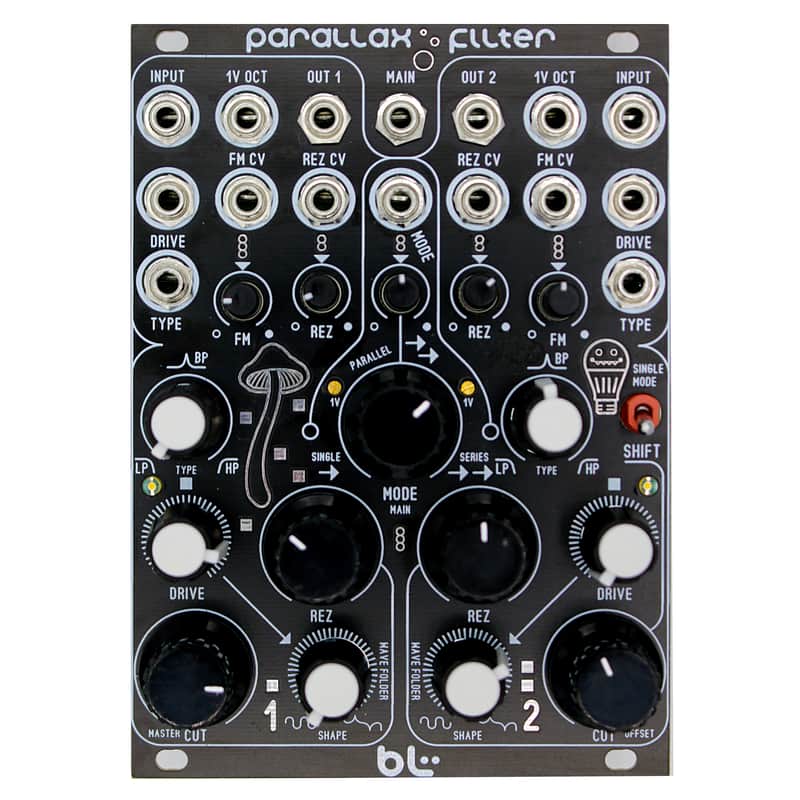

This module is a custom jacks on top, knobs on the bottom design of the discontinued mutable instruments Blades dual multi-mode filter.
Original Design by Émilie Gillet
-Dual Distortion with spectral color control
-Fully analog, based on the 2164 quad VCA chip.
-Frequency knob range: 8Hz to 18kHz.
-Audio input impedance: 30k.
-DC-coupled audio inputs.
-Filter mode CV input impedance: 50k.
-Other CV inputs impedance: 100k.
-All CV inputs handle audio-rate modulations.
The project files for this product are located on the Survival page of the blue lantern modules website.
CC-BY-NA 3.0
