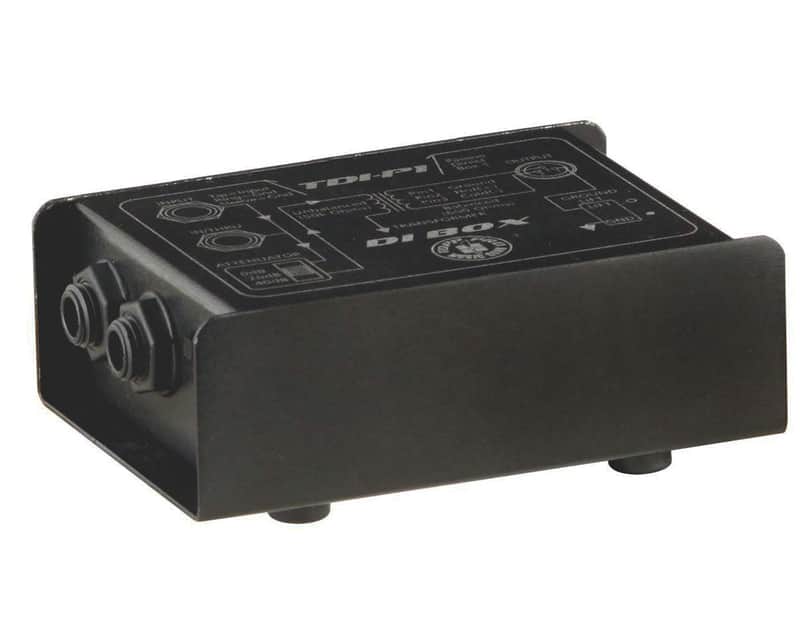

Topp Pro Music Gear - TDI-P1: Passive Direct Injection Box (D.I.) - Full Warranty!
New Pricezł118.56
Incl. VAT
+ Shipping
See similar gear from other Reverb sellers
Listed:over a month ago
Views:44
Saves:1
Offers:2
Miami, FL, United States
Our users rate Reverb
Passive Direct lnjection Box
ln: 1/4" TRS Electronically Unbalanced

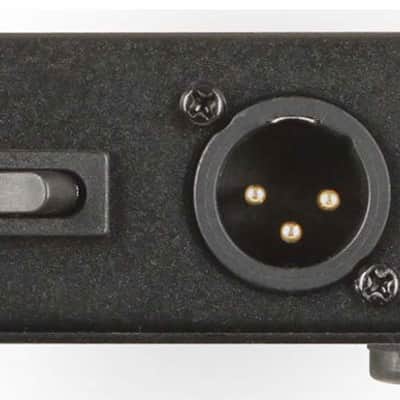

Out: Electronically Balanced XLR
Hard-wire Bypass Switch? Yes
Input Impedance 25 kilohms
Minimum Output Load Impedance 50 ohms
Recommended Load > 500 ohms
Output Impedance 5 ohms
EQ Amplifiers Pure Class-A Discrete J-FETs
Power Power consumption is +210mA with all LEDs on
Model TDI-P1 PASSIVE DI BOX
Input 1/4" mono Jack connector (Tip Hot, Sleeve Ground) parallel link output 1/4" Jack connector
for feeding to other equipment
Attenuator 0dB / 20dB / 40dB
Impedance Unbalanced 50K Ohms / Balanced 600 Ohms
Output 3 pins connector, transformer balanced, will drive lines from 600 Ohms
Frequency Response 10Hz to 30KHz ±1dB
Dimensions 127 x 76 x 45mm
Weight 0.54Kg
ln: 1/4" TRS Electronically Unbalanced
Out: Electronically Balanced XLR
Hard-wire Bypass Switch? Yes
Input Impedance 25 kilohms
Minimum Output Load Impedance 50 ohms
Recommended Load > 500 ohms
Output Impedance 5 ohms
EQ Amplifiers Pure Class-A Discrete J-FETs
Power Power consumption is +210mA with all LEDs on
Model TDI-P1 PASSIVE DI BOX
Input 1/4" mono Jack connector (Tip Hot, Sleeve Ground) parallel link output 1/4" Jack connector
for feeding to other equipment
Attenuator 0dB / 20dB / 40dB
Impedance Unbalanced 50K Ohms / Balanced 600 Ohms
Output 3 pins connector, transformer balanced, will drive lines from 600 Ohms
Frequency Response 10Hz to 30KHz ±1dB
Dimensions 127 x 76 x 45mm
Weight 0.54Kg
This item is sold As-Described
This item is sold As-Described and cannot be returned unless it arrives in a condition different from how it was described or photographed. Items must be returned in original, as-shipped condition with all original packaging.Learn More.
| Condition | B-Stock (Used) B-Stock items are sold by an authorized dealer or original builder, but have been opened, blemished, or used in some manner.Learn more |
|---|---|
