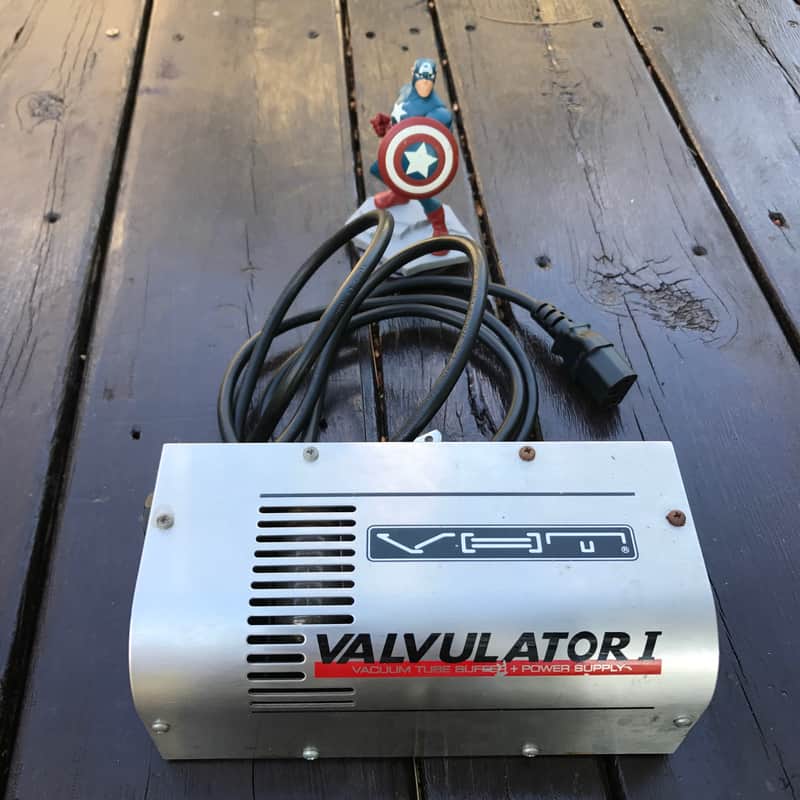

VHT Valvulator 1

The VHT Valvulator I Line Driver/Power Supply uses a vacuum tube-based buffer circuit to change your guitar signal from high to low impedance. As a result, your signal overcomes high-frequency degradation caused by cable capacitance, impedance effects, and signal degradation caused by the circuits of effects devices. Experience the same dynamic feel as you would get plugged directly into your amp.

VHT Valvulator Guitar Signal Vacuum Tube Buffer + Power Supply
Here is an excellent tone sweetener for your guitar signal. Swap out the tube for a little different sound and response. This unit cleans up and sweetens your sound, and also powers your other pedals.
Manufacturer's description from the internet:
The VALVULATOR I is a must-have accessory that combines two useful and powerful features, a Vacuum Tube Buffer/Line Driver, and a Multiple Output Regulated DC Power Supply, in a single, convenient, AC-powered unit. The VALVULATOR I is a ruggedly built, compact pedal board and professional/home studio tool that operates on standard AC wall current, NO WALL WARTS, and is housed in a rugged steel chassis topped with a sleek stainless steel vented cover.

Degradation of tonal quality is caused by three things:

Loss of high frequency response due to cable capacitance. Loss of signal level and high frequency response due to impedance effects. Signal degradation caused by the design of the circuitry in the effects device.
The VALVULATOR I solves all three of these problems using
a vacuum tube based Buffer circuit to change your guitar signal from high impedance to low impedance. You will be amazed at the renewed responsiveness of your instrument as well as the effect on your playing. In addition, the V I input stage utilizes the same circuitry as that found in the input stage of most guitar amplifiers. This means you get the same dynamic feel from your instrument as you would if you were plugged directly into your amp!The VALVULATOR I provides four regulated and isolated outputs which will supply you with all of the clean regulated power you need to insure maximum signal output and frequency response from your pedal devices. And because the power supply outputs are individually isolated, you never have to worry about ground loop hum.

The VALVULATOR I provides four regulated and isolated outputs which will supply you with all of the clean regulated power you need to insure maximum signal output and frequency response from you pedal devices. And because the power supply outputs are individually isolated, you never have to worry about ground loop hum.

Specifications
  • Input Impedance 1 megohm
  • Output Impedance 600 ohm
  • Gain Unity Gain at -20dB
  • Nominal Tube Complement 1 12AX7WB Sovtek (Russia Selected)
  • Power Supply Specifications
  ◦ 3 X 9VDC @ 80mA per output
  ◦ 1 X 12VDC @ 150mA Power requirement 15W, 50/60HZ
  • Actual Size: 6.75 x 3.5 x 3 (17 x 9 x 7.6)
  • Package Size: 9 x 6 x 4 (32 x 15 x 10)
  • Actual Weight: 3 (1.4)
  • Package Weight: 4 (1.8)

Captain America not included.
