Electro-Voice DL15BFH Black

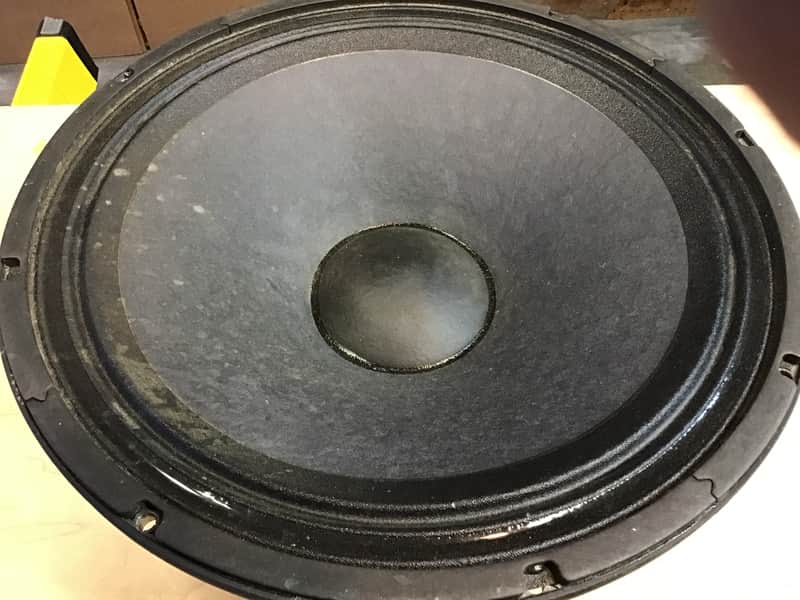

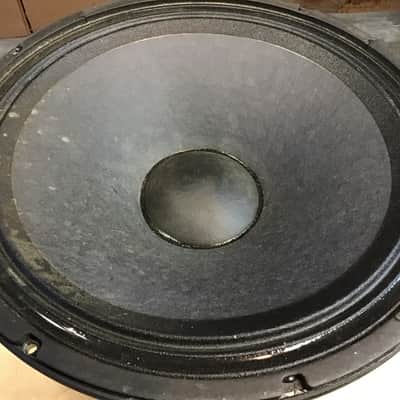

This speaker was removed from an Electro-voice speaker cabinet. It has very low hours on it. Couple of blemishes on the dust cover but otherwise is very good condition. Fully tested.

Description: 15-inch loudspeaker for sound-reinforcement applications from 45-2000 Hz. Ideal for medium-to-high- power bass boxes or two-way systems. Good choice for direct-radiating systems. EV's Ring-Mode Decoupling (RMD) employed for accurate transient response and low distortion. The ideal 15 in. for high-power bass boxes or 2-way systems. EV's RMD technology provides smooth vocal performance with low-frequency impact. Specs include a high power rating of 350 watts, 45 - 2,000 Hz frequency response, 8 ohms, 12 lbs.

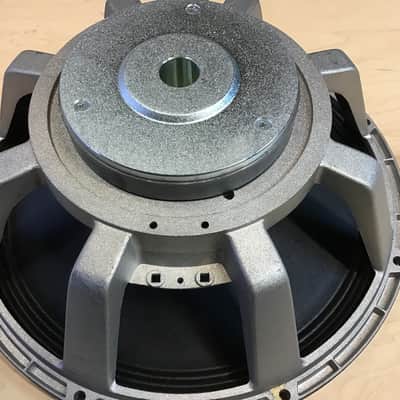

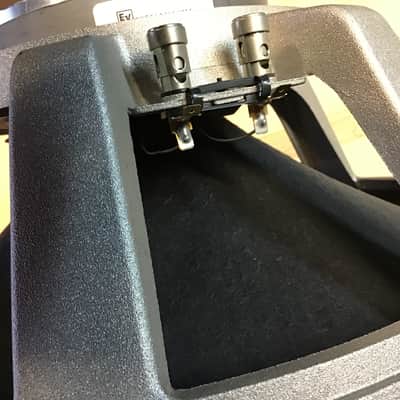

Woofers EV component woofers are high-efficiency designs highly refined from years of development and field experience. They employ extended-length voice coils for high-impact reproduction of dynamic low-frequency program. All woofers feature proprietary heat-transfer systems for unmatched power capacity and reliability. Kevlar(R)-fiber-composite cones are used to provide structural strength to resist collapse during explosive dynamic peaks and to provide internal mechanical damping to minimize resonances that can change the character of the sound at high levels. The DL15BFH woofer is made of a cast aluminium frame with push terminals, and features Ring-Mode Decoupling
Specifications

Power Handling: 350 Watts

Impedance: 8 ohms

Cone diameter: 15 in. (381 mm)

Coil diameter: 2.5 in. (63.5 mm)

Frequency range: 45-2,000 Hz

Long-term power rating (EIA): 350 W

Short-term power rating: 1,400 W

Sensitivity (1 W @ 1 m): 96 dB

Maximum SPL: 121.4 dB

Efficiency: 3.93%

Frame front diameter: 15.16 in. (305.0 mm)

Magnet diameter: 6.13 in. (155.6 mm)

Overall depth: 6.00 in. (152.4 mm)

Mounting bolt circle diameter: 14.563 in. (369.9 mm)

Baffle cutout diameter: 14.063 in. (357.2 mm)

Net weight: 12.0 lbs (5.4 kg)
