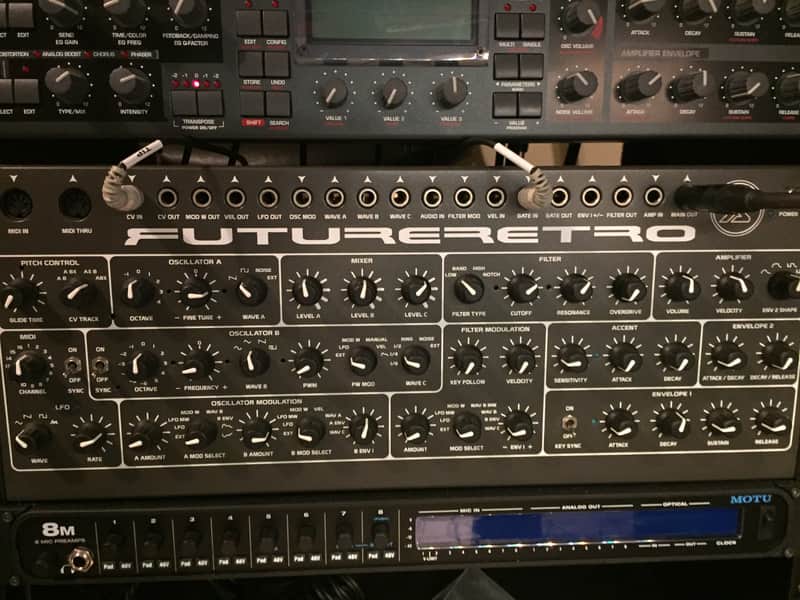

Future Retro XS - Rare Semi Modular

Purchased right before I went into building a modular system and just stopped having a need for it. Its been used lightly but only noticeable marks are on the rack ears. Been in a smoke free studio. I have turned it on 2 times in the last 12 months. Thats how much use it has received. Hopefully someone can give it a nice home where it may be played with on a regular basis. :)

 The XS is a true semi-modular analog synthesizer with a universe of sonic possibilities just waiting to be discovered. Our versatile design allows it to be used as either a rackmount or desktop instrument, and its compact size makes it ideal for musicians on the go.

Specifications

MIDI
Channel: 1-16
MIDI Messages Recognized: Pitch C2 to C7, Note On/Off, Pitch Bend +/- 2 semitones, Velocity, Mod Wheel, MIDI Clock

LFO
Waveshapes: triangle, saw, square, random
Free-running Rate: (MIDI SYNC Off) 4 seconds to 18 Hz
MIDI Clock Divisions: (MIDI SYNC On) 8 bars, 4 bars, 2 bars, 1 bar; 1/2, 3/8, 1/3, 1/4, 3/16, 1/6, 1/8, 3/32, 1/12, 1/16, 1/24, 1/32

OSCILLATOR A
Total Frequency Range: 0.5 Hz to 100 kHz
Octave Control Range: 6 octaves
Fine Tune Control Range: -6 to +6 cents (master fine tuning for both oscillators)
Waveforms: saw, square, white noise, external audio

OSCILLATOR B
Total Frequency Range: 0.5 Hz to 100 kHz
Oscillator Sync: on/off (syncs to Oscillator A)
Octave Control Range: 12 octaves
Frequency Control Range: -9 to +9 semitones
Waveforms: sine, triangle, saw, square/pulse width
Pulse Width Modulation Amount: typically 50% to 3%
Pulse Width Modulation Sources: external source, LFO, Mod Wheel, manual adjust, Velocity, Envelope 1

WAVE C
Waveforms: 1/8, 1/4, 1/2 Oscillator B sub oscillator divisions, ring modulator, white noise source, external audio

OSCILLATOR MODULATION
Modulation Sources for Oscillator A: external source, LFO, LFO controlled by Mod Wheel, Mod Wheel, Waveform B, Waveform B controlled by Envelope 1, Envelope 1 (positive and negative polarity)
Modulation Sources for Oscillator B: external source, LFO, LFO controlled by Mod Wheel, Mod Wheel, Velocity, Waveform A, Waveform A controlled by Envelope 1, Waveform C, and Envelope 1 positive polarity

MIXER
Controls: level A, level B, level C (all capable of overdriving filter input)

FILTER
Filter Types: (12 dB) lowpass, bandpass, highpass, notch
Filter Frequency Range: 5 Hz to 18 kHz
Resonance: 0 to self oscillation
Overdrive: clean to fully crunched

FILTER MODULATION
Key Follow: 0 to 100%
Velocity: amplitude sensitivity control for Envelope 1
Modulation Sources: external source, LFO, LFO controlled by Mod Wheel, Mod Wheel, Waveform B, Waveform B controlled by Mod Wheel, Waveform B controlled by Envelope 1, Waveform C
Envelope 1: negative and postive polarity covering 10 octaves

ACCENT
Sensitivity: 0 to +10 volts
Attack Time: 0.5 milliseconds to 4 seconds
Decay Time: 2 milliseconds to 10 seconds

ENVELOPE 1
Key Sync: on/off (envelope retriggering)
Attack Time: 0.5 milliseconds to 4 seconds
Decay Time: 2 milliseconds to 10 seconds
Sustain Level: 0 to 100% (+10 volts max)
Release Time: 1 millisecond to 10 seconds

ENVELOPE 2
Attack Time: 1 millisecond to 4 seconds
Decay Time: 3 milliseconds to 7 seconds
Sustain Level: 100%
Release Time: 3 milliseconds to 7 seconds

AMPLIFIER
Velocity: 0 to 100%
Envelope Shapes for Control: attack/decay, attack/sustain/release, accented decay/sustain/release, accented decay/normal decay

INPUTS/OUTPUTS
Pitch CV In: 1 V/Oct standard, typically 0 to +5 volts (+15 volts max)
Pitch CV Out: 1 V/Oct standard, 0 to +5 volts
Mod Wheel Out: 0 to +10 volts
Velocity Out: 0 to +10 volts
LFO Out: -5 to +5 volts
Oscillator Modulation In: typically -10 to +10 volts (+/-15 volts max)
Waveform A: -5 to +5 volts
Waveform B: -5 to +5 volts
Waveform C: 0 to +15 volts (for sub oscillator waves), -5 to +5 volts (for ring modulator and white noise)
Audio In: accepts line-level audio signals
Filter Modulation In: typically -10 to +10 volts (+/-15 volts max)
Velocity In: typically 0 to +10 volts (+/-15 volts max)
Gate In: gate-on equals +1.5 volts or higher, gate-off equals 0 volts
Gate Out: 0 to +14 volts
Envelope 1 Out +/-: 0 to +10 volts
Filter Out/Amp In Range: -15 to +15 volts max
Main Out Range: 11 volts peak/peak max

POWER
Universal Power Supply: +15 and -15 volts DC, can be used with power main voltages ranging from 90-260 volts AC

DIMENSIONS
Rackmount: 19" standard rack width, 4 vertical rack spaces, 2.75" deep
Desktop: 17.5" width, 7.5" depth, 3" height

WEIGHT
4 lbs.
