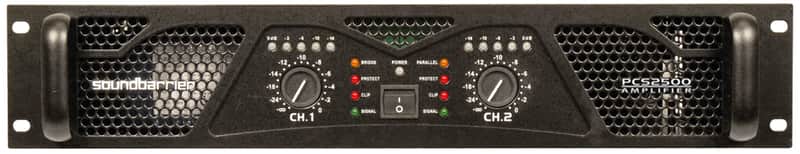

Soundbarrier Pro Amplifier PCS-2500 Professional Amplifier

TECHNICAL SPECIFICATIONS:


2300W @ 4Ω Bridged

400:1 damping factor

Handles 2 Ohm Loads

XLR Balanced & Combi (XLR & 1/4" TRS) Balanced and Unbalanced Input Connectors per channel

Class H Circuitry for ultimate reliability & efficiency

High current binding post (Bridge mode) and Speakon type outputs per channel

Mode Selector Switch (Parallel, Stereo, Bridged)

Compressor On / Off Switch

Input Sensitivity Switch (1.44V, 1.0V, 0.7V)

Ground Lift Switch

LED indicators for signal, clip, level and protection for each channel

Parallel and Bridge Mode LED Indicators

Precision Rotary level controls

Standard 19" Rackmount width + 2U height

Dual Variable Speed Cooling fans

2 Ohm Dual (Per Ch.) 1350W 4 Ohm Dual (Per Ch.) 1050W 8 Ohm Dual (Per Ch.) 600W 4 Ohm (Bridge / Mono) 2300W 8 Ohm (Bridge / Mono) 1750W Amplifier Type Class H Frequency Response ±.25dB from 15Hz-25kHz (+0/-1dB) Total Harmonic Distortion (THD) <0.03% Intermodulation Distortion (IMD) (60Hz & 7kHz @ 4:1) <0.04% Slew Rate (Input Filter Limited) 40V/us Damping Factor Greater Than 400:1 Input Sensitivity 0.77V - 1.0V - 1.44 Selectable Input Impedance (Balanced) 10K Ohm Balanced to Ground Front Panel Controls Level Rotary, Power Switch Front Panel Indicators Signal LED, Power LED, Clip LED, Level LED's, Protection LED, Parallel Mode LED, Bridge Mode LED Rear Panel Controls Input Sensitivity Switch (0,77V, 1.0V, 1.44V), Compressor On / Off Switch, Ground Lift Switch, Mode Selector Switch (Stereo, Parallel, Bridged), Circuit Breaker
Input Connectors 2 x XLR Active Balanced, 2 x Combi (XLR & 1/4" TRS) Balanced and Unbalanced (One per Channel) Output Connectors High Current Binding Post Connector (For Bridge Mode) & Speakon type connector per channel. Protection Protection Against: Shorted, open or mismatched loads; overloaded power supplies; excessive temperature; Subsonic and Ultra Sonic Phenomenon; protects speakers from Input / Output DC transients & Soft Starts Cooling Internal Heat Sinks and Dual Variable speed fan Power Supply 115V/60Hz (220V/50Hz available upon request) Dimensions 482mm x 383mm x 88mm (Standard 19" Rackmount Width + 2U) Net Weight 51 lbs (23 kg) 2 Ohm Dual (Per Ch.) 1350W 4 Ohm Dual (Per Ch.) 1050W 8 Ohm Dual (Per Ch.) 600W 4 Ohm (Bridge / Mono) 2300W 8 Ohm (Bridge / Mono) 1750W Amplifier Type Class H Frequency Response ±.25dB from 15Hz-25kHz (+0/-1dB) Total Harmonic Distortion (THD) <0.03% Intermodulation Distortion (IMD) (60Hz & 7kHz @ 4:1) <0.04% Slew Rate (Input Filter Limited) 40V/us Damping Factor Greater Than 400:1 Input Sensitivity 0.77V - 1.0V - 1.44 Selectable Input Impedance (Balanced) 10K Ohm Balanced to Ground Front Panel Controls Level Rotary, Power Switch Front Panel Indicators Signal LED, Power LED, Clip LED, Level LED's, Protection LED, Parallel Mode LED, Bridge Mode LED Rear Panel Controls Input Sensitivity Switch (0,77V, 1.0V, 1.44V), Compressor On / Off Switch, Ground Lift Switch, Mode Selector Switch (Stereo, Parallel, Bridged), Circuit Breaker
Input Connectors 2 x XLR Active Balanced, 2 x Combi (XLR & 1/4" TRS) Balanced and Unbalanced (One per Channel) Output Connectors High Current Binding Post Connector (For Bridge Mode) & Speakon type connector per channel. Protection Protection Against: Shorted, open or mismatched loads; overloaded power supplies; excessive temperature; Subsonic and Ultra Sonic Phenomenon; protects speakers from Input / Output DC transients & Soft Starts Cooling Internal Heat Sinks and Dual Variable speed fan Power Supply 115V/60Hz (220V/50Hz available upon request) Dimensions 482mm x 383mm x 88mm (Standard 19" Rackmount Width + 2U) Net Weight 51 lbs (23 kg) 2 Ohm Dual (Per Ch.) 1350W 4 Ohm Dual (Per Ch.) 1050W 8 Ohm Dual (Per Ch.) 600W 4 Ohm (Bridge / Mono) 2300W 8 Ohm (Bridge / Mono) 1750W Amplifier Type Class H Frequency Response ±.25dB from 15Hz-25kHz (+0/-1dB) Total Harmonic Distortion (THD) <0.03% Intermodulation Distortion (IMD) (60Hz & 7kHz @ 4:1) <0.04% Slew Rate (Input Filter Limited) 40V/us Damping Factor Greater Than 400:1 Input Sensitivity 0.77V - 1.0V - 1.44 Selectable Input Impedance (Balanced) 10K Ohm Balanced to Ground Front Panel Controls Level Rotary, Power Switch Front Panel Indicators Signal LED, Power LED, Clip LED, Level LED's, Protection LED, Parallel Mode LED, Bridge Mode LED Rear Panel Controls Input Sensitivity Switch (0,77V, 1.0V, 1.44V), Compressor On / Off Switch, Ground Lift Switch, Mode Selector Switch (Stereo, Parallel, Bridged), Circuit Breaker
Input Connectors 2 x XLR Active Balanced, 2 x Combi (XLR & 1/4" TRS) Balanced and Unbalanced (One per Channel) Output Connectors High Current Binding Post Connector (For Bridge Mode) & Speakon type connector per channel. Protection Protection Against: Shorted, open or mismatched loads; overloaded power supplies; excessive temperature; Subsonic and Ultra Sonic Phenomenon; protects speakers from Input / Output DC transients & Soft Starts Cooling Internal Heat Sinks and Dual Variable speed fan Power Supply 115V/60Hz (220V/50Hz available upon request) Dimensions 482mm x 383mm x 88mm (Standard 19" Rackmount Width + 2U) Net Weight 51 lbs (23 kg)
