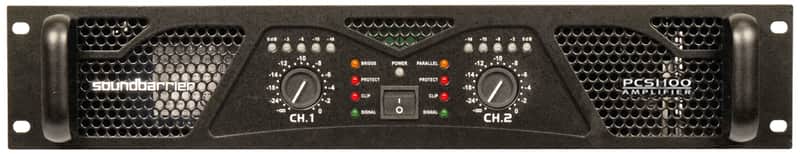

Soundbarrier Pro Amplifier PCS-1100 Professional Amplifier
Price€381.18
+ Shipping
This listing has ended
See similar gear from other Reverb sellers
Listed:over a month ago
Views:47
Saves:0
Thackerville, OK, United States
Our users rate Reverb
TECHNICAL SPECIFICATIONS:
2 Ohm Dual (Per Ch.)480W4 Ohm Dual (Per Ch.)300W8 Ohm Dual (Per Ch.)205W4 Ohm (Bridge / Mono)900W8 Ohm (Bridge / Mono)560WAmplifier TypeClass HFrequency Response±.25dB from 15Hz-25kHz (+0/-1dB)Total Harmonic Distortion (THD)<0.03%Intermodulation Distortion (IMD) (60Hz & 7kHz @ 4:1)<0.04%Slew Rate (Input Filter Limited)40V/usDamping FactorGreater Than 400:1Input Sensitivity0.77V - 1.0V - 1.44 SelectableInput Impedance (Balanced)10K Ohm Balanced to GroundFront Panel ControlsLevel Rotary, Power SwitchFront Panel IndicatorsSignal LED, Power LED, Clip LED, Level LED's, Protection LED, Parallel Mode LED, Bridge Mode LEDRear Panel ControlsInput Sensitivity Switch (0,77V, 1.0V, 1.44V), Ground Lift Switch, Mode Selector Switch (Stereo, Parallel, Bridged), Circuit Breaker, Voltage Selector Switch (115V / 230V)Input Connectors2 x XLR Active Balanced, 2 x 1/4" TRS Unbalanced (One per Channel)Output ConnectorsHigh Current Binding Post Connector (For Bridge Mode) & Speakon type connector per channel.ProtectionProtection Against: Shorted, open or mismatched loads; overloaded power supplies; excessive temperature; Subsonic and Ultra Sonic Phenomenon; protects speakers from Input / Output DC transients & Soft StartsCoolingInternal Heat Sinks and Variable speed fanPower Supply115V/60Hz - 220V/50Hz SwitchableDimensions482mm x 383mm x 88mm (Standard 19" Rackmount Width + 2U)Net Weight31 lbs (14 kg)
900W @ 4Ω Bridged400:1 damping factor Handles 2 Ohm Loads XLR Balanced & 1/4" TRS Unbalanced Input Connectors per channel Class H Circuitry for ultimate reliability & efficiency High current binding post (Bridge mode) and Speakon type outputs per channel 115V/220V Switchable Mode Selector Switch (Parallel, Stereo, Bridged) Input Sensitivity Switch (1.44V, 1.0V, 0.7V) Ground Lift Switch LED indicators for signal, clip, level and protection for each channel Parallel and Bridge Mode LED Indicators Precision Rotary level controls Standard 19" Rackmount width + 2U height Variable Speed Cooling fan
2 Ohm Dual (Per Ch.)480W4 Ohm Dual (Per Ch.)300W8 Ohm Dual (Per Ch.)205W4 Ohm (Bridge / Mono)900W8 Ohm (Bridge / Mono)560WAmplifier TypeClass HFrequency Response±.25dB from 15Hz-25kHz (+0/-1dB)Total Harmonic Distortion (THD)<0.03%Intermodulation Distortion (IMD) (60Hz & 7kHz @ 4:1)<0.04%Slew Rate (Input Filter Limited)40V/usDamping FactorGreater Than 400:1Input Sensitivity0.77V - 1.0V - 1.44 SelectableInput Impedance (Balanced)10K Ohm Balanced to GroundFront Panel ControlsLevel Rotary, Power SwitchFront Panel IndicatorsSignal LED, Power LED, Clip LED, Level LED's, Protection LED, Parallel Mode LED, Bridge Mode LEDRear Panel ControlsInput Sensitivity Switch (0,77V, 1.0V, 1.44V), Ground Lift Switch, Mode Selector Switch (Stereo, Parallel, Bridged), Circuit Breaker, Voltage Selector Switch (115V / 230V)Input Connectors2 x XLR Active Balanced, 2 x 1/4" TRS Unbalanced (One per Channel)Output ConnectorsHigh Current Binding Post Connector (For Bridge Mode) & Speakon type connector per channel.ProtectionProtection Against: Shorted, open or mismatched loads; overloaded power supplies; excessive temperature; Subsonic and Ultra Sonic Phenomenon; protects speakers from Input / Output DC transients & Soft StartsCoolingInternal Heat Sinks and Variable speed fanPower Supply115V/60Hz - 220V/50Hz SwitchableDimensions482mm x 383mm x 88mm (Standard 19" Rackmount Width + 2U)Net Weight31 lbs (14 kg)
900W @ 4Ω Bridged
| Condition | Brand New (New) Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more |
|---|---|
| Brand | |
| Model |
|
| Finish |
|
| Categories | |
| Year |
|
| Made In |
|
