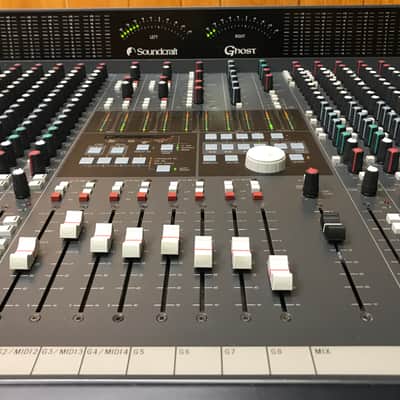

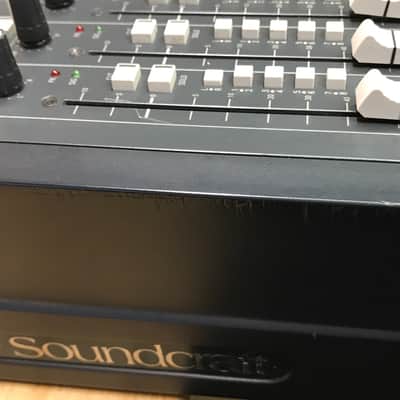

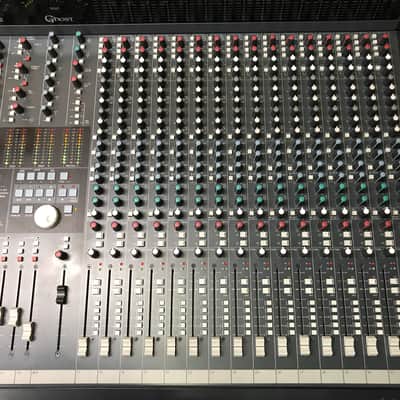

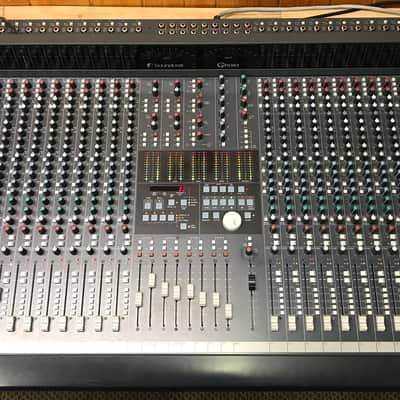

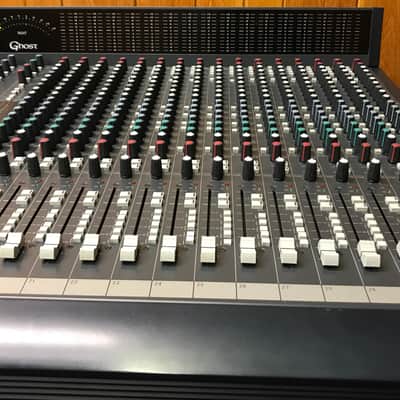

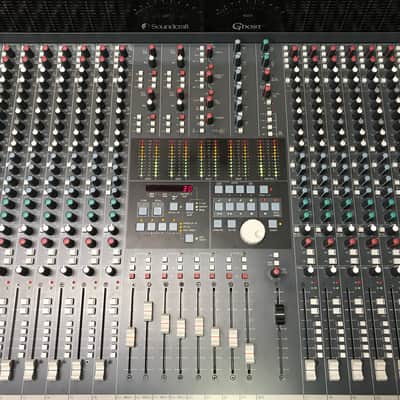

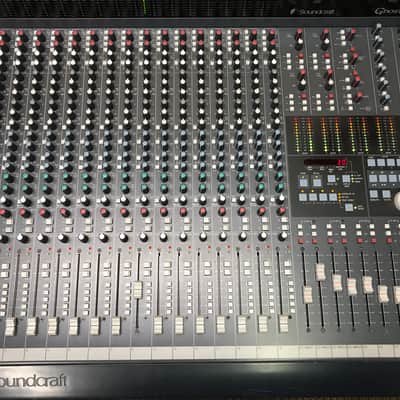

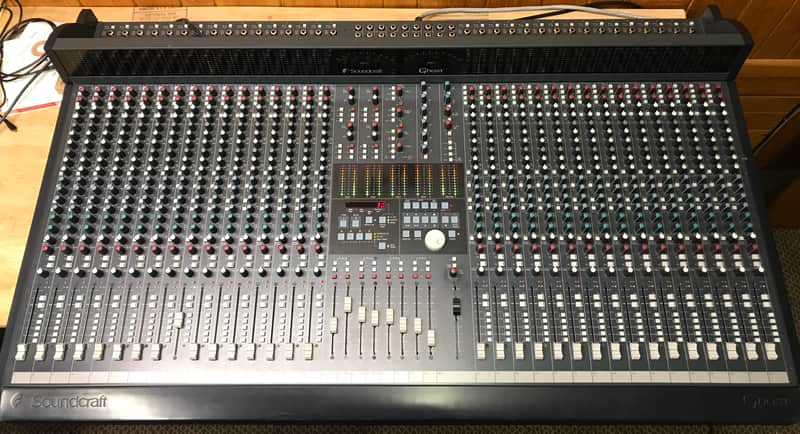

Soundcraft Ghost 32 Channel Mixing Console with Meter Bridge

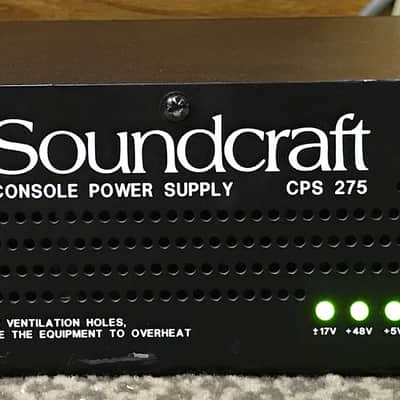

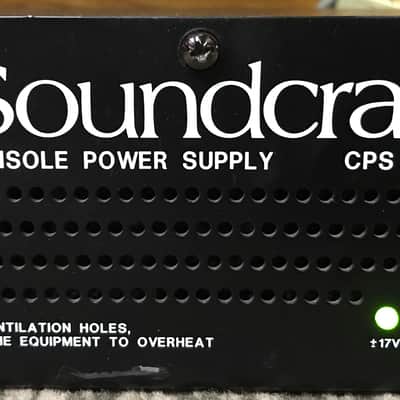

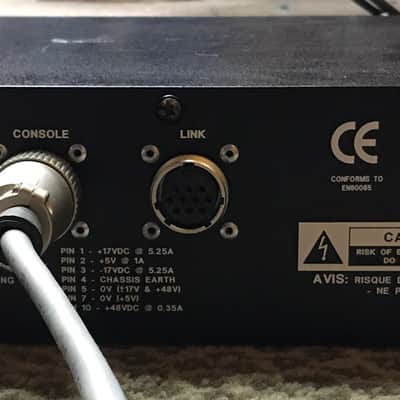

This is an incredible piece of gear, at an extremely affordable price. Our pro-audio techs have done complete inspection, cleaning and maintenance on this console. Console will include the CPS-275 Power supply, meter bridge and cables.

Console Specifications:

INPUT CHANNEL
Microphone input

• Sensitivity range for 0VU output..................................-8dBu to -60dBu

• Maximum input level.....................................................+14dBu

• Input impedance.............................................................2k ohm

• Common Mode Rejection Ratio(CMRR) 1kHz..........Typical figure -90dB @ sensitivity -30dBu

• Equivalent input noise EIN.....................................22Hz-22kHz measured at insert point -128dBu @ sensitivity -60dBu

• 150 ohm mic input load.................................-122dBu @ sensitivity -30dBu


Input Channel

• Sensitivity range for 0VU output..................................+12dBu to -40dBu

• Maximum input level...................................................+34dBu

• Input impedance..........................................................15k ohm

• Common Mode Rejection Ratio(CMRR) 1kHz..........-60dB @ sensitivity 0dBu

Insert send & return

• Nominal level.....................................................................-2dBu

• Maximum level ..............................................................+22dBu
• Maximum send load .....................................................2k ohm

Direct Output level

• Channel output selected................................................-2dBu

• Group output selected..........+4dBu/-10dBV link selected

Tape Return input

• Sensitivity at calibrated centre detent.....................+4dBu

• Tape trim range .............................................-15dB to +15dB

• Input impedance.......................................................>24k ohm

• Common Mode Rejection Ratio(CMRR) 1kHz: ...........................-60dB @ Calibrated detent


Low Cut Filter

• Frequency ...........................................................................100Hz

• Type of filter ....................................3 pole, 18dB per octave


Equaliser section

• HF Eq. turnover frequency ............................................12kHz

• Maximum boost/cut...................................................+/- 15dB

• LF Eq. turnover frequency................................................60Hz

• Maximum boost/cut...................................................+/- 15dB

• HMF Eq. frequency range...........................400Hz to 20KHz

• Q range .............................................................................0.7 to 6

• Maximum boost/cut...................................................+/- 15dB

• LMF Eq. frequency range..............................25Hz to 1.5kHz

• Q range .............................................................................0.7 to 6

• Maximum boost/cut...................................................+/- 15dB


MASTER SECTION
Nominal levels

• Group output level.................+4dBu/-10dBV link selected
• Group insert level.............................................................-2dBu
• Aux output level ..............................................................+4dBu
• Mix output level ..............................................................+4dBu
• Mix insert level..................................................................-2dBu
• Mix B output level...........................................................+4dBu
• CRM/ALT/Headphones level ........................+14dBu at maximum
• Studio outputs..................................................................+4dBu2
• Track inputs ...................................................................+4dBu
• Stereo return inputs .......................................................+4dBu


Console Input/Output circuit types

• Electronically balanced inputs:Microphone, Line, Mix B, Stereo Return, 2-TrackUnbalanced 75ohms inserts: Channel, Group, MixUnbalanced 75ohms outputs: Channel DirectGround Compensated 75ohms outputs:Group, Studio, Aux, Mix & Mix B


TYPICAL CONSOLE PERFORMANCE
Attenuation. All at 1kHz

• Long Fader attenuationFrom top to bottom.........................................................-90dB

• Mix B rotary fader attenuationFrom max to min ..............................................................-70dB

• Mute attenuation Channel & MixB............................-80dB

• Pan isolation, ie from left to right..............................-70dB


THD+n. (harmonic distortion)

• 1dB below clipping, 1kHzMic/Line to Direct output.............................0.002% EQ out.................................................................................0.003% EQ in

• MixB to Direct out (Swap pressed)...........................0.002%


Direct output noise

• 22Hz-22kHz Mic sensitivity @ -10dBChannel Fader at unity..................................-95dBu EQ out.................................................................................-93dBu EQ in

Frequency response

• Mic/Line input to any output .......................20Hz - 20kHz.....................................................................................(+0/-0.5dB)......................................................................Sensitivity @ 30dB


Crosstalk

• Mic input to Line input crosstalk.............-100dB @ 1kHz

• Line input to Mic input crosstalk...............-90dB @ 1kHz
• Mix B to Channel crosstalk............................-80dB @ 1kHz
• Channel to Mix B crosstalk............................-75dB @ 1kHz


Bus noise

• 22Hz-22kHz Channel faders down+4dBu/-10dBV selected to +4dBu
• Group outputs 1 to 8
• Group fader at unity, nothing routed .....................-90dBu
• 24 channels routed, chan faders down...................-80dBu
• 32 channels routed, chan faders down...................-78dBu


Mix outputs L & R

• Mix fader at unity, nothing routed..........................-90dBu
• 24 channels routed, chan faders down...................-80dBu
• 32 channels routed, chan faders down...................-78dBu


Dimensions and weights (kg/lb)

• 24 1059.36mm (41.71”).............................44.0/97
• 32 1303.20mm (51.31”) ..........................53.6/118
• 24 exp. 815.52mm (32.11”)...............................33.0/73
