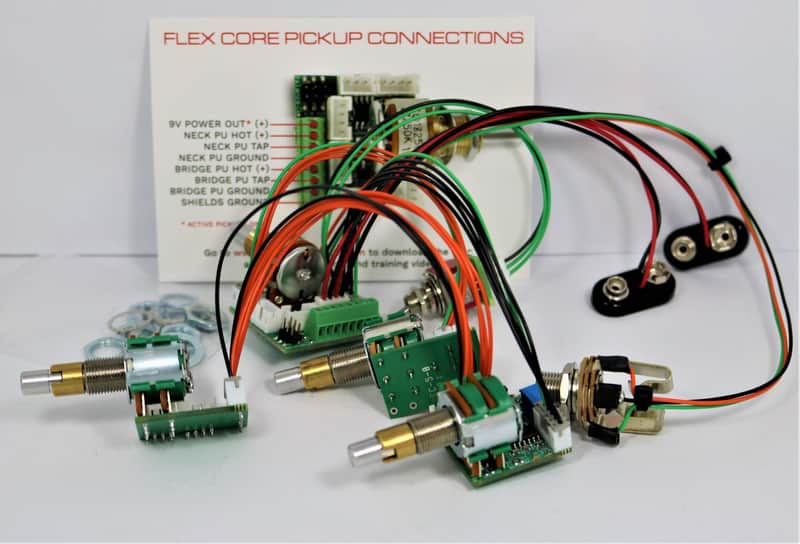

Flex Core 4 band Preamp 4 controls one switch Trickfish Mike pope 500-SYSTEM-3 Chrome Mini Switch

This Version has 4 controls and one switch 1.Volume/Tone 2.Blend 3.Bass/Treble 4.High Mid/ Low Mid Chrome mini switch for active passive.
FEATURES:

• • High performance, wide range onboard bass preamp with low noise and wide bandwidth
  • Musical EQ with LOTS of flexibility… works with 2, 3, or 4 bands
  • All wire harnesses are PREWIRED and plug-and-play
  • Works with almost any kind of pickup
  • Solderless screw terminals for pickup connection
  • 18V or 9V operation
  • Most installations require NO SOLDERING

The Flexcore requires a control cavity depth of 1¼" for installation of the controls. Each standard non stacked control accepts a 6mm set screw knob, while the stacked controls accept an 8mm lower, and 6mm upper set screw style knob.
