Elby Designs ES11 Triple Comparator
This gear has sold
See similar gear from other Reverb sellers
Listed:9 years ago
Views:408
Saves:6
Offers:1
Chicago, IL, United States
Our users rate Reverb

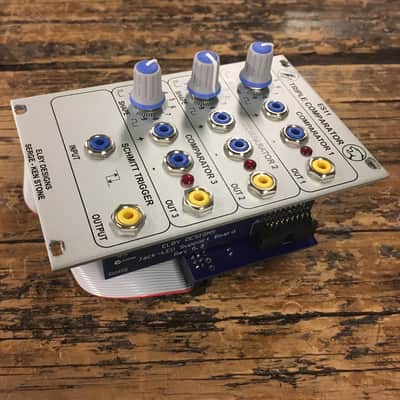

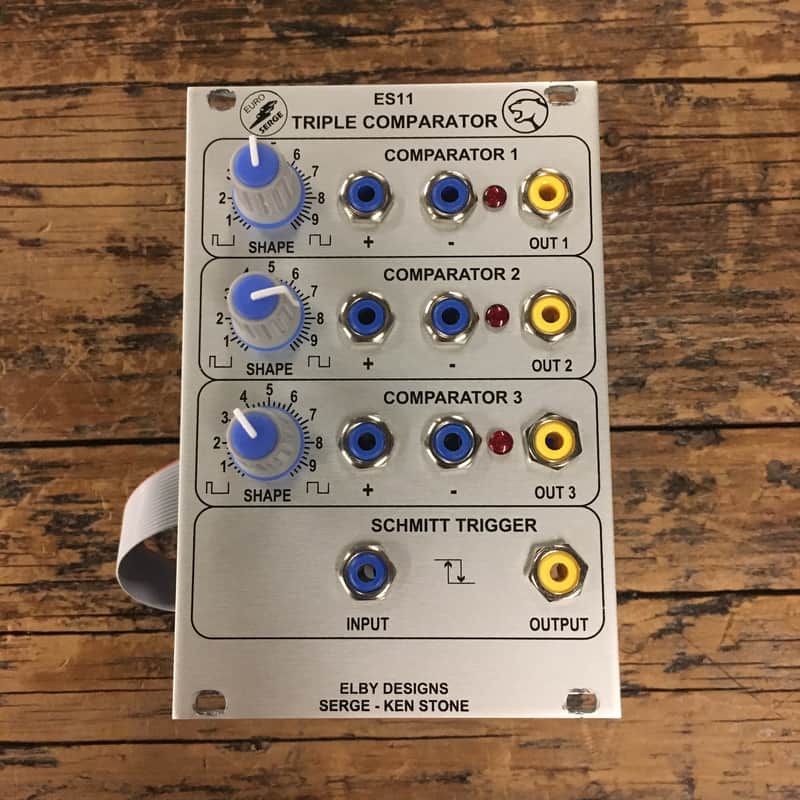

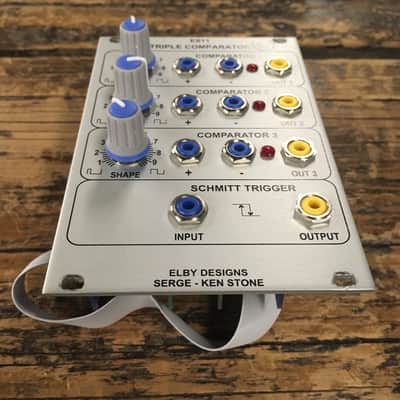

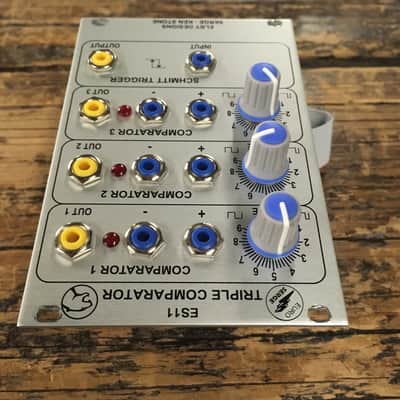

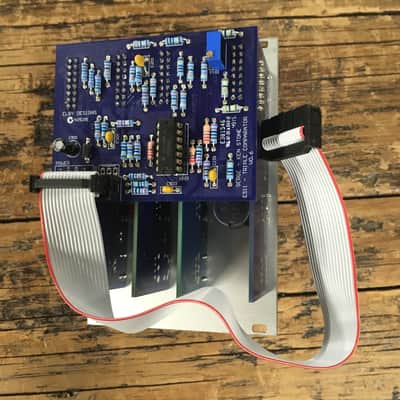

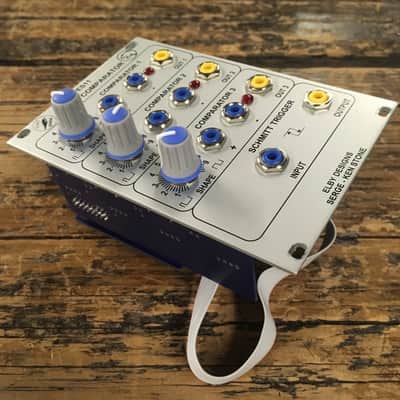

Elby Designs ES11 Triple Comparator in excellent condition
"The Triple Comparator and Schmitt Trigger consists of three independent functions which are useful in the production of square waves and variable pulse waves. The Comparator reference level can be a time-varying control voltage, a complex audio signal, or a fixed preset voltage. Additionally, the comparators are useful for level detection and for logic decisions based on amplitude.
The module also contains a single, non-adjustable, Schmitt trigger. The output of the Schmitt trigger will rise to about 5 volts when the input falls below approximately 0.6 volts and will fall to approximately 0 volts when the input rises over approximately 4.3 volts."
Next (business) day shipping. Will ship worldwide.
"The Triple Comparator and Schmitt Trigger consists of three independent functions which are useful in the production of square waves and variable pulse waves. The Comparator reference level can be a time-varying control voltage, a complex audio signal, or a fixed preset voltage. Additionally, the comparators are useful for level detection and for logic decisions based on amplitude.
The module also contains a single, non-adjustable, Schmitt trigger. The output of the Schmitt trigger will rise to about 5 volts when the input falls below approximately 0.6 volts and will fall to approximately 0 volts when the input rises over approximately 4.3 volts."
Next (business) day shipping. Will ship worldwide.
| Listed | 9 years ago |
|---|---|
| Condition | Excellent (Used) Excellent items are almost entirely free from blemishes and other visual defects and have been played or used with the utmost care.Learn more |
| Brand | |
| Model |
|
| Categories |
