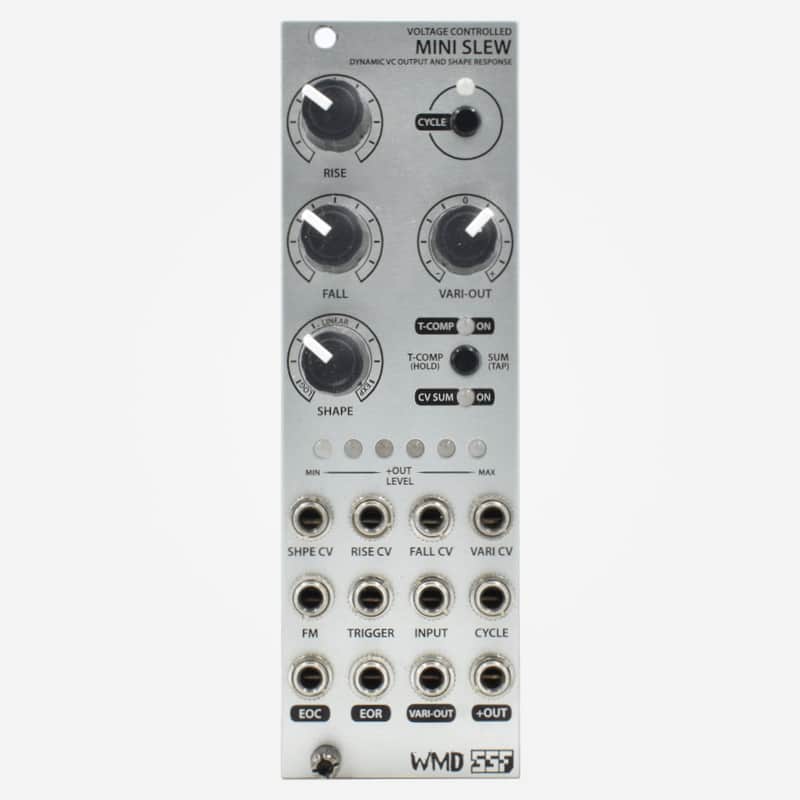

WMD/SSF VC MINI SLEW Eurorack Slew Based Cycling Function Generator Module

VC Mini slew - similar to a Make Noise Function but with some minor improvements and WMD build quality!

The ultimate slew-based function generator! MINI SLEW is a feature packed function generator and voltage controlled slew limiter, excellent as an envelope, LFO, Clock, Slew/Portomento, VC Trigger to gate, envelope follower, and more!

Transient functions are generated using the rise, fall and shape controls.

Complex functions can be generated using the voltage controlled shape and vari-out via direct CV inputs.

MINI SLEW features a novel time compensation mode (T-COMP) which permits the timing of the transient to remain relatively constant while the shape parameter is adjusted, so modulating shape from Log to Lin to Expo won't affect envelope time!

CV SUM mode permits a single CV patched into rise or fall to process both parameters or two CVs patched into rise and fall to be summed and applied to both parameters.

VARI-OUT knob and jack allow for an attenuverted output along with the unity output; Voltage control over VARI-OUT knob allows for exceptional control over scaling and polarization of output.

Additional features include VC cycle (toggle on/off), end of rise and end of fall outputs, FM input and an LED voltmeter for monitoring the amplitude of the direct positive output.

Specifications:

8HP
68 mA +12V
50 mA -12V
0 mA 5V
25 mm deep

Note: This is a used item, and while it is guaranteed to be fully functional it is almost sure to also contain "rack rash" on the mounting holes and have some minor scratches on the panel from use. It will include a ribbon cable, m3 screws, and a box, but not the original box.
