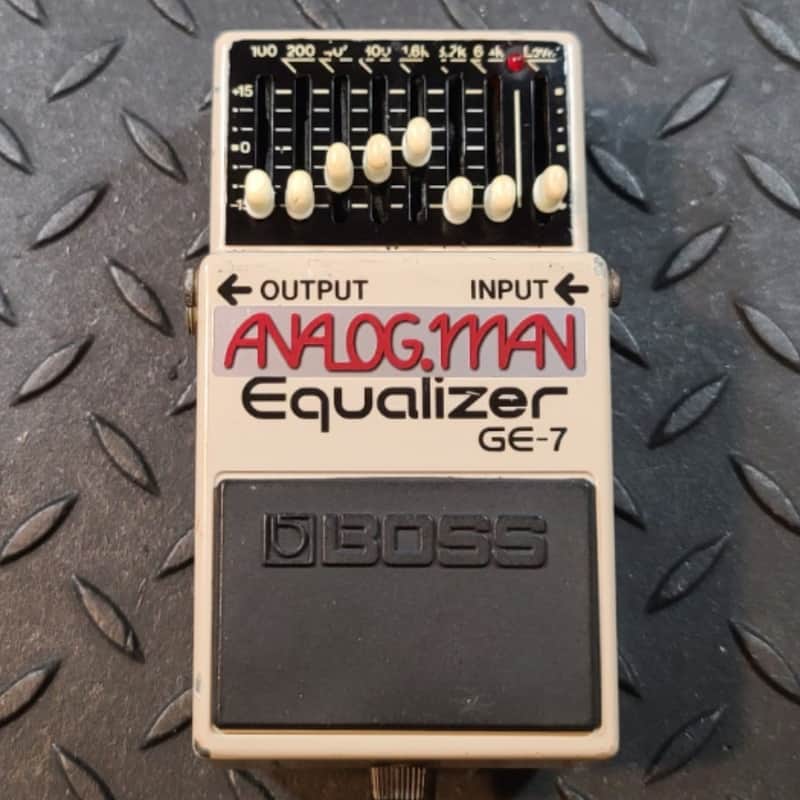

Analogman Boss GE-7 Graphic Equalizer Pro Mod EQ Japan Black Label Vintage Converted 9vDC PSA MIJ

From Analogman:
The GE-7 has seven bands ranging from 100Hz to 6.4kHz, ideal for tweaking guitar sounds, with boost/cut of +/- 15dB per band. This lets you completely control your sound and eliminate unwanted feedback, particularly when connected after a distortion effect.

The Pro mod is designed to improve clarity and lower the noise issues that the stock GE-7's have. This is accomplished by upgrading the chips and tone capacitors. We replace the cheap stock tone capacitors with high quality film capacitors like we use in the rest of our effects. This improves the overall clarity of the pedal.

VOLTAGE : The stock GE-7 can not be run over 15V. We modify it so it will run
fine on 18V, which will give even more clarity and headroom to the pedal.

The stock GE-7 can add some noise if you move the sliders away from center. Even bringing the two lowest sliders DOWN will add noise, try it! Our mod replaces three chips with the King of Tone chip, which is a low noise chip designed for tone controls so it's perfect in this application. These chips take about 40% more power (pedal goes from 16mA to 23mA), so a battery will not
last as long, better to use a power supply. A normal alkaline battery will still last over 15 hours, so you can use batteries if you want.

We also change a bunch of cheap capacitors used for tone control to high grade metal film caps. This lowers noise and improves tone.

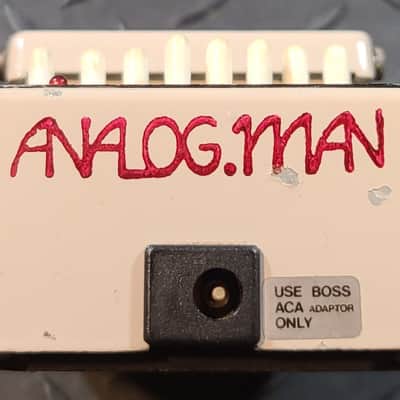

This is a black label MIJ Japan GE-7 that was originally ACA spec (12v power supply/daisy chain/9v battery), has been converted to PSA 9vDC Spec. Please see all pics for condition.

Check out my other listings for more cool vintage, boutique, Analogman, Boss, and other guitar pedals! Any other pictures needed or questions please ask!
