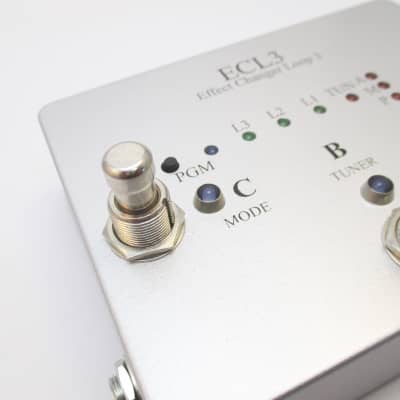

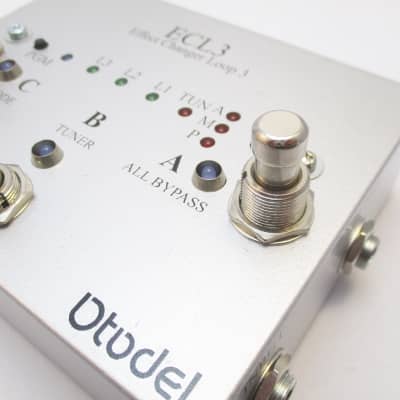

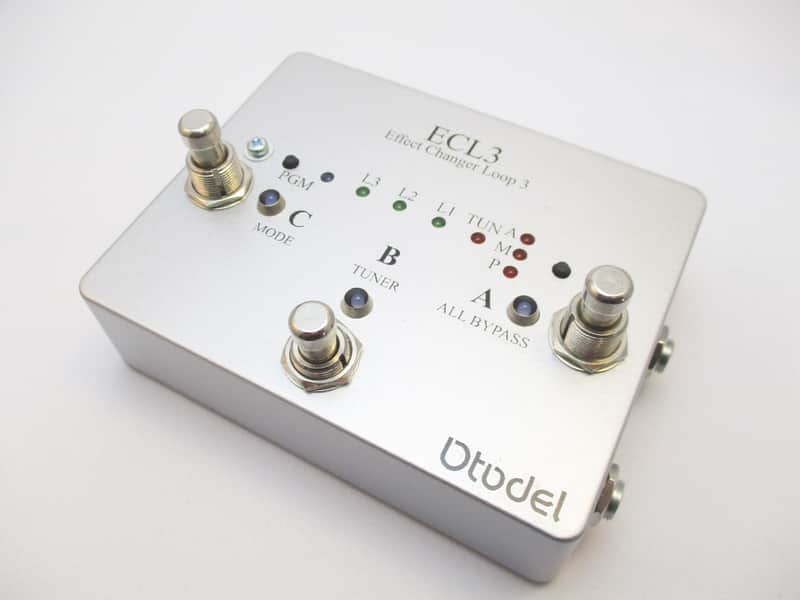

Otodel Effect Changer Loop 3 【ECL3】

Otodel, from Kanagawa, next of Tokyo, is manufacture of musical instruments, specialized for effector, power-supply and cables. High quality, affordable price and realized our dreams such as all our want.

OTODEL ECL3, Effect change has three different modes, making it easier and more flexible to switch between effector rigs.

Soft-touch for stress-free switching, The sound quality is also designed to be "Add nothing, reduce nothing” sound with the use of relay-switch.

Long press of the A switch to all bypass, long press of the B switch to tuner, and long press of the C switch to mode switching. (You can also disable the long press function.)

Also, You can set the switching timing.

It's so easy to the operation of BANK-UP and DOWN in Program mode and how to program them.

The height of the B switch is lower than that of the A and C switches, so that You can reduce the error caused by misstomping.

The current bank, mode, and other setting data are automatically saved, and when the power is turned on again, this device start up with the same settings as before turning off the power.

What is the switchover timing setting...?
The moment you step on the switch (press change mode)
When released (release change mode)
You can set the timing for switching by operating the switch.

Also, Otodel ECL3 has convenient "Release change mode". This is a one kind of kill switch for your main effect rig. Effect rigs stay off while you are pressing footswitch, but you release it, go back to your effect rig. You can also use this system for channel selector.

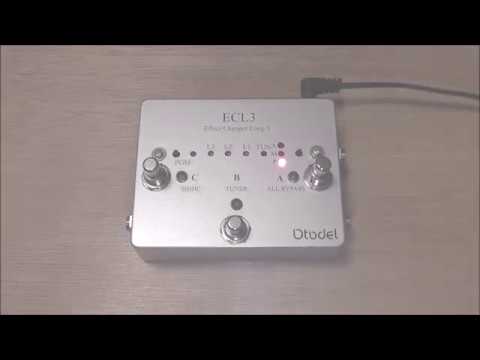

Feature video:

【Specs】
Numbers of loops：３
Numbers of banks：５
Numbers of patches：15（3 programs × 5 banks）
Numbers of modes：３（AUTO、MANUAL、PROGRAM）
Jacks：INPUT、OUTPUT、SEND1～3、RETURN1～3、TUNEROUT、DC power supply.
Switches： A~C  Main-switch, Program Switch and Mode switch
Power supply：9VDC（Center negative）
Current : 150mA（Recommended adapter over 200mA）
Size ：120(w) x 90(d) x 35(h) mm  without bump
Weight : 400g
Contents：ECL3 (This Device),This manual and Warranty (Valid only in Japan.)
