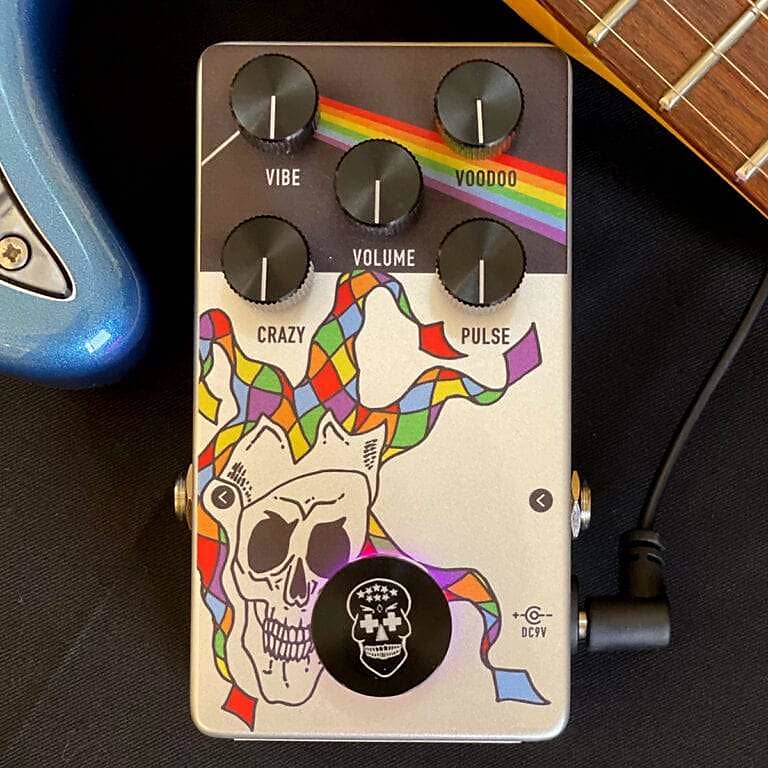

Flattley Guitar Pedals Crazy Diamond Univibe Silver Series

The “Crazy Diamond” is a “univibe” phaser style effect pedal using four optically coupled stages to create a moving comb filter response with plenty of variation. The optical modulation source speed, depth and static conditions can be controlled along with feedback around the phase shift network that can make the comb filter response more resonant.

The purple halo light ring installed diffuses the light when playing live, avoiding being blinded by the standard LEDs just as you are about to go into that all important solo thus giving a larger area to see where the pedal is located easily on the pedal board on darkened stages. The addition of the large aluminium foot topper gives you more real estate for contact when switching the pedal on and off during quick changes when playing live.

All Flattley “Silver Range” pedals are hand processed in our Flattley paint shop. They are etch primed first to ensure that the primer bonds to the aluminium enclosure which also provides an anti-corrosive protection layer. Multiple coats of base coat primer applied, the silver base coat colour is then applied and topped off with several coats of lacquer. Once the lacquer is hardened, it is then hand polished to achieve the smooth deep lustre finish that is inherent in all Flattley Guitar and Bass effects pedals. The graphics designed in house by our graphics designer Phoebe Flattley are applied to “Silver Range” effects pedals by UV direct printing in our printing shop.

Additional Information

Volume: Controls the effect make up gain and volume of the effect.

Vibe: Controls the depth of modulation of phase shift. Min anti-clockwise and max clockwise.

Crazy: Controls the speed of modulation of phase shift, slow anti-clockwise and fast clockwise

Pulse: Controls the feedback around the phase shifting network. Min anti-clockwise and max clockwise (most resonant).

Voodoo: Controls the starting point of modulation, interacts with ‘Crazy’ and ‘Vibe controls. set 50% as a starting point.

Crazy Diamond comes in a 125B Enclosure (LxWxD):
119x64x40mm (including lid) (4.69 x 2.52 x 1.57 inch)

·
Standard negative centre, -9v dc tip power supply
unit/power brick required

·
No internal 9v dc battery function

·
15mm anodised aluminium control knobs

·
Purple halo light ring installed

·
This edition comes in silver and multi coloured
graphics.

All our pedals are handmade, hand wired, boutique custom guitar and bass
pedal effects manufactured in the UK using only the highest quality components ensuring
every aspect of our pedal’s build process results in a truly outstanding
product.
