KRELL EVO 402 REFERENCE AMPLIFIER

 Krell Evolution 402 (EVO 402), Solid State Amplifier

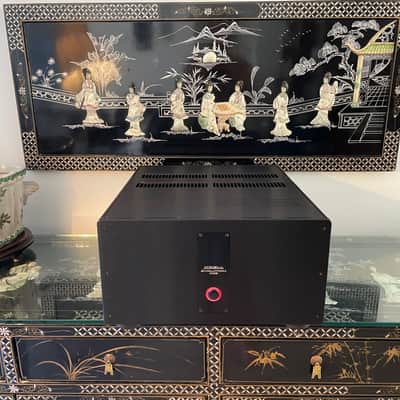

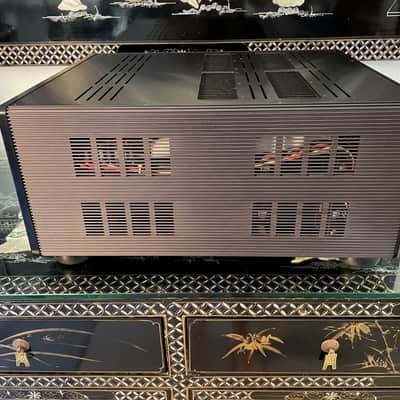

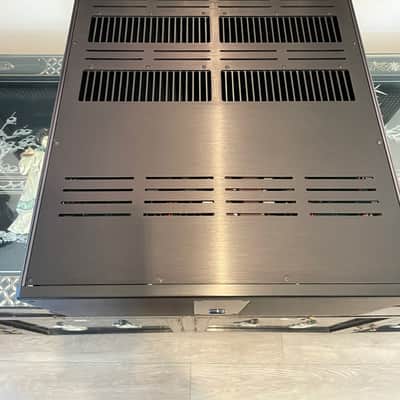

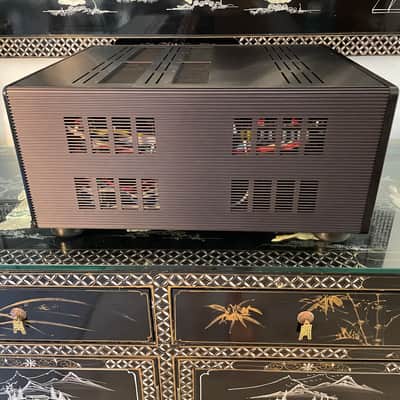

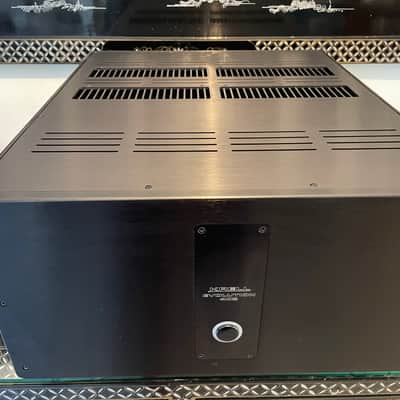

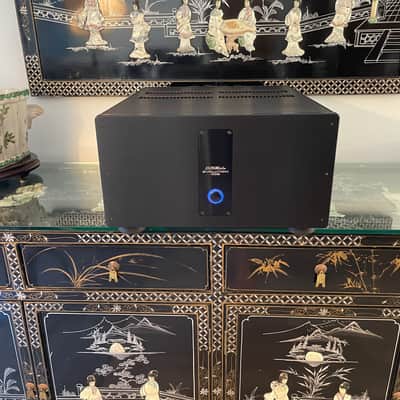

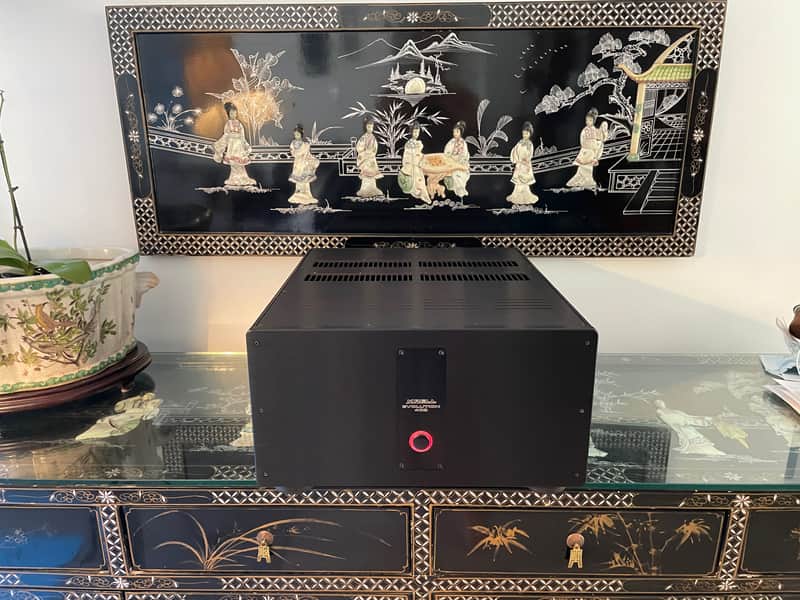

Up for sale is a mint (9/10) and highly sought after Krell Evolution 402 Amplifier, in stunning Black brushed aircraft aluminum. The meticulous case work is phenomenal and literally is a work of art from both a visual and engineering perspective. No stamped metal here but rather CNC milled from aluminum. This solid state amplifier is in as new condition as it gets for a used amplifier. There are no cosmetic or mechanical issues of any kind. No dust, fingerprints, scratches, marks, dings, etc. Please see accompanying detailed pictures. I absolutely love all my Krell amps throughout the years, however this amp has been the best sounding, most elegant, with tremendous soundstage, imaging and resolution. Comes complete in the manufacturers shipping box. The amplifier includes the power cord, and original paper work.

Note: Item comes from a smoke and pet free, one owner home and only ships to locations within the continental US. Local pickup and Demo can be arranged.  I am also posting this on other audio forums/sites as well as for sale locally,  so please check on availability prior to buying.

Payment:
Cash, Venmo, check, wire transfer or PayPal friends and family!
DISCOUNTS FOR CASH AND LOCAL PICK-UP! WE WILL ,FREE OF CHARGE HAND DELIVER THE AMP WITHIN 60 MILES OF LOS ANGELES!

The Evolution 402 was the flagship stereo amplifier in the Krell Evolution e Series and utilizes the same technological advances as in the larger Evolution monaural amplifiers. The Evolution 402 is an extremely powerful stereo amplifier with the distinct advantage of a smaller footprint. The Evolution 402 was the best of the D' Agostino designed amps at Krell !

The Evolution 402 is equipped with two 2,200 VA transformers and 188,000μF of capacitance. This power source is the backbone for the output of the Evolution 402. With this foundation, the Evolution 402 delivers 400 watts into 8 Ohms, 800 watts into 4 Ohms, and 1,600 watts into 2 Ohms with all both channels driven simultaneously.

Dimensions/Weight:
Dimensions: 17.25" (438mm) W by 9.75" (248mm) H by 22.05" (560mm) D.
Total Weight: 135 lbs (61.1kg).

Shipping Dimensions/Weight:
Boxed Dimensions: 27" x 23" x 17".
Boxed Weight: 150 lbs

Serial Number Of Unit:
18506040014

Retail Price:
$18,500.

Manufacturer:
 Krell Industries, Inc. 45 Connair Rd., Orange, CT 06477

Specifications

Frequency response
20 Hz to 20 kHz +0, -0.17 dB
<0.5 Hz to 125 kHz +0, -3 dB
Signal-to-noise ratio
>108 dB, wideband,unweighted, referred to full power output
>118 dB, "A"-weighted
Gain
25.4 dB
Total harmonic distortion
<0.02% at 1 kHz, at 400 W, 8 Ohms
<0.15% at 20 kHz, at 400 W, 8 Ohms
Input impedance
Single Ended: 100 kOhms
Balanced: 200 kOhms
CAST: 70 Ohms
Input sensitivity
Single Ended or Balanced: 3.04 V rms
CAST: 3.04 mA rms
Output power
400 W RMS at 8 Ohms both channels driven 800 W RMS at 4 Ohms both channels driven Output voltage
160 V peak-to-peak
57 V RMS
Output current
37 A peak
Slew rate
100 V/µs
Output Impedance
<0.055 Ohms at 20 Hz
<0.064 Ohms, 20 Hz to 20 kHz

Damping Factor (referred to 8 ohms)
>145 at 20 Hz, referred to 8 Ohms
>125, 20 Hz to 20 kHz, referred to 8 Ohms
Transformers
Two 2200 VA (4400VA total) for audio circuitry
One 10 VA for digital control circuitry
Power Supply Capacitance
188,000 µF
Power consumption
Standby: 2 W
(High-current standby: 260W
Idle: 390 W
Maximum: 3800 W
Heat Output
Stand-by: 7 BTU/hr.
(High-current standby: 890 BTU/hr.)
Idle: 1300 BTU/hr.
Maximum: 6400 BTU/hr.

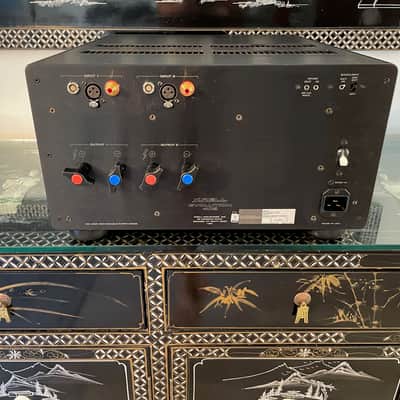

Inputs
2 single-ended via RCA connector
2 balanced via XLR connector
2 CAST via 4-pin bayonet connector
Outputs
2 pairs Krell binding posts
Dimensions
17.25 in. W x 9.75 in. H x 22.05 in. D
438 mm W x 248 mm H x 560 mm D
Weight
Shipped: 150 lb., 67.9 kg
Unit Only: 135 lb., 61.1 kg
