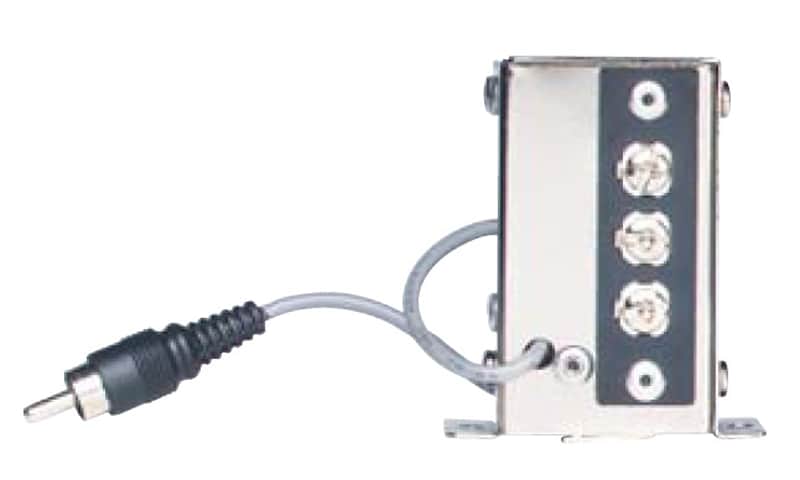

Bogen WMT1AS Input/Line-Matching Transformer for Speakers, 600 Ohm

The Bogen Model WMT1A transformer is designed especially for matching inputs from, or outputs to, a 600-ohm line.

As an input-matching transformer, it may be used to connect telephone systems to most Bogen public address amplifiers for telephone paging. It also functions as an output-matching transformer in feeding program material over a 600-ohm telephone line for "music-on-hold". It is compatible with any amplifier having a 25V output terminal.

The WMT1AS has all the features and functions of the WMT1A, but can also adapt speaker-level signals (25V/70V systems) to a level suitable for the AUX input of an amplifier.

Begen Communications WMT1AS Features:

• Hi-Z, 10k-ohm primary impedance
• Lo-Z, 600-ohm secondary impedance, balanced with centertap
• Matches high-to-low impedance or low-to-high impedance
• Adapts line-level signals to microphone inputs
• RCA connector for Hi-Z side
• Screw terminals for Lo-Z side
• Small steel enclosure with mounting ears allows easy mounting
• No wiring or soldering required
• May be used to provide a 600-ohm output from a Bogen mixer/pre-amplifier
• All features and functions of the WMT1A, but can also adapt speaker-level signals to the AUX input level of an amplifier
