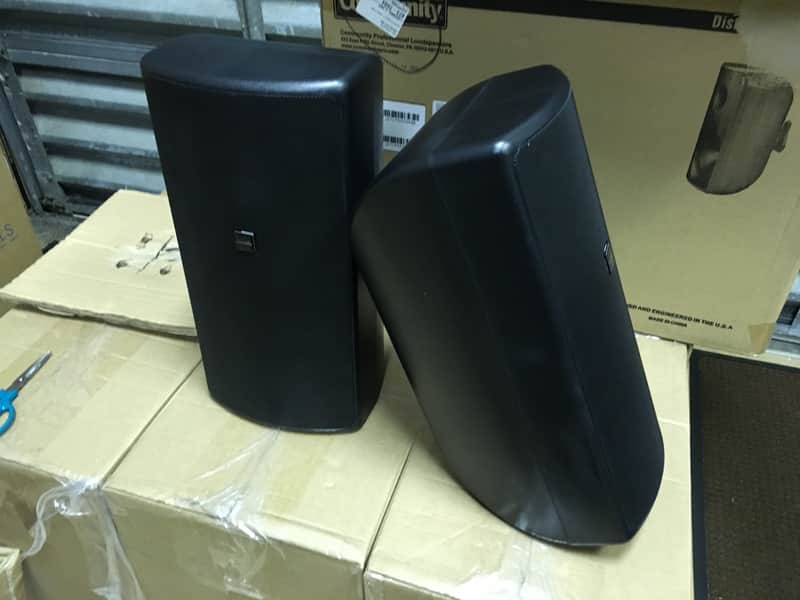

Community Professional Loudspeakers DS8-B Black

Community DS8-B
Distributed Design Series 8" 2-Way Coaxial Surface Mount Loudspeaker in Black Price is for the pair.
Supplied Accessories: Infin-A-Ball™ mounting bracket, Hex wrench, Flathead screwdriver

These are in pristine/mint condition like new.

Never installed.  Used to demo to potential customers only.

The Community Distributed Design Series DS8 is a full-range, compact, two-way system, ideal for installations where space is a premium. Easily outperforming loudspeakers of a larger size format, the DS8 provides high power handling, high sensitivity and realistic sound reproduction. With a modern architectural appearance that aesthetically merges well in most environments, combined with weather-resistant capability suitable for indirect outdoor use, the DS8 can be used in a wide variety of speech and music applications. It is equipped with a built-in autoformer, allowing the full loudspeaker output to be realized with 70V or 100V distribution lines. A convenient front-accessible power tap switch is hidden behind a rotatable logo. Installation is simple and flexible using the included Infin-A-Ball™ multi-angle wall mounting bracket which allows low profile mounting and precise positioning of the enclosure over a broad tiltswivel range.

Community DS8 Features:

• Modern architectural design
• Same components and voicing as the Distributed Design ceiling loudspeaker family
• High efficiency, high output, high intelligibility, low distortion
• Paintable enclosure constructed of high-impact ABS plastic to reduce resonances
• Front-accessible power tap switch for selectable 8 Ohm or 70V/100V operation
• Infin-A-Ball™ low profile mounting bracket included
• Weather-resistant construction with treated drivers, two-layer powder coated grilles and protected wiring ingress

Community DS8 Specifications:

• Loudspeaker Type: Two-way, full-range, coaxial surface mount loudspeaker, 8 Ohm or 70V/100V operation
• Operating Range: 60 Hz - 22 kHz
• Frequency Response: 70 Hz - 20 kHz (±4.3 dB)
• Max Input Ratings (8 Ohm): 150W continuous, 375W program, 35 volts RMS, 77 volts momentary peak
• Transformer Taps:
• 70V: 120W, 60W, 30W, 15W and low impedance
• 100V: 120W, 60W, 30W
• Sensitivity (1W/1m): 95 dB SPL (125 Hz to 12.5 kHz 1/3 octave bands); 96 dB SPL (250 Hz to 4 kHz speech range)
• Maximum Output: 117 dB SPL / 124 dB SPL (peak 8 ohm)
• Nominal Impedance: 8 Ohms
• Minimum Impedance: 6.5 Ohms @ 220 Hz
• Nominal Coverage: 115º conical (+46° / -46°, 500 Hz to 6 kHz)
• Axial Q / DI: 5.7 / 7.6, 500 Hz to 6 kHz
• Crossover Frequency: 1.3 kHz
• Recommended Signal Processing: 60 Hz, 24 dB/Oct high pass filter
• Drivers: LF 1x 8" cone; HF 1x 1.25" exit compression driver
• Driver Protection: Self-resetting solid state circuit breaker
• Input Connection: 4-screw Euroblock connector for two pair of 2-wire leads (uninterrupted whether the loudspeaker is connected or not) concealed in the base of the mounting bracket; and a 2-pin Euroblock connector on the loudspeaker enclosure
• Controls: Front-accessible wattage / low impedance selector switch hidden behind the rotatable logo
• Enclosure: ABS plastic, matte finish, paintable
• Finish: Black
• Mounting/Rigging Provisions: Infin-A-Ball™ mounting system with hidden internal wiring
• Grille: Dual-layer powder coated steel
• Safety Features: Built-in safety cable attachment loop
• Environmental: IP55 rated loudspeakers, IP56 rated connector cover, designed to Mil Spec 810
• Required Accessories: Electronic high pass filter
• Supplied Accessories: Infin-A-Ball™ mounting bracket, Hex wrench, Flathead screwdriver
• Optional Accessories: DS-WMP Wall Mount Plate
• Dimensions:
• Height: 18.5 inches (470 mm)
• Width: 9 inches (230 mm)
• Depth: 10.1 inches (257 mm)
• Weight (without bracket): 17.6 lbs (8 kg)
• Weight (with bracket): 18.2 lbs (8.3 kg)
