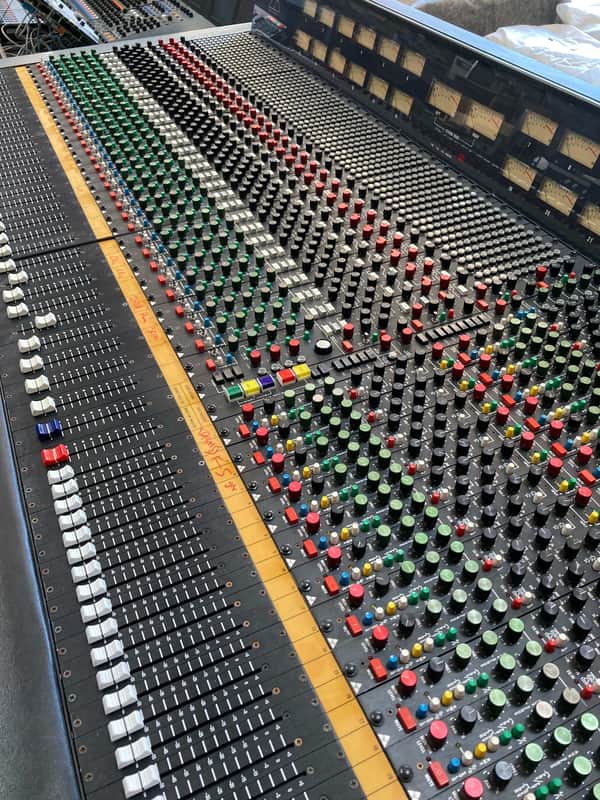

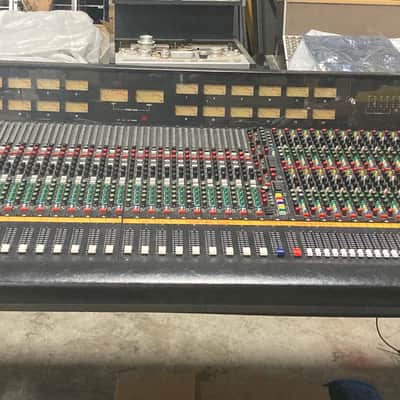

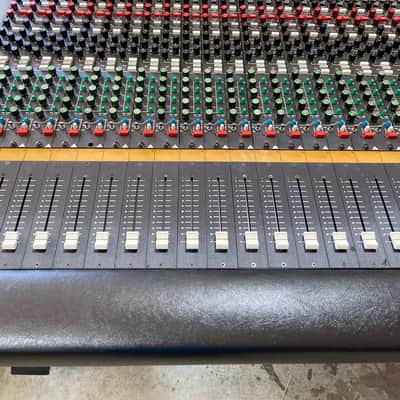

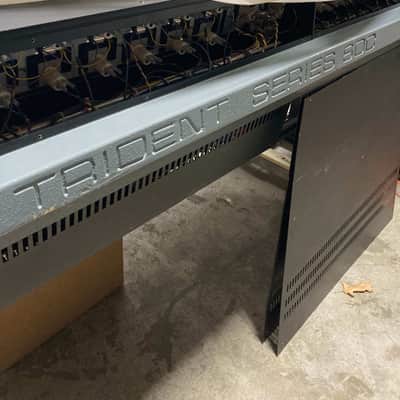

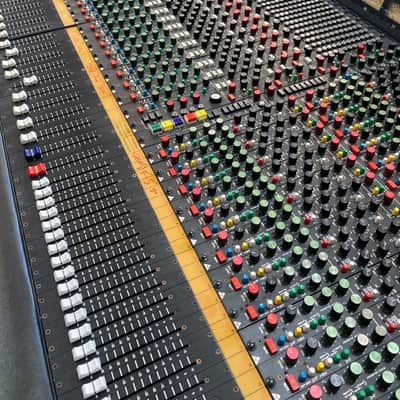

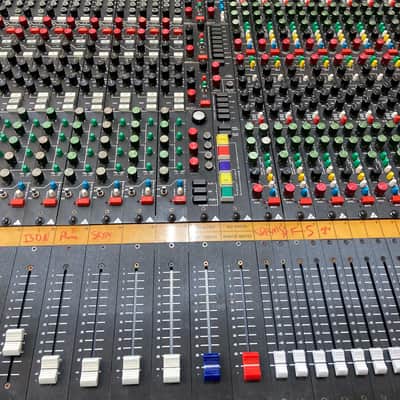

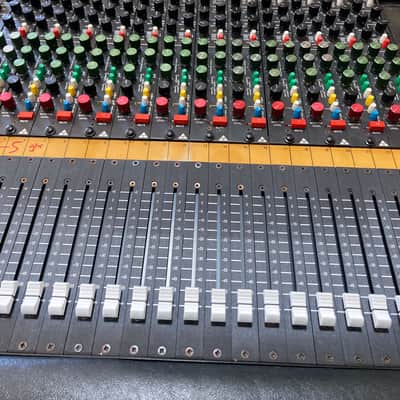

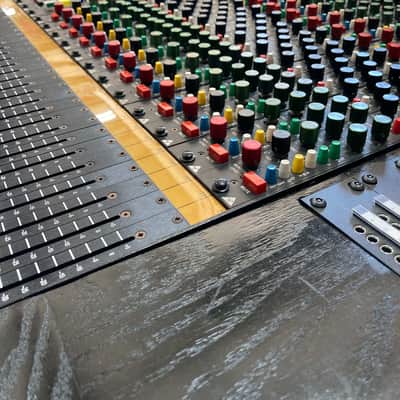

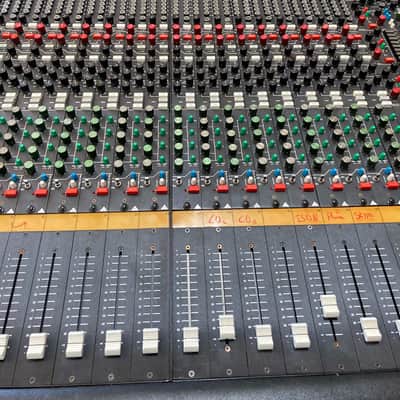

Trident Series 80C Console

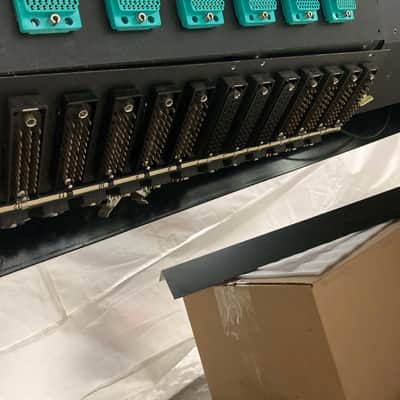

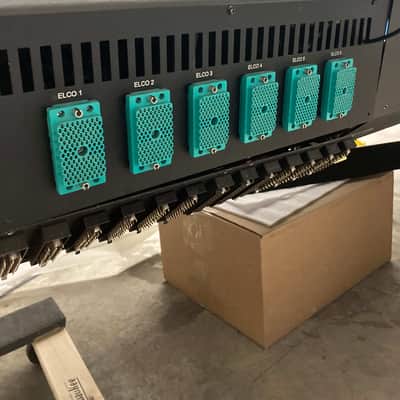

Trident 80C console in excellent condition, complete with wiring harnesses.

Specs:

32 channel, 24 buss, 4 FX sends, 5 Aux sends.

Dimensions:

100" W x 45" D x 42" H

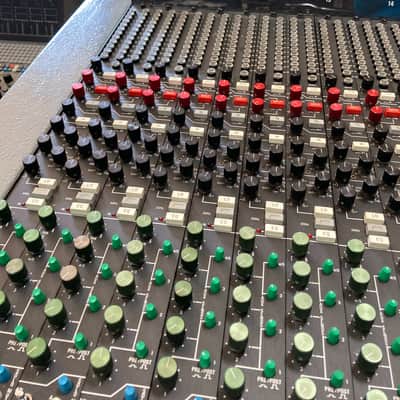

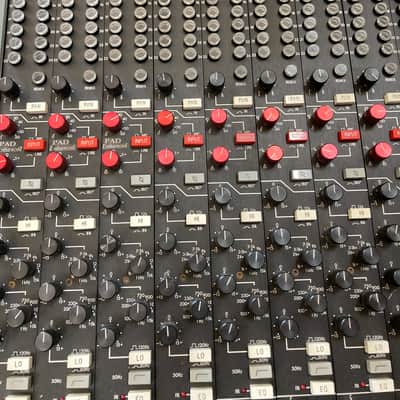

Channel Strip:

• Mic/Line switch
• Mic: 0-60 dB gain
• Line: -10 to +10 dB gain
• Phase switch

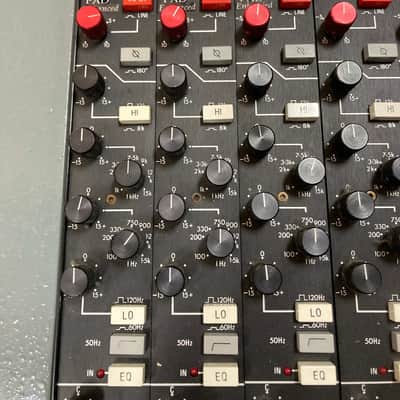

• High shelf: 8 or 12 kHz: -15 to + 15 dB
• High frequencies: 1, 2, 3.3, 7.5, 9, 12, 15 kHz: -15 to + 15 dB
• Low frequencies: 100, 200, 330, 750, 900, 1200, 1500 Hz: -15 to + 15 dB
• Low shelf: 60 or 120 Hz: -15 to + 15 dB
• EQ In/Out
• AFL/PFL switch

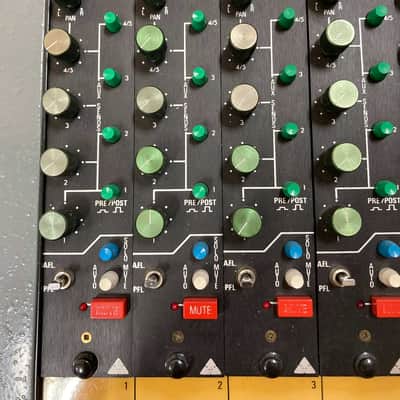

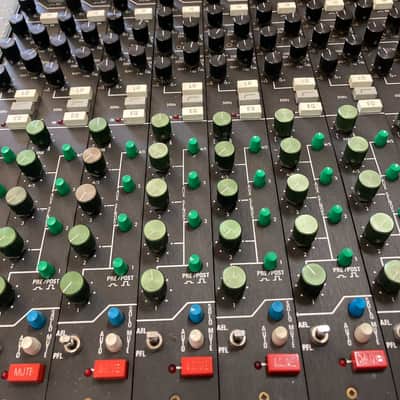

• 5 auxes; ( 3 mono, 1 stereo)
• Pre/Post fader switch
• Solo, Auto-Mute, Mute Switching

Echo and Remix Master module:

• 4 echo returns, each with Pan, Level, Monitor, Aux 4/5, AFL/PFL, Mute
• Fixed 50 Hz & 10 kHz; -15 to + 15 dB
• Slate, Aux, Studio level pots and switches
• Aux select : 1, 2, 3, 4/5

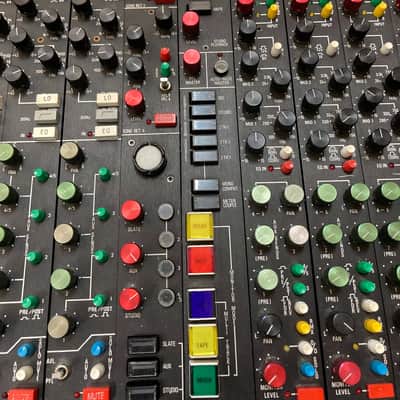

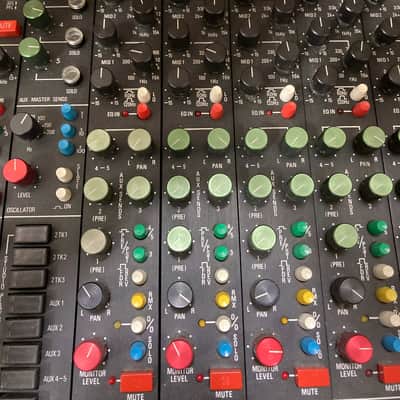

Aux and Monitor Master module:

• 5 Aux Master sends with Level pot
• Oscillator; 20, 50, 70, 100, 150 Hz; (x1, x10, x100 switching); Level Pot; Slate
• Studio Playback; 2Trk 1, 2, & 3; Aux 1 to 5; Monitor, Mute, PFL Master, Auto-Mute Master, Level pot
• Control room Source: 2 Trk 1, 2, 3; Mono Compatible, Meter couple
• Monitor Mode, Rem0069, Mute, O/dub, Tape, Mixer selects

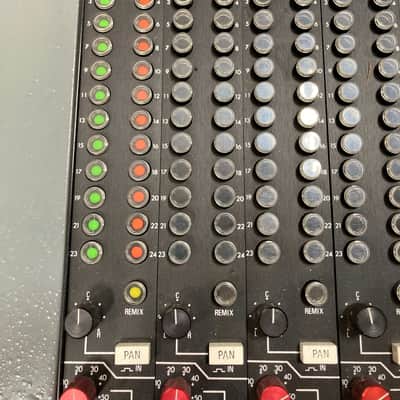

Monitor Channel Strip:

• Input A, B A &B with level pot
• High shelf: 8 or 12 kHz: -15 to + 15 dB
• High frequencies: 1, 2, 3.3, 7.5, 9, 12, 15 kHz: -15 to + 15 dB
• Low frequencies: 100, 200, 330, 750, 900, 1200, 1500 Hz: -15 to + 15 dB
• Low shelf: 60 or 120 Hz: -15 to + 15 dB
• Aux section
• Level pots 1 & 2 (both Pre), 3, 4/5, (both pre or post)
• Pan
• Remix, O/D, Solo, Mute switches
• Monitor Level pot

*Crating and shipping available*
