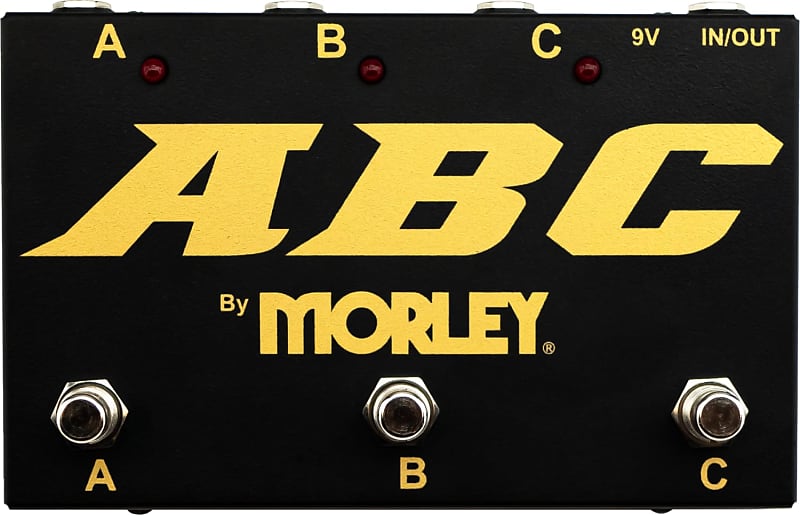

The Morley ABC adds an extra channel to their iconic ABY pedal. This extra channel adds to it’s versatility and is the perfect tool for multi-instrumentalists and those who like to use multiple amps at the same time. You can route one input to three outputs or reverse it and route three inputs to one output. This makes switching between instruments or amplifiers easy. It’s also completely passive so it doesn’t need a power source to function. Only the LED’s require power, which is great for conserving battery life.

Product Features

• Flexible routing: route one input to three outputs or reverse it and route three inputs to one output.
• Bypass switches for each channel
• Handy LEDs let you know which channels are active
• True Bypass
• Passive design, can be used without a power source. Only the LEDs require power.
• Powered by a standard 9V supply or 9V battery
• Robust Design built with Cold Rolled Steel
• 1 Year Warranty Please keep your purchase receipt
• NOT intended for use on powered speaker lines

Attributes

• Color: Black

Technical Specifications

• Effects: Utility & Signal Router
• Processing Type: Analog
• Outputs: 3 x 1/4"
• Inputs: 1 x 1/4"
• Features: Battery-Powered
• Dimensions: 2" H x 6.63" W x 4.38" D
• Batteries: 1 x 9V
• Power Usage: 2mA
• Controls: Passive
