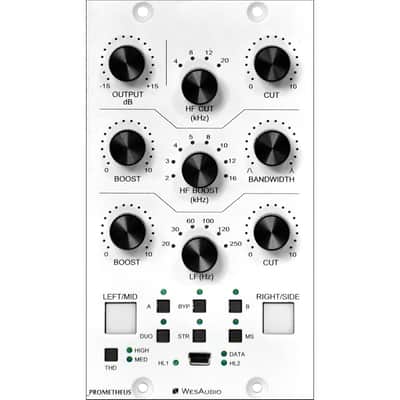

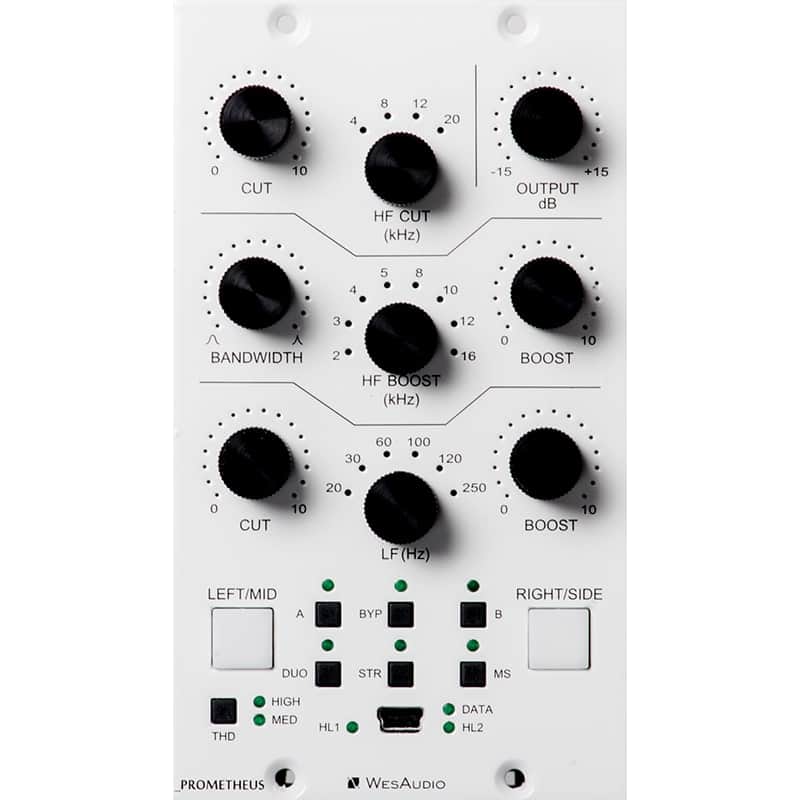

WesAudio PROMETHEUS Passive EQ (500 Series)

_PROMETHEUS is fully analog passive EQ with +24dBu of headroom. It features Pultec-style warm sound with a lot of innovative improvements. Its modern approach to design allows instant recall of your classic vibe through very flexible plugin available in most common formats. _PROMETHEUS as all ng500 products, integrates with your DAW environment via front panel USB socket or _TITAN chassis.

INNOVATIVE DESGIN with fully ANALOG CIRCUIT

_PROMETHEUS is fully analog equalizer with +24 dBu of headroom.

Passive EQ

• Low section with boost and cut, frequencies: 20, 30, 60, 100, 120, 250 Hz.
• High boost section with following frequencies - 2, 3, 4, 5, 8, 10, 12, 16 kHz.
• High cut section with following frequencies - 4, 8, 12, 20 kHz.

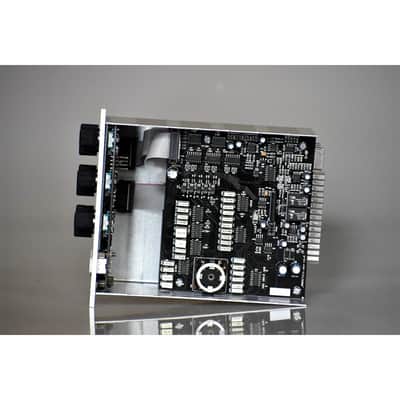

PASSIVE DESIGN based on ANALOG inductor!

STEREO / DUAL MONO / MID-SIDE operation modes. _PROMETHEUS can work in 3 different modes, including MS, which makes it perfect solution for multiple applications!

OUTPUT CONTROL. POST-EQ OUTPUT control for better flexibility!

HARDWARE A/B. Even using _PROMETHEUS as pure analog signal processor you can easily switch between two parallel settings with a magic of a simple button.

THD - ADD COLOR TO YOUR MIXES. THD stands for "Total harmonic distortion" and it allows to saturate your signal with beautiful analog color.

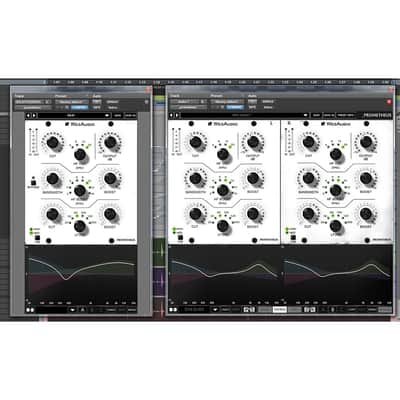

FLEXIBLE DAW / LIVE PLUG-IN control for instant recall.

• Stereo plugin which handles all modes of operation - Stereo/Dual Mono/Mid-Side
• Mono plugin where two separate instances can connect to same hardware managing each channel separately
• IN/OUT metering with clip detection
• Plugin comes in AAX/AAX DSP/VST3/VST2/AU

Features Summary

• +24dBu of headroom
• Stereo / Dual mono / Mid/Side operation mode
• Passive equalizer (Pultec-style) design based on inductors
• Low frequency boost/cut - 20, 30, 60, 100, 120, 250 Hz.
• High frequency boost - 2, 3, 4, 5, 8, 10, 12, 16 kHz.
• High frequency cut - 4, 8, 12, 20 KHZ.
• Analog inductor
• Proprietary THD implementation
• Flexible DAW/Live plug-in control for instant recall
• 6 touch sensitive encoders allows to record automation
• True bypass
• In and OUT metering with clip detection
• A/B compare feature

Specification

• Frequency response: 10Hz-150kHz (-2dB)
• THD+N < 0.01% (1kHz,0dBu)
• Input impedance: 10kohm
• Output impedance: <100ohm
• Max signal level: +24dBu
• Crosstalk: < -100dB
• THD (MID switch): 1%
• THD (HIGH switch): 2.5%
• Power consumption: 70mA per rail
• Dimensions: 76x133x158mm
• Warranty: 2 years
