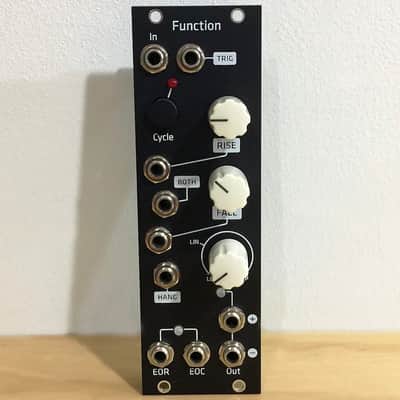

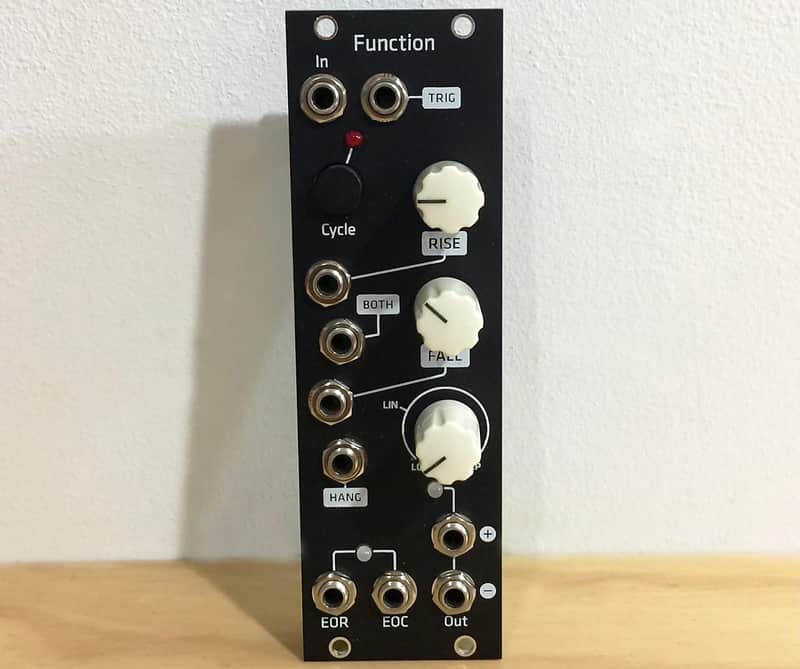

Make Noise Function (Grayscale - Black)

Make Noise Function is part of the MATHS family of control voltage utility modules. It is a small analog computer designed for solely musical purposes.

FEATURES:

• Generate a variety of linear, logarithmic, or exponential functions
• Functions as short as 2ms and as long as 25 minutes per cycle!
• Triggered Functions (Envelope)
• Continuous Functions (LFO)
• Invert and/ or Integrate (Lag, Slew, Portamento)
• Discrete Time Functions (S&H, T&H)
• LEDs indicate activity on all outputs
• End of Rise and End of Cycle Pulses facilitate programming of more complex functions
• All outputs capable of driving a passive 4 way mult without loading effects (no buffered mult needed here)
• Perfect for modulating the DPO and just about anything else

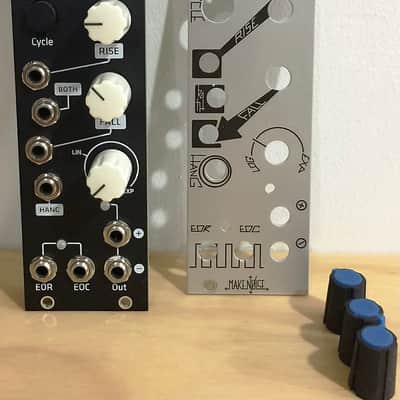

• Relatively rare Grayscale faceplate in black is installed (complement knobs installed as well - in picture)

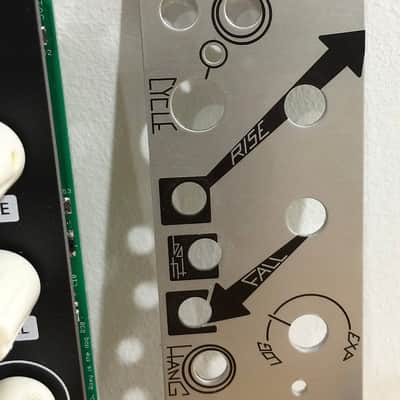

• Original faceplate and knobs are included (see pictures)

SPECIFICATIONS:

• Width: 8hp
• Max Depth: 24mm
• Power: 30mA@ +12V, 20mA @ -12V

Includes:
- Make Noise Function Module
- - Original faceplate (1) with Knob Caps (3)
- - Grayscale (Black) faceplate (1 - installed)
- Power cord

Contact for better shipping rate if out of U.S.
