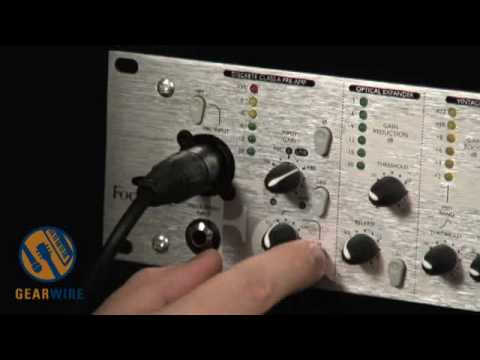

Focusrite Platinum VoiceMaster Pro Channel Strip

The VoiceMaster Pro is a single channel, Class A microphone preamplifier with latency-free monitoring that ensures direct and delay-free mix control. Tools such as the voice-optimized EQ, Vintage Harmonics and Tube Sound allow for further customization of the source.

The latency-free monitoring section contains a separate stereo monitoring circuit that allows the user to monitor the vocal, plus a FX loop such as reverb, and the mix being played back from the recording device while controlling the levels of all three sources. Additionally, the VoiceMaster Pro provides an instrument input in addition to the line and microphone inputs, and an insert send and return that is between the pre and the expander section. Routing flexibility is enhanced by the order in which processors can be used. Both the order of the Vintage Harmonics into Compressor chain and the Compressor into EQ chain can be reversed. A Tube Sound section is also included.

The opto compressor and expander both have new, lower noise circuitry. The de-esser circuitry is taken from the high-end ISA 430 and includes its side-chain "listen" function for ease of set up. The two rack space VoiceMaster Pro has a very flexible EQ section and multiple LED displays to help with making sure the signal path is optimized at all points.

Single channel Class A microphone preamplifier Clean, musical signal path Stereo latency-free monitoring Optical expander for removing ambient noise and headphone bleed, without signal pumping Vintage Harmonics Ensures the vocal sits prominently in the mix Octical compressor with the routing flexibility of a "post EQ" switch Tube Sound Valve emulation technology for adding "warmth" without the unpredictability of real tubes Voice optimized EQ Optical de-esser taken from the ISA430 Producer Pack with "side chain" listen Microphone, line and instrument input 48V phantom power for use with condenser microphones Comprehensive metering Number of Channels1 (2-channel mix and FX monitoring) Inputs1 x XLR microphone (front and rear)
1 x 1/4" TS phone instrument (front panel)
1 x 1/4" TS line1 x 1/4" TS phone insert return
2 x 1/4" TS FX return
2 x 1/4" TS phone external monitor Outputs1 x XLR main
1 x XLR pre de-esser
1 x 1/4" TS phone main
1 x 1/4" TS phone insert send
1 x 1/4" phone FX send
2 x 1/4" TS phone external monitor Frequency Response0dB down at 10Hz, -2dB down at 200kHz, at 0dB minimum gain (microphone input) NoiseEIN = 128dB measured at 60dB of gain with 150 Ohm terminating impedance and 20Hz/22KHz bandpass filter (microphone input)Preamp
Gain Range0dB to 60dB continuously variable Maximum OutputNot specified by manufacturerInput Impedance1.4k Ohms from 10Hz to 200KHz Phantom PowerYesCompressor
Threshold Range-15dBfs (7dBu) to -40dBfs (-18dBu)Ratio2.5:1 or 6:1 Attack Time0.5mS or 5mS Release Time100 mS to 1 S and after that "Auto" release, program dependent SlopeNot specified by manufacturerSidechainNoEqualizer
Filter TypeHigh pass filter
Shelving and Peak voice optimized EQFrequency BandsFilter: Continuously variable from 30Hz to 400Hz

Breath: 10 or 16kHz (shelving)
Mid: 1.3kHz (peak)
Absence: 3.9kHz (peak)
Warmth: 120Hz to 600Hz (peak)

BandwidthMid: 0.5 or 2
Absence: 3.5
Warmth: 0.5 or 2Range (Boost/Cut)Filter: 18dB per octave 3-pole

Breath: +/-8dB
Mid: +8 to -12dB
Absence: 0dB to -10dB
Warmth: +8 to -12dB

Light Indication
Threshold RangeNot applicableRatioNot applicableAttack TimeNot applicableDe-Esser
Threshold Range-10dBfs (+12dBu) to -40dBfs (-18dBu) Frequency Range2.2kHz to 10kHz Gate
Gate ThresholdNot applicableGate RateNot applicablePhysical
Dimensions (WxDxH)19" x 7" x 3 1/2"Weight11 lbs
