Intellijel TPS80W

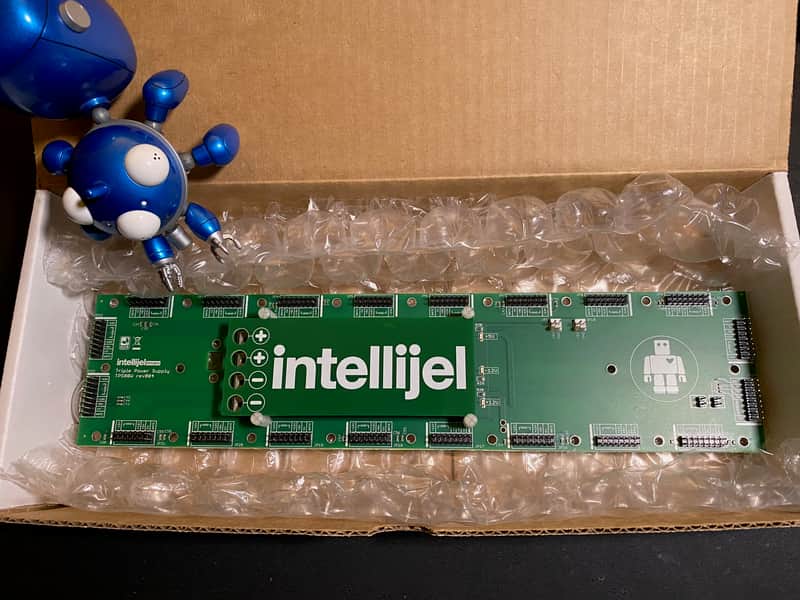

Intellijel’s TPS80W Triple Power Supply (Type A) is an efficient, high power, low noise power system designed exclusively for use in a Eurorack modular setup. This power supply has been painstakingly constructed to offer an optimal amount of power to even the most advanced digital modules. The Type A designates the busboards all-vertical headers.
TPS80W Features- 80 Watt integrated switching power supply (Type A)
- All Vertical Headers on the Busboard
- Low impedance star distribution due to 4 layer PCB
- +12V output at 3A, -12V output at 3A, +5V output at 1.5A
- Triple 120° phased controller for low induced noise
- Output short circuit protection and foldback current limiting
- Output overvoltage protection from transient overshooting
- Soft start for controlled start up operation
- +/-1% output voltage accuracy
- Fits comfortably in an 84HP 3U case or 6U case and larger
- 34cm wide x 8cm tall and max height of 20mm
- Mounting holes can be used with 0.157" / 4mm PEM snaps for quick install
- Intellijel highly recommends powering the TPS80W with the MeanWell GS90A15-P1M 90W AC/DC PSU
