McIntosh C220 Tube Preamplifier

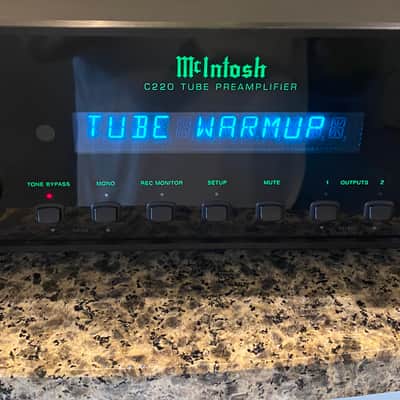

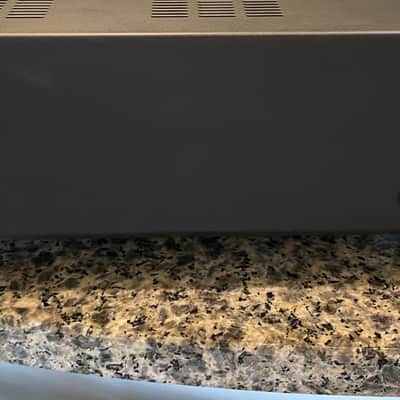

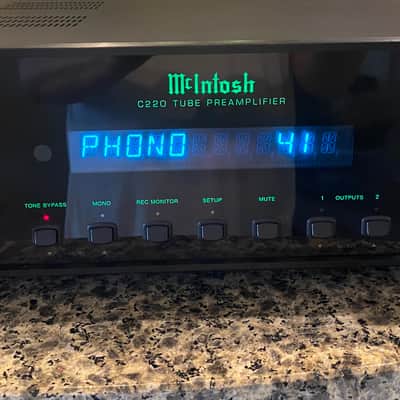

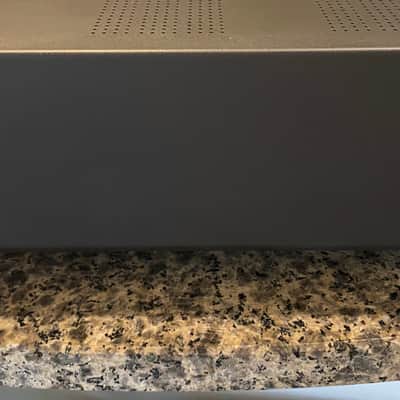

Selling my wonderful McIntosh C220 vacuum tube preamplifier. This is a fantastic tube preamp with an amazing MM phono preamp.  So transparent with large soundstage. The glass face is perfect and all lights work. Has one nick and a couple of scratches as illustrated by photos. Otherwise unit is completely functional, sounds great and comes from smoke-free environment.  Does not come with remote. Will be double-boxed and shipped with insurance. This is an excellent price so offers will not be considered. NOTE: This is a USED piece of equipment and I have described, to the best of my abilities, all know defects. Please view photos and ask questions before purchasing.

 There are lots of great reviews online. And all specs are easy to find also.

Mcintosh C220 Specifications

FREQUENCY RESPONSE

+0, -0.5dB from 20Hz to 20,000Hz

TOTAL HARMONIC DISTORTION

0.08% from 20Hz to 20,000Hz

MAIN OUTPUT

2.5V for rated input

MAXIMUM VOLTAGE OUTPUT

8V RMS Unbalanced 16V RMS Balanced

SENSITIVITY (for rated output)

High Level: 450mV Unbalanced, 900mV Balanced

Phono: 4.5mV

SIGNAL-TO-NOISE RATIO (A-Rated)

High Level, 90dB below rated output Phono: 80dB below 10mV input

INPUT IMPEDANCE

High Level: 22K ohms Phono: 47K ohms; 65pF

MAXIMUM INPUT SIGNAL

High Level: 5V Unbalanced, 10V Balanced

Phono: 50mV (@1,000Hz)

OUTPUT IMPEDANCE

250 ohms

VOLTAGE GAIN

High Level to Tape Output: 0dB High Level to Main Output: 15dB Phono to Main Output: 55dB

HEADPHONE OUTPUT IMPEDANCE

16 ohms to 250 ohms

TUBE COMPLIMENT

Phono Circuitry: 2-12AX7A High Level Circuitry: 2-12AX7A

OVERALL DIMENSIONS (H x W x D including front panel, knobs and cables)

6" (15.24cm) x 17-1/2" (44.45cm) x 18" (45.72cm)

WEIGHT

21 lbs. (9.59Kg) net, 37.5 lbs. (17.1Kg) in shipping carton

h

Complete Input Versatility

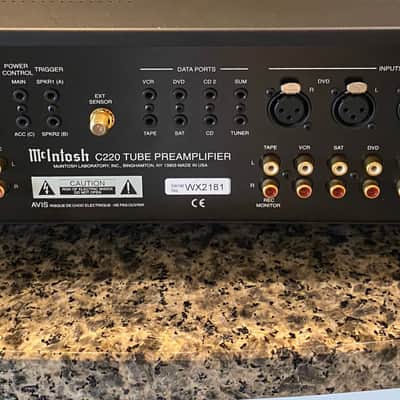

7 Unbalanced High-Level Inputs 2 Balanced (XLR) Inputs Moving Magnet Phono Input

Multi-Output Flexibility

3 Pairs of Unbalanced Outputs

2 Pairs Switched plus 1 Pair Fixed 1 Pair Balanced (XLR) Outputs

1/4" Headphone Jack

Front Panel Headphone Mute Mode Hand Held System Remote External Remote Sensor Jack Fiber Optic Panel Illumination

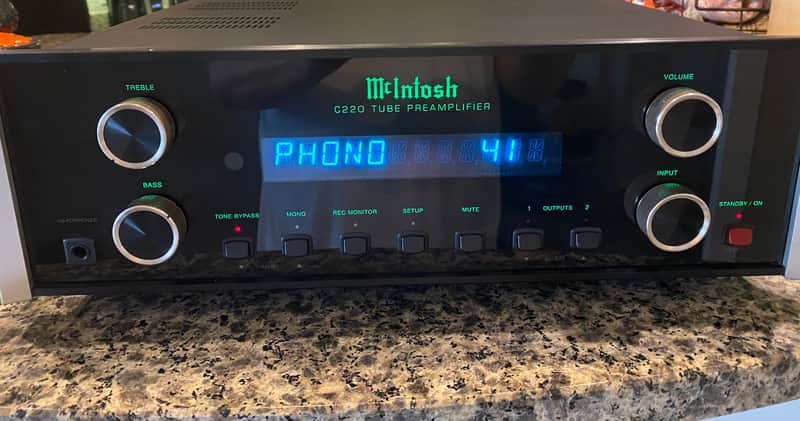

"The C-220 has the traditional McIntosh look with the black glass faceplate, chrome trim and a blue display. The display is illuminated by fiber optics, the volume control knob is linked to McIntosh’s advanced volume control system which keeps the channels volume matched within .1 dB. Electromagnetic switches in gas filled glass cylinders keep contacts clean and quiet.

The linestage had a smooth, accurate midrange that did a realistic job reproducing both male an female vocals. The soundstage was particularly wide and with good depth as well. Background noise was kept to a minimum and was definitely more in line with a high end preamplifier than an entry level product.

The C-220’s flexibility and performance allows it to work with a large variety of sources without sonic compromise. Anyone who appreciates a high performance tube preamplifier or who has always wanted to own a McIntosh should give the C-220 a close listen as it is a worthy performer." - Home Theater Review
