Threetom Modular Steve's MS-22 // compact MS-20 inspired HPF/LPF w/unique modulation matrix

$325
Free Shipping
2 in stock
Estimated ship date: December 10, 2021
This seller is open to offers

14-Day Return Policy

Enjoy peace of mind with your new gear

2-Day Shipping Available

Faster shipping, straight to your door

Shipped From
Teleos Modular
COLUMBIA, SC, United States
1,724
Sales
1000+
Joined Reverb
2015
Reverb Protection

Buy with Confidence – Reverb Protection has you covered

  • Live support from an expert team of musicians
  • Simple and straightforward returns
  • A safe community for finding the gear you want

About This Listing

PLEASE NOTE: parts are now in stock with 2 MS-22s ready to build. lead time is listed as 5 days just in case i get too busy to build but most likely your order will ship within 3 days.

Steve's MS-22 by Threetom Modular is a compact dual VCF inspired by the Korg MS-20 filter circuit. unlike its predecessor, this diminutive dynamo takes up only 4hp of space and every square centimeter is jam-packed with functionality. the design of the MS-22 is an LPF-into-HPF series setup and the top four knobs offer direct control over cutoff, spread (distance between the peak of the LPF and HPF), resonance (with ample room for self-oscillation) and gain (with wide range from full attenuation to gritty distortion) while the bottom knob is an attenuator for the CV signal at the FCV input. the true magic lies in the ACV, or Aux CV input which is accompanied by both an attenuator and a vertical row of switches next to the spread, resonance and gain knobs. flip any of the three-position switches up (positive) or down (negative) to link it to the ACV input, offering direct voltage control over any (or ALL!) of the filter's parameters! in addition, a fourth switch next to the cutoff knob links the cutoff of both filters in one of two ways (or off, in the middle position), enabling the MS-22 to function in BPF mode.

this Steve's MS-22 is a brand new build from a full kit. all SMD parts were machine placed with through-hole soldering and final assembly of the PCB sandwich completed here at Teleos Modular. the module has been fully calibrated and thoroughly tested to ensure optimal functionality. purchase includes 30-day warranty, ribbon cable and all original kit packaging materials if desired. also includes a pair of M2.5 or M3 screws with washers upon request.

PLEASE NOTE: knob styles vary from batch to batch and can include mini white Rogan-style rubberized knobs (as seen in main pic and on Mutable Instruments and Harvestman modules), Sifam/Selco-style knobs (second pic), classic powder-coated metal-type knobs (third pic),  Davies 1900h style-knobs and possibly other variants. the current batch comes with Sifam/Selco-style plastic knobs.

4hp // 45mm deep // 100mA +/-12V

Reviews of this Shop

1,724

Product Specs

ConditionBrand New (New)
Brand New items are sold by an authorized dealer or original builder and include all original packaging.learn more
Brand
  • Threetom Modular
Model
Categories

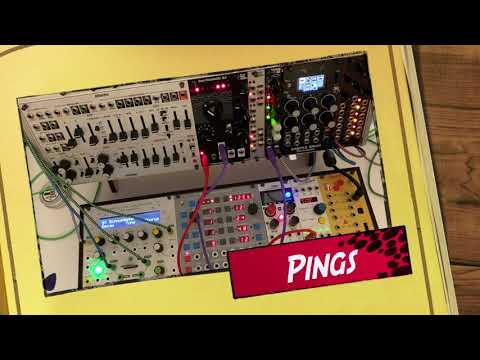

Watch a Video
