Fender Stratcocaster Greasebucket/Highway one Wiring Harness-Pure Tone-All Sprague Circuit-Grounding

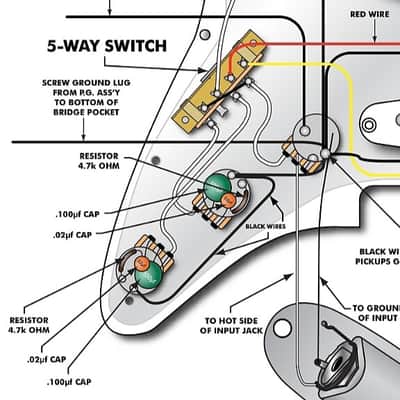

Greasebucket Tone Circuit

Here is what Fender says about the Greasebucket: “The Greasebucket tone circuit adds a new dimension to your tone, the effect is that when rolled down, the tone pot reduces the high frequencies, but does not add bass.”

The Greasebucket tone circuit was introduced in 2005 on several guitars in the Highway One series, as well as in various Custom Shop Stratocaster models. Your tone will get cleaner with this modification, not greasy and dirty.
The Greasebucket tone control is a cool way to roll off the highs and lows in your guitar while preventing your tone from getting muddy. This is especially helpful for creating sparkling clean tones, but it’s also useful for overdriven sounds.

There is a combination of various values of resistors and capacitor values that are part of this build. This type of band-pass filter only allows certain frequencies to pass through, while others are blocked. The standard tone circuit in the Strat is called a variable low-pass filter (aka a “treble-cut filter”), which allows only the low frequencies to pass through while the high frequencies get sent to ground via the tone cap.

Position and Pickup Combination:

1 Bridge pickup only
2 Bridge and middle pickup
3 Middle pickup alone
4 Middle and neck pickup
5 Neck Pickup alone

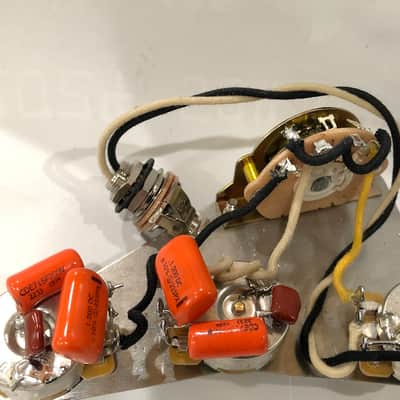

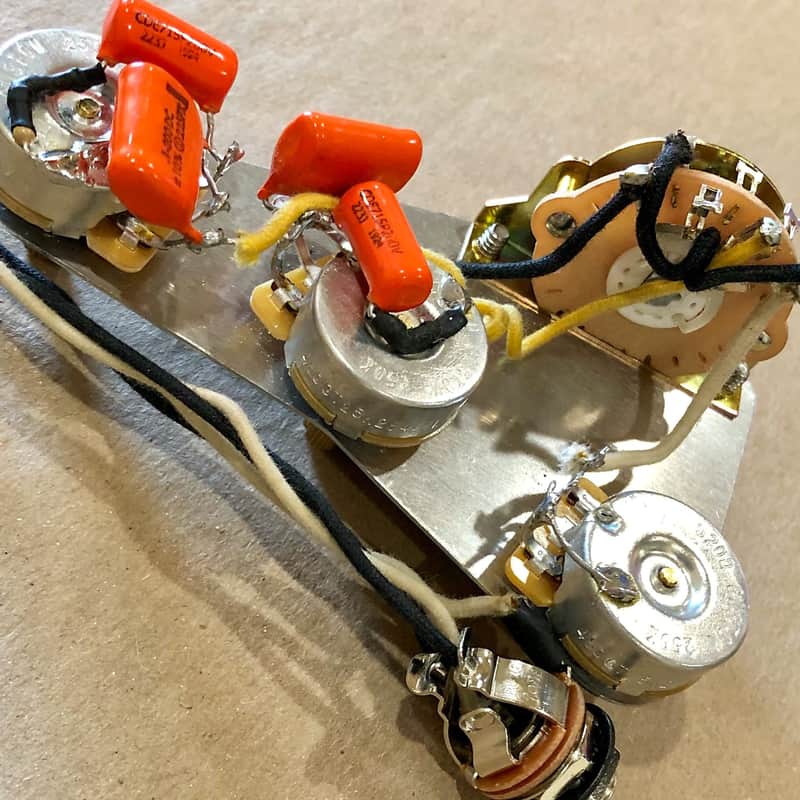

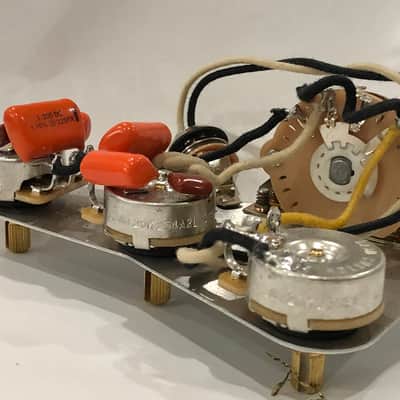

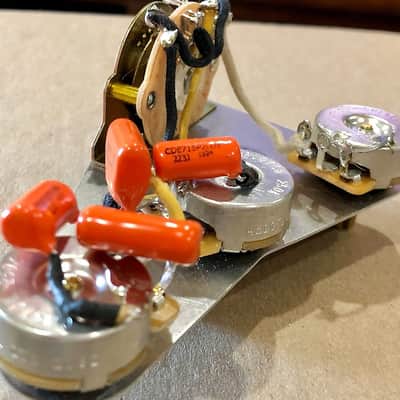

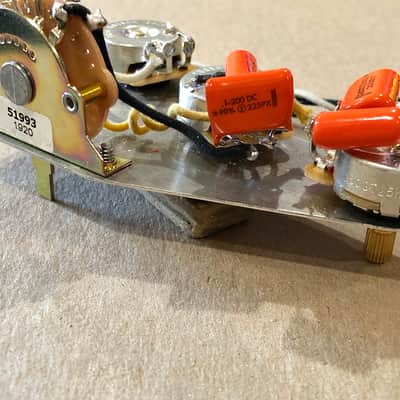

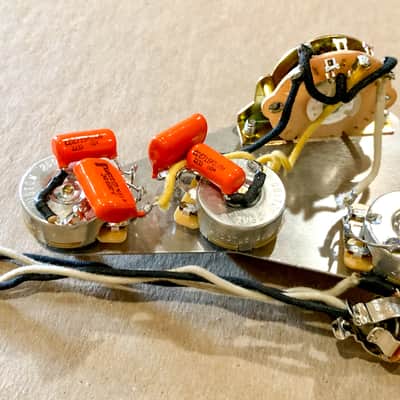

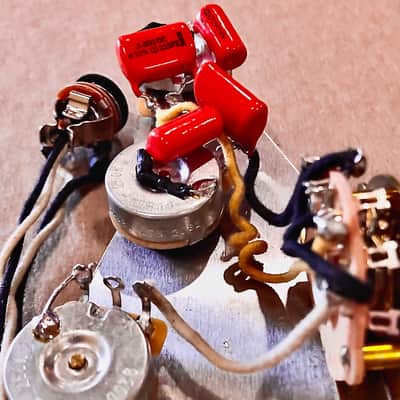

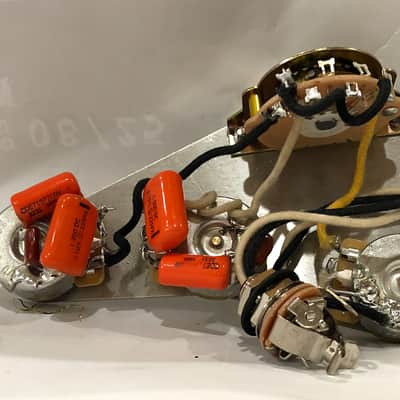

Components:

3- Custom 450G Series 250K Pots by CTS
With a10% audio taper, accompanied with a low rotational torque rating of 0.50-2.00 in.oz (compared to the industry standard 0.75-6.00 in.oz rating) to provide a buttery knob sweep
1 - Oak Grigsby 5 Way Switch

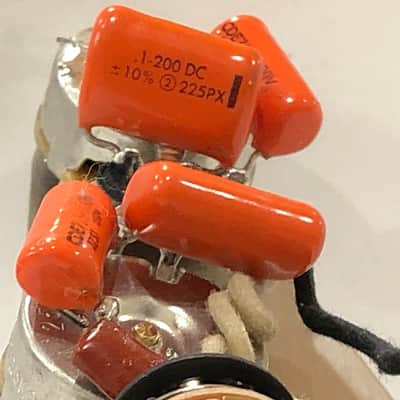

2 - Sprague/CDE .022µF Orange Drop Polypropylene Capacitors
2 -.1µF orange drop Capacitors
2- 4.7Ω resistors

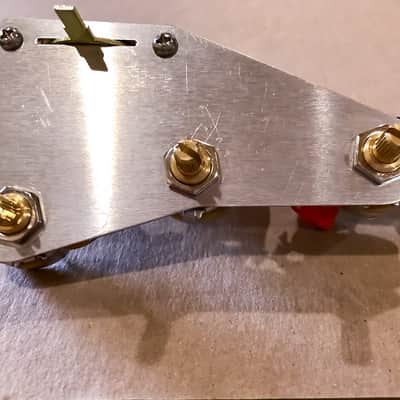

1- Fender Aluminum Plate
Fender used this rigid plate from 1954 thru 1959 with their single-ply pickguards. They are known to reduce RF and 60 cycle hum
1- Pure Tone Output Jack
Pure Tone has developed a high quality 1/4" two pole (mono) jack using a new patented design that improves upon and offers a more reliable connection than standard 1/4" jacks.
Wired with cotton push back wiring

Orders are packed and shipped within one working day. Prewired guitar electronic kits can take up to 5 working days from order to being dispatched during busy periods.

Terms of Sale

We assume by purchasing a wired or unwired Harness that you are well skilled at Soldering and have an advanced understanding of Guitar Circuits. We can not accept back Harnesses that have already been worked on for return. We suggest always getting a professional Guitar Tech to install the harness.
